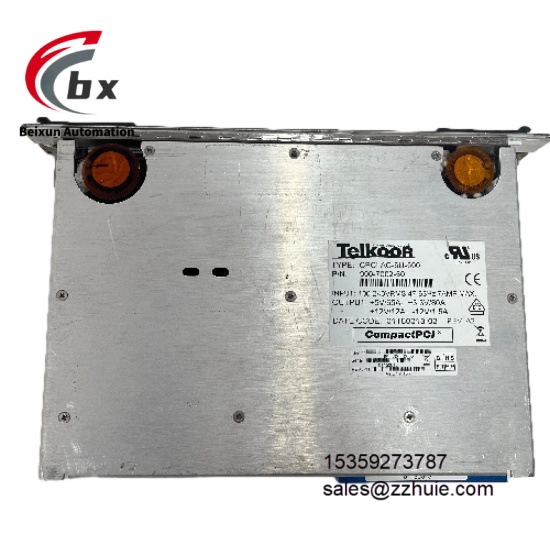

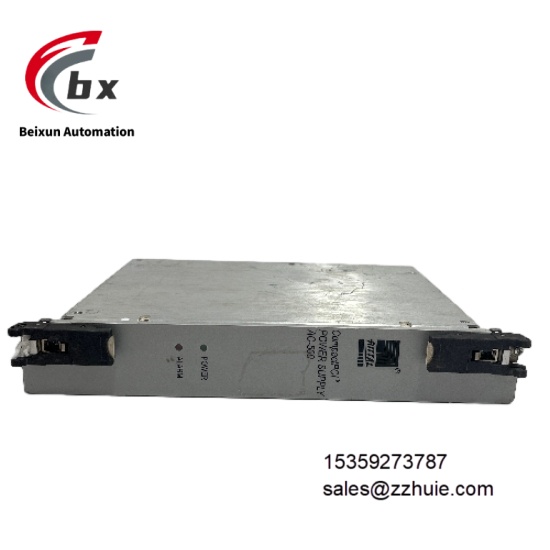

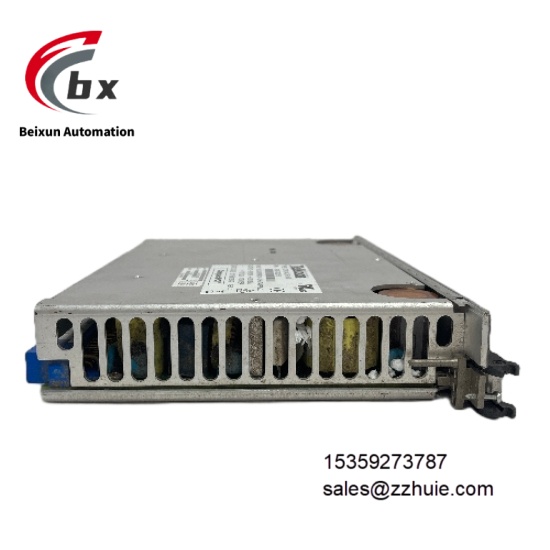

TeIKOOR CPCIAC-6U-500 900-7002-10 power module

TeIKOOR CPCIAC-6U-500 900-7002-10 power module

Specific Parameters

• Electrical Parameters
  • Input Voltage Range: 90-264V AC (47-63Hz)
  • Output Power: 500W continuous
  • Output Voltages: +5V DC (65A), +3.3V DC (80A), +12V DC (12A), -12V DC (1.5A)
  • Voltage Regulation: ±1% (load regulation), ±0.5% (line regulation)
  • Efficiency: 85% typical (230V AC input, full load)
  • Inrush Current: ≤60A (cold start, 230V AC)
  • Hold-Up Time: ≥16ms (full load, 230V AC input)
  • Isolation Voltage: 3000V AC (input-output, 1 minute)
  • Remote Monitoring: +5V PG signal, remote on/off control
• Environmental Parameters
  • Operating Temperature: -5°C to 70°C (derated to 80% power at 70°C)
  • Storage Temperature: -40°C to 85°C
  • Relative Humidity: 5%-95% (non-condensing)
  • Vibration Resistance: 5-500Hz, 5g peak-to-peak (IEC 60068-2-6)
  • Shock Resistance: 30g (11ms duration, IEC 60068-2-27)
  • EMC Compliance: Conducted emissions EN 55022 Class B, radiated emissions EN 55022 Class B
• Mechanical Parameters
  • Dimensions: 261.9mm×169.6mm×40.3mm (6U×8HP)
  • Mounting Method: Standard CompactPCI rack-mounted
  • Housing Material: Die-cast aluminum (black anodized finish)
  • Weight: Approximately 2.2kg
  • Connector Type: Positronic 47-pin high-density power connector
  • Indicators: Power status (green), fault alarm (red)

Product Performance

Adopting patented EDGE™ technology for efficient power conversion, it achieves 85% efficiency at 230V AC input, effectively reducing system energy consumption and heat dissipation. Supporting hot-swap operation and redundant configuration, it enables zero-downtime system maintenance with MTBF ≥500,000 hours (MIL-HDBK-217F standard).

Built-in intelligent protection circuits respond to overcurrent, overvoltage and other anomalies within 0.1ms, ensuring safety of load equipment. Through optimized PCB layout and shielding design, electromagnetic interference levels are below industry standards, suitable for medical, avionics and other EMI-sensitive scenarios.

Modular design supports flexible expansion, allowing parallel operation with other series power modules for load sharing and redundancy backup, meeting the stringent reliability requirements of industrial control systems.
