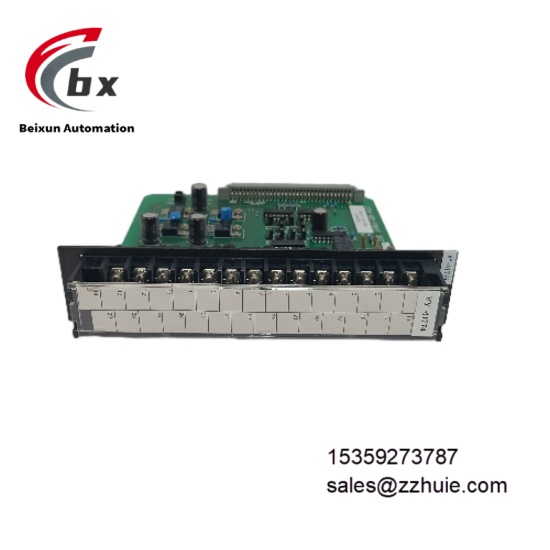

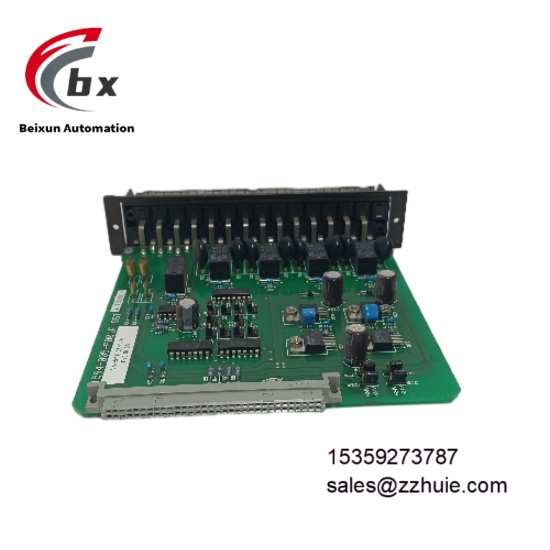

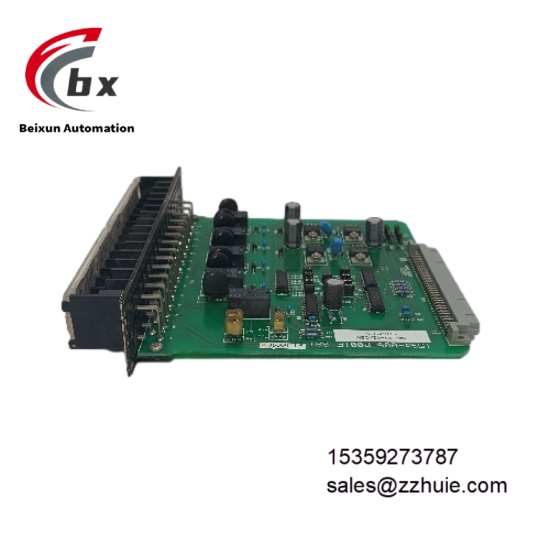

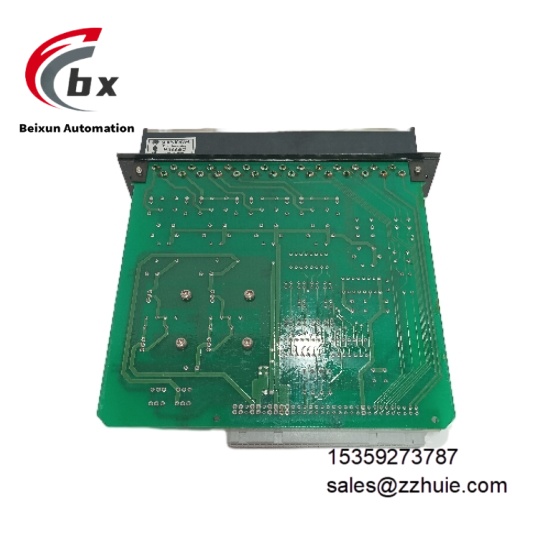

SHINKAWA VM-5Y1-02GEM 1594-005-P001F Multi output power module

SHINKAWA VM-5Y1-02GEM 1594-005-P001F Multi output power module

Specific Parameters

• Electrical ParametersInput Voltage: 100-240V AC, operating frequency 50/60HzOutput Voltage: 5V DC, 12V DC, 24V DC (three independent outputs)Output Power: Optional 10W, 24W, 48W specificationsProtection Functions: Overvoltage protection (110% rated voltage), overcurrent protection (120% rated current), short circuit protectionOutput Ripple: ≤50mV pk-pkAlarm Output: 1-channel power fault relay contact output (SPDT)Power Supply Method: Direct access to rack power bus or independent wiringElectrical Isolation: 2500Vrms isolation between input and output (complies with IEC standards)
• Environmental ParametersOperating Temperature: 0℃ to 65℃ (non-condensing environment)Storage Temperature: -20℃ to 85℃Relative Humidity: 5% to 95% (non-condensing)Protection Rating: IP20 (module itself)Vibration Resistance: Complies with IEC 60068-2-6 standard, 1g acceleration in 10-500Hz frequency rangeHeat Dissipation: Natural heat dissipation
• Mechanical ParametersOverall Dimensions: 44mm (W) × 177mm (H) × 250mm (rack slot compatible specification)Housing Material: Cold-rolled steel plate with anti-static coatingWeight: Approximately 0.8kgMounting Method: Dedicated power slot installation in VM-5H3/VM-5W1 rackStatus Indication: Front-panel LED indicators (power input, each output normal, fault)

Product Performance

Excellent power supply stability: 100-240V AC wide voltage input adapts to global industrial power grids; output ripple ≤50mV pk-pk and voltage regulation rate ≤0.5% ensure high-precision data acquisition of monitoring modules.

Comprehensive protection mechanism: Cuts off output within 10ms when overvoltage, overcurrent or short circuit faults occur, and triggers alarm signals simultaneously to avoid damage to downstream modules, meeting industrial-grade safe operation requirements.

Strong system integration: Accesses VM-5 series monitoring system without additional adapters; supports parallel installation of dual units to realize power redundancy with fault switching time ≤10ms, meeting the uninterrupted operation requirements of TSI systems.

Outstanding environmental adaptability: 0-65℃ wide temperature operating range covers industrial on-site temperature zones; natural heat dissipation design without fans reduces mechanical failure risks, with Mean Time Between Failures (MTBF) ≥5×10⁴ hours.
