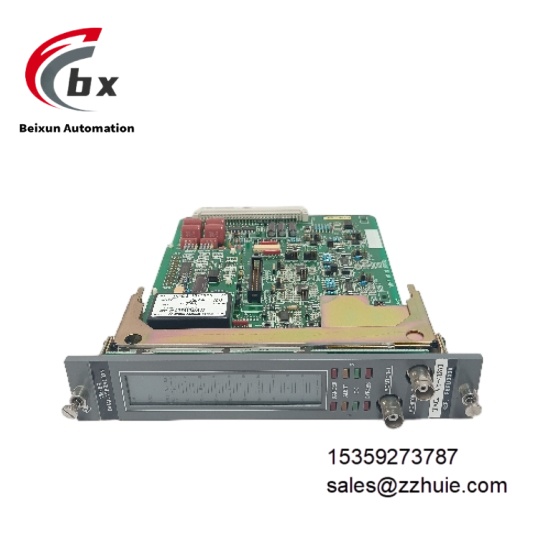

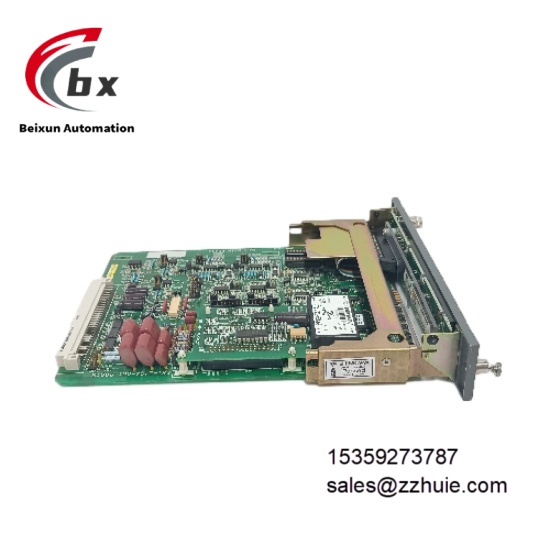

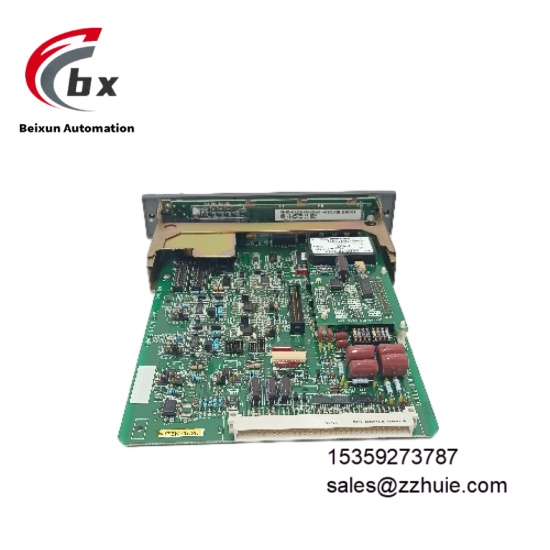

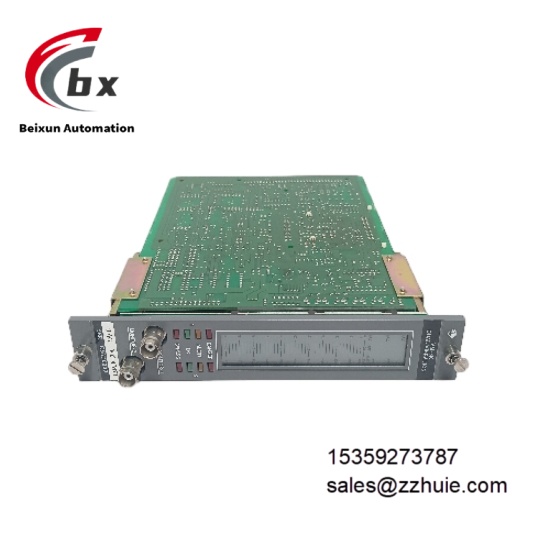

SHINKAWA VM-5K SST-2194-001-P001G Dual vibration monitor module

SHINKAWA VM-5K SST-2194-001-P001G Dual vibration monitor module

Specific Parameters

• Electrical ParametersInput Channels: Dual channels, compatible with FK, MS, VE, VC series vibration sensor signalsPower Supply Voltage: 24V DC / 120V AC, operating frequency 50/60HzMonitoring Accuracy: ±0.5% FS (at 25℃), ±2.0% FS (at 0-65℃)Frequency Range: 0.1Hz to 10kHzOutput Signals: 4-20mA analog output, RS485 digital outputAlarm Output: 8-channel relay contact output (including H-DANGER, H-ALERT, L-ALERT, L-DANGER levels)Communication Protocol: Natively supports Modbus RTU protocolElectrical Isolation: 2500Vrms isolation between input and output (complies with IEC standards)
• Environmental ParametersOperating Temperature: 0℃ to 65℃ (non-condensing environment)Storage Temperature: -20℃ to 85℃Relative Humidity: 5% to 95% (non-condensing)Protection Rating: IP20 (module itself)Vibration Resistance: Complies with IEC 60068-2-6 standard, 1g acceleration in 10-500Hz frequency rangeShock Resistance: Complies with IEC 60068-2-27 standard, 10g acceleration (11ms duration)
• Mechanical ParametersOverall Dimensions: 44mm (W) × 177mm (H) × 250mm (D) (rack-mount specification)Housing Material: Cold-rolled steel plate with anti-static coatingWeight: Approximately 1.8kgMounting Method: 19-inch standard rack mounting (compatible with 8-slot VM-5H3 or 10-slot VM-5W1 rack)Display Interface: 16-character LCD display, supporting parameter and status visualizationOperation Method: Front-panel button operation, supporting password permission management

Product Performance

Excellent monitoring accuracy: Monitoring error ≤±2.0% FS within the full operating temperature range; combined with 0.1Hz to 10kHz wide frequency coverage, it can accurately capture early vibration characteristics such as equipment imbalance, misalignment, and bearing wear. Fast response speed: Data sampling rate up to 1000Hz, alarm trigger delay ≤100ms, ensuring no missing fault signals.

Strong system compatibility: Supports multiple types of front-end equipment such as FK series eddy current sensors and VC series velocity sensors; can be directly connected to VM-5 series racks, PLC and DCS systems without additional signal converters. Outstanding reliability: Complies with API 670 industrial standard, Mean Time Between Failures (MTBF) ≥5×10⁴ hours, adapting to continuous industrial operation scenarios.

High operational convenience: Front-panel LCD display and button design enable full-process non-shutdown operation for parameter configuration and status checking; built-in data storage unit can save 1000 sets of historical alarm records, supporting export and analysis via Modbus protocol.
