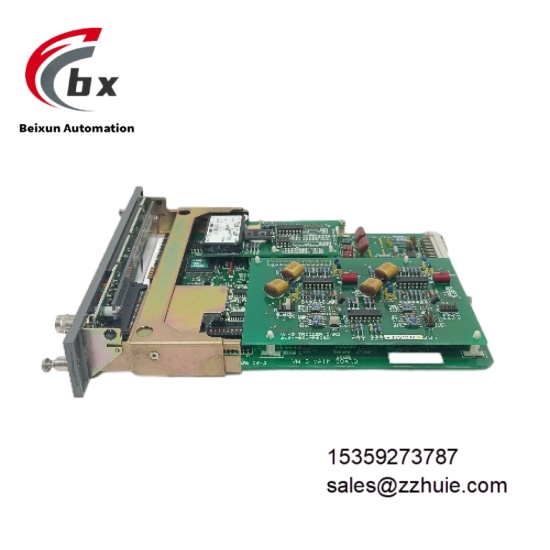

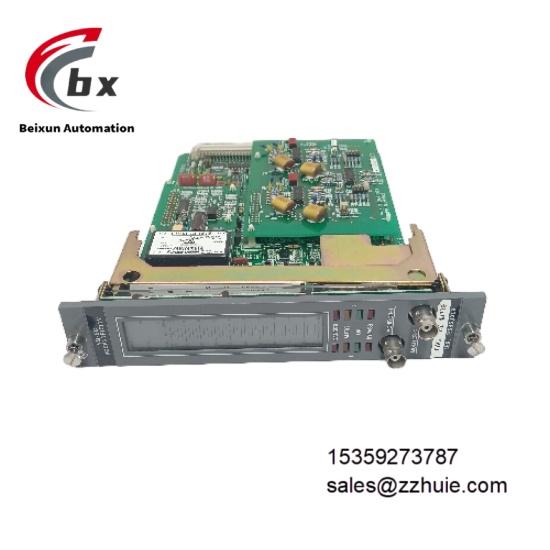

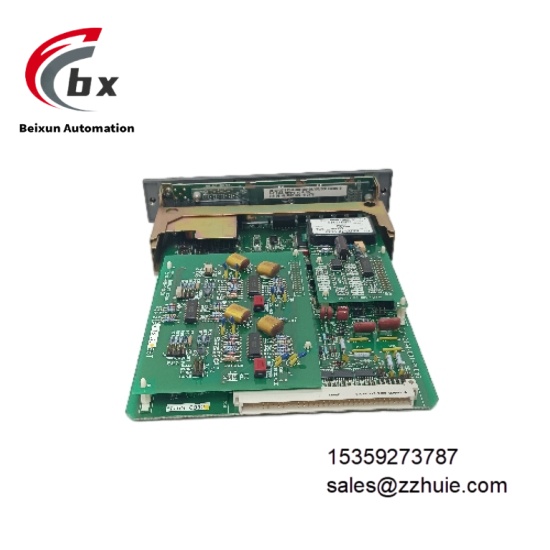

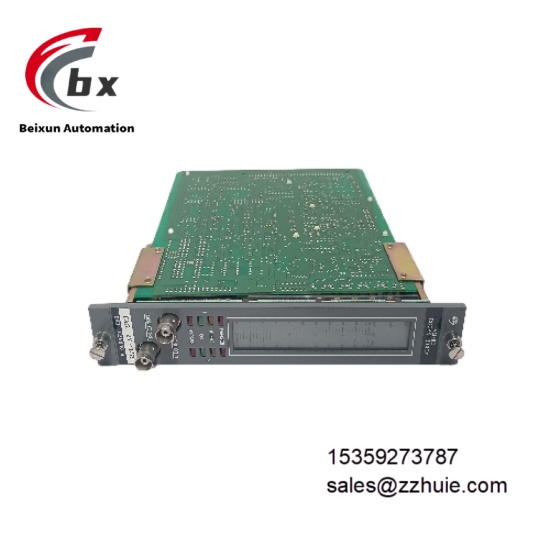

SHINKAWA VM-5C SST-2194-001-P001G Industrial grade eccentricity monitoring module

SHINKAWA VM-5C SST-2194-001-P001G Industrial grade eccentricity monitoring module

Specific Parameters

• Electrical ParametersInput Sensors: Compatible with FK series eddy current sensor signalsPower Supply Voltage: 24V DC / 120V AC, operating frequency 50/60HzMonitoring Accuracy: ±0.5% FS (at 25℃)Measuring Range: 0-500μm pk-pkOutput Signals: 1-5V DC (output impedance 100Ω), 4-20mA DC (maximum load 500Ω)Alarm Output: 4-channel relay contact output (including DANGER and ALERT levels)Communication Protocol: Natively supports Modbus RTU protocolElectrical Isolation: 2500Vrms isolation between input and output (complies with IEC standards)Self-Diagnosis Function: Real-time diagnosis of module failure, sensor disconnection, and power abnormality
• Environmental ParametersOperating Temperature: 0℃ to 65℃ (non-condensing environment)Storage Temperature: -20℃ to 85℃Relative Humidity: 5% to 95% (non-condensing)Protection Rating: IP20 (module itself)Vibration Resistance: Complies with IEC 60068-2-6 standard, 1g acceleration in 10-500Hz frequency rangeShock Resistance: Complies with IEC 60068-2-27 standard, 10g acceleration (11ms duration)
• Mechanical ParametersOverall Dimensions: 44mm (W) × 177mm (H) × 250mm (D) (rack-mount specification)Housing Material: Cold-rolled steel plate with anti-static coatingWeight: Approximately 1.5kgMounting Method: 19-inch standard rack mounting (compatible with VM-5H3 or VM-5W1 rack)Display Interface: 16-character LCD display with digital measurement value display and alarm status bar graphOperation Method: Front-panel button operation, supporting password permission management

Product Performance

Reliable monitoring accuracy: ±0.5% FS measurement accuracy combined with 0-500μm pk-pk range can accurately capture small changes in shaft eccentricity, meeting the dynamic monitoring needs of rotating equipment during startup and shutdown phases. Strong system compatibility: Supports access of FK series eddy current sensors; can directly link with VM-5 series racks, PLC and DCS systems with data transmission delay ≤100ms, without additional signal conversion modules.

Outstanding operational reliability: Built-in full-time self-diagnosis function can real-time monitor module and sensor abnormalities, with fault response time ≤50ms; complies with API 670 industrial standard, Mean Time Between Failures (MTBF) ≥5×10⁴ hours, adapting to continuous industrial operation scenarios. High operational convenience: Front-panel LCD display and button design enable full-process non-shutdown operation for parameter configuration and alarm query; supports storage and export of historical alarm data.

Excellent environmental adaptability: 0-65℃ operating temperature covers industrial on-site temperature range; vibration and shock resistance design complies with IEC standards, enabling stable operation in complex working conditions such as power plants and petrochemical industries.
