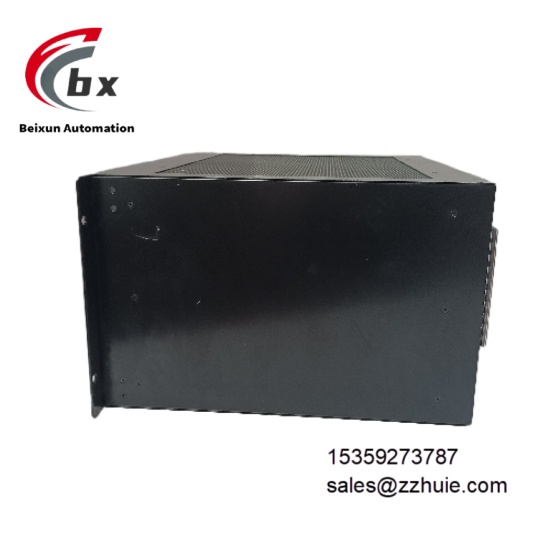

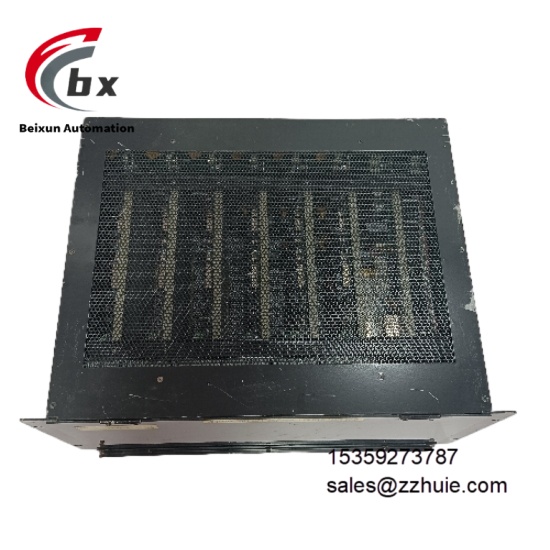

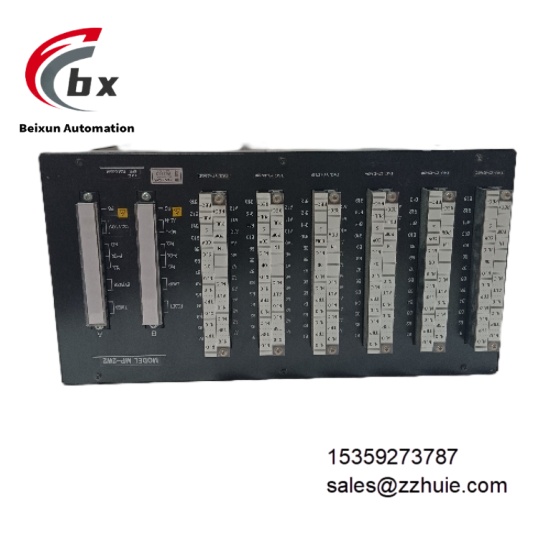

SHINKAWA MP-2W2 Differential inflation monitoring module

SHINKAWA MP-2W2 Differential inflation monitoring module

Specific Parameters

• Electrical ParametersInput Sensors: Compatible with FK/VK series eddy current sensors, CV/CA series displacement sensors, LVDT sensor signalsPower Supply Voltage: 24V DC (rack-mount type); 100-240V AC/24V DC dual input (standalone type)Monitoring Accuracy: ±1% FS (at 25℃)Measuring Range: Adapt to sensor range (0-50mm)Output Signals: 1-5V DC (output impedance 100Ω), 4-20mA DC (maximum load 500Ω)Alarm Output: 4-channel relay contact output (configurable for DANGER and ALERT levels)Communication Protocol: Natively supports Modbus RTU protocolElectrical Isolation: 2500Vrms isolation between input and output (complies with IEC standards)Self-Diagnosis Function: Real-time diagnosis of module failure, sensor disconnection, and power abnormality
• Environmental ParametersOperating Temperature: 0℃ to 65℃ (non-condensing environment)Storage Temperature: -20℃ to 85℃Relative Humidity: 5% to 95% (non-condensing)Protection Rating: IP20 (module itself)Vibration Resistance: Complies with IEC 60068-2-6 standard, 1g acceleration in 10-500Hz frequency rangeShock Resistance: Complies with IEC 60068-2-27 standard, 10g acceleration (11ms duration)
• Mechanical ParametersOverall Dimensions: 44mm (W) × 177mm (H) × 250mm (D) (rack-mount type); 150mm × 100mm × 80mm (standalone type)Housing Material: Cold-rolled steel plate with anti-static coatingWeight: Approximately 1.5kg (rack-mount type); approximately 0.8kg (standalone type)Mounting Method: 19-inch standard rack mounting (compatible with VM-5H3/VM-5W1 rack) or wall-mounted (standalone type)Display Interface: 16-character LCD display with digital measurement value display and alarm status bar graphOperation Method: Front-panel button operation, supporting password permission management

Product Performance

Reliable monitoring accuracy: ±1% FS measurement accuracy combined with wide range adaptability can accurately capture small changes in shaft differential expansion, meeting the monitoring needs during startup and steady-state operation of steam turbines. Strong system compatibility: Supports access of multiple types of sensors such as eddy current and LVDT; can directly link with VM-5 series racks and third-party control systems without signal converters, with data transmission delay ≤100ms.

Outstanding operational reliability: Built-in redundant power supply design (rack-mount type) and full-time self-diagnosis function can real-time monitor module and sensor abnormalities, with fault response time ≤50ms and Mean Time Between Failures (MTBF) ≥5×10⁴ hours. High operational convenience: Front-panel LCD display and buttons enable full-process non-shutdown operation for parameter configuration and alarm query; supports storage and export of 100 sets of historical alarm data.

Excellent environmental adaptability: 0-65℃ operating temperature covers industrial on-site temperature range; vibration and shock resistance design complies with IEC standards, enabling stable operation in complex working conditions such as power plants and petrochemical industries.
