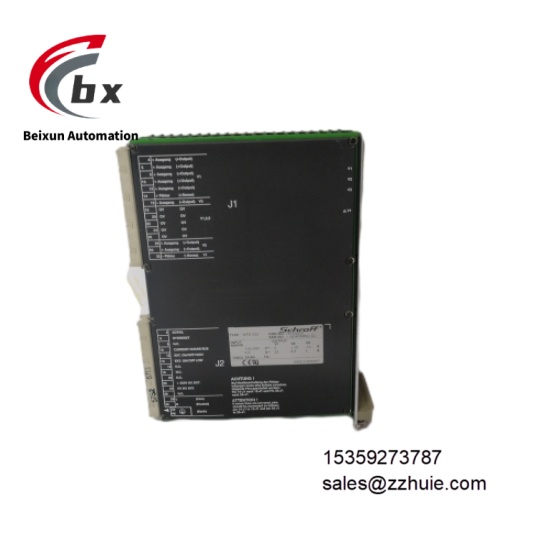

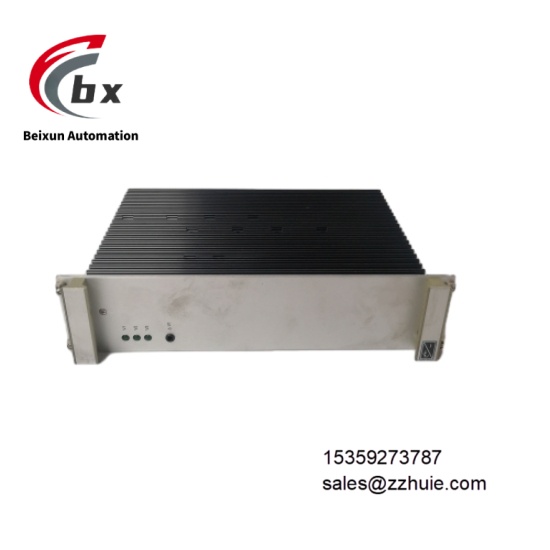

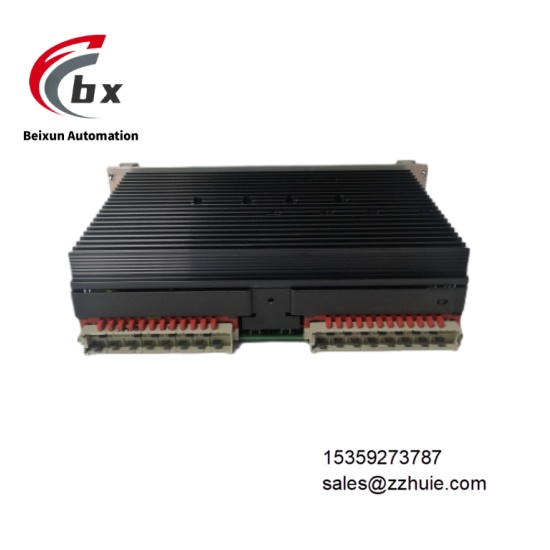

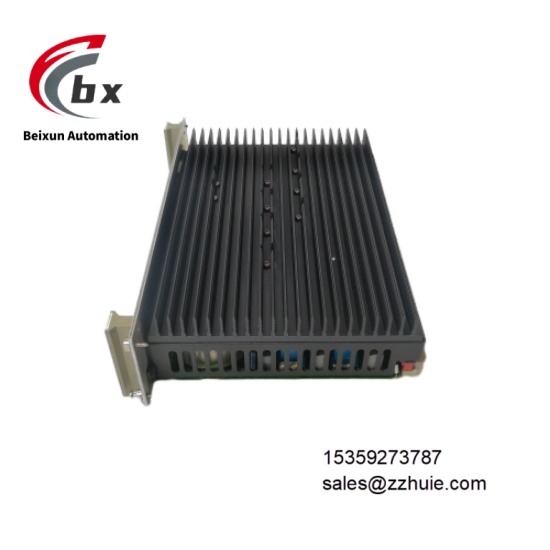

SCHROFF MPS022 Special switch power supply
Specific Parameters
Electrical Parameters
Input Specifications:Voltage Range: 90-264V AC (47-63Hz) or 130-350V DC, wide voltage compatibility design for global power standardsMaximum Input Current: ~1.2A at 230V AC (full load), ~0.8A at 300V DC (full load)Power Factor: >0.95 (with active PFC), reducing grid harmonic pollution and improving energy efficiencyInrush Current: <50A during cold start (230V AC), protecting upstream circuits
Output Specifications:
| Output Voltage | Rated Current | Power Allocation | Precision | Ripple & Noise |
|---|---|---|---|---|
| +5V DC | 28A | 140W | ±1% | <10mVpp |
| +12V DC | 7A | 84W | ±1% | <15mVpp |
| -12V DC | 0.5A | 6W | ±2% | <20mVpp |
| Total Power | – | 224W | – | – |
Note: MPS022/15 version outputs +5V(28A)/+15V(5.6A)/-15V(0.5A), total power 224W
Protection Functions:Overvoltage Protection (OVP): Triggered when +5V output >5.5V, +12V output >13.2V, -12V output <-13.2VOvercurrent Protection (OCP): Independent current limiting for each output channel, automatically shuts down output in short circuitOverheating Protection (OTP): Derates output when internal temperature >85℃, shuts down when >95℃Under Voltage Lockout (UVLO): Does not start when input voltage <85V AC or <120V DC, preventing operation under low voltage
Mechanical Parameters
Dimensions: 482.6mm (W, 19-inch standard) × 133.35mm (H, 6U standard) × 290mm (D)Mounting Method: 19-inch standard rack-mountable, compatible with VMEbus chassis, supporting front and rear panel fixationWeight: Approximately 4.2kg, all-metal enclosure ensures heat dissipation and mechanical strengthConnectors: Standard VMEbus power interface (J1/J2/J3), supports hot swapping (with system support)LED Indicators: Power status (green), fault alarm (red), facilitating system monitoring
Environmental Parameters
Operating Temperature: 0-40℃ (full load), 40-70℃ (derated), adapting to industrial temperature fluctuationsStorage Temperature: -40-85℃, meeting extreme transportation and storage conditionsRelative Humidity: 5-95% (non-condensing), adapting to humid industrial environmentsAltitude: ≤2000m (standard), special version up to 5000mVibration Resistance: 10-500Hz, 2g acceleration, compliant with IEC 60068-2-6 standard, ensuring stable operation in harsh conditionsShock Resistance: 15g (11ms half-sine wave), compliant with IEC 60068-2-7 standard, withstanding industrial site impacts
Product Performance
Power Supply Stability: Low ripple design (<10mVpp) ensures stable operation of CPU and I/O modules in VMEbus systems, accurate data transmission**Efficiency**: >85% at full load, optimized switching power supply design reduces energy loss and system heat dissipation requirementsCompatibility: Fully compatible with VMEbus standards, supporting VME32/VME64 systems, adapting to mainstream VMEbus controllers and peripheralsReliability: Mean Time Between Failures (MTBF) >200,000 hours, industrial-grade components and design ensure long-term stable operationRedundancy Support: Configurable multi-power supply redundancy system, seamless system switching when a single power supply fails, improving overall reliabilityEMC Performance: Compliant with EN 55022 Class A standard (industrial environment), low electromagnetic interference, no impact on surrounding equipment
