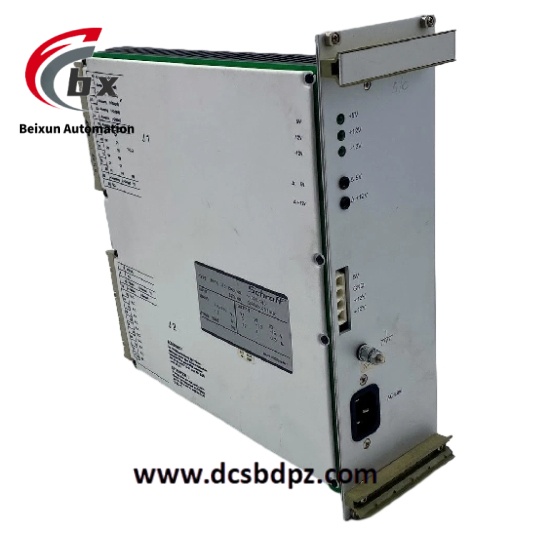

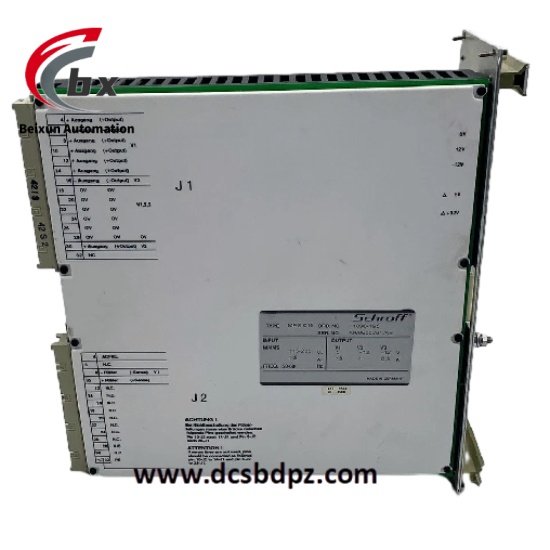

SCHROFF MPS015 Switching power module

Specific Parameters

Electrical Parameters
Input Voltage Range: 85-264V AC (wide-range AC input)
Output Voltage Configurations: +12V DC, +24V DC, +48V DC (multiple options available)
Rated Output Power: 15W
Conversion Efficiency: ≥85% (under full load condition)
Protection Functions: Overcurrent protection, overvoltage protection, short-circuit protection
Insulation Strength: 2kV AC between input and output (1 minute)
Environmental Parameters
Operating Temperature: 0°C to 60°C
Storage Temperature: -25°C to 70°C
Relative Humidity: 5% to 85% (non-condensing)
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Dimensions: 30mm (W) × 90mm (H) × 120mm (D) (compact design)
Weight: Approximately 200g
Mounting Method: 35mm standard DIN rail mounting (compliant with EN 60715)
Protection Class: IP20 (module itself)

Product Performance

MPS015 adopts high-efficiency switching power supply topology design with full-load conversion efficiency over 85%, effectively reducing energy consumption and heat generation. The wide-range AC input design adapts to global power grid standards and can operate stably without manual voltage 档位 switching. Channel-level electrical isolation and EMC filtering technology ensure the module maintains output accuracy in strong electromagnetic interference environments, with voltage regulation rate ≤±0.5%.

Built-in multiple protection circuits with response time ≤100μs can quickly cut off output to prevent damage to load equipment, and automatically resume operation after fault elimination. The compact structure design achieves a power density of 1.25W/cm³, saving installation space by more than 30%. The mean time between failures (MTBF) for continuous operation is ≥100,000 hours, and the output ripple within the operating temperature range is ≤50mV peak-to-peak, meeting the power supply requirements of precision electronic equipment.
