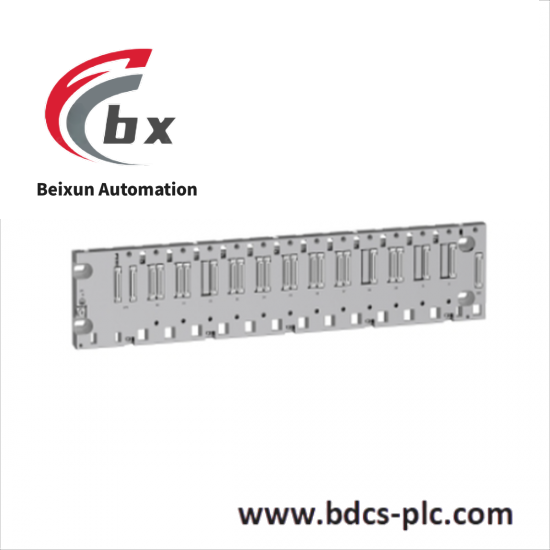

Schneider X80-D BMEXBP1200 12-Slot Ethernet Backplane – Non-Slot Occupying Power Supply
The Schneider X80-D BMEXBP1200 is a robust 12-slot Ethernet backplane designed for Modicon X80 automation systems. It supports high-speed data communication, ensuring seamless integration of multiple modules and devices in industrial control environments.
Brand:Schneider Electric
Model:BMEXBP1200
Type:Ethernet Backplane
Number of Slots:12
Bus Configuration:8 bus X + Ethernet, 4 bus X
Power Consumption:283 mW 3.3 V DC, 3.9 W 24 V DC
Electrical Connection:1 connector (XBE) expansion module
Current Consumption:164 mA at 24 V DC, 86 mA at 3.3 V DC
Net Weight:1.377 kg
The Schneider X80-D BMEXBP1200 12-slot Ethernet Backplane offers unparalleled reliability and scalability for modern industrial control systems. Designed with a focus on efficiency, this backplane allows you to add up to 12 modules without compromising on power distribution, thanks to its innovative design which separates power supply from module slots.
Key Features:
– 12 Slot Expansion Capability: Ideal for large-scale projects requiring extensive module integration.
– Non-Slot Occupying Power Supply: Ensures all 12 slots are available for module installation, optimizing space utilization.
– Advanced Connectivity: Equipped with a robust XBE connector, facilitating seamless communication between modules and external networks.
– High Performance: Supports high current consumption while maintaining low power consumption, ensuring longevity and reliability.
– Lightweight & Portable: Weighing just 1.377 kg, it is easy to install and maintain within your industrial environment.
This Ethernet backplane is specifically engineered for Modicon X80 systems, providing a seamless upgrade path for existing installations or a robust foundation for new projects. Its compatibility with various Schneider Electric products ensures a cohesive and efficient operation across your entire industrial control system.
