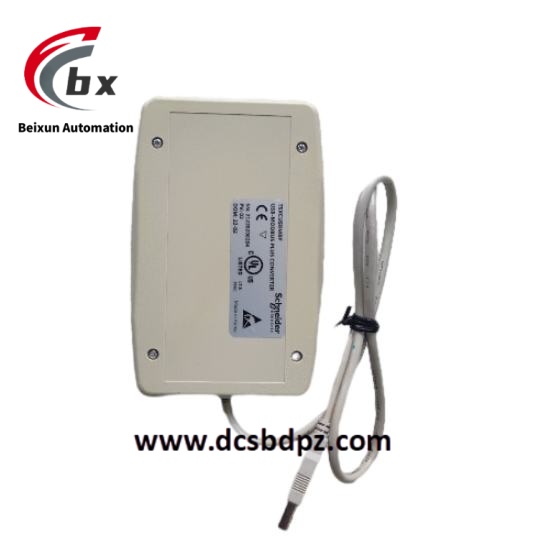

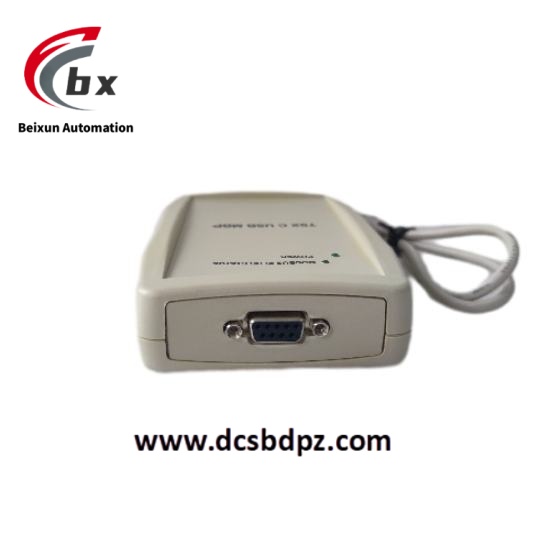

Schneider TSXCUSBMBP Communication gateway module

Schneider TSXCUSBMBP Communication gateway module

Specific Parameters​

Electrical and Communication Parameters​

Interface Type USB Type-A (device side), Modbus Plus bus interface​

Communication Protocols Natively supports Modbus Plus, compatible with Modbus RTU (firmware ≥1.01), Modbus TCP (firmware ≥1.02)​

Data Transfer Rate Up to 1Mbps, supporting high-speed real-time data exchange​

Power Supply USB bus power supply, 5V DC input​

Power Consumption Maximum 500mA (under 5V DC working condition)​

Control Voltage No additional control power supply required, relying on USB bus power​

Protection Functions Integrated overcurrent protection, undervoltage protection​

Compatibility Adaptable to Modicon Quantum series PLCs, supporting Windows XP/Vista/2000 and other systems​

Certifications Complies with CE and UL certification standards​

Mechanical and Environmental Parameters​

Overall Dimensions 75mm×45mm×25mm (L×W×H)​

Weight Approximately 100g​

Housing Material High-strength engineering plastic, impact-resistant structure​

Protection Rating Industrial-grade protection design, suitable for installation in control cabinets​

Mounting Method No fixed installation required, supporting on-site portable deployment​

Operating Temperature -20℃ to 70℃, stable operation over the entire temperature range​

Storage Temperature -40℃ to 85℃, meeting extreme storage and transportation requirements​

Relative Humidity Below 95% (non-condensing), adapting to high-humidity industrial environments​

EMC Compliance Complies with IEC industrial EMC standards​

Product Performance​

Efficient protocol conversion, 1Mbps transfer rate + real-time protocol parsing, ensuring delay-free data interaction​

Excellent compatibility, cross-Modbus series protocol support, adapting to mainstream PLCs and operating systems​

Strong deployment flexibility, USB bus power supply + 100g lightweight design, no additional power supply or installation space required​

Excellent environmental adaptability, -20℃ to 70℃ wide-temperature operation, withstanding high humidity and electromagnetic interference environments​

Plug-and-play feature, no additional drivers required, directly entering working state after connection​

High data reliability, integrated data buffering and error handling mechanisms to ensure transmission integrity​

Good operation and maintenance convenience, compact structure for easy portability, adapting to on-site debugging and maintenance scenarios​

Strong system integration, seamlessly connecting legacy bus systems with modern USB devices, reducing upgrade costs​
