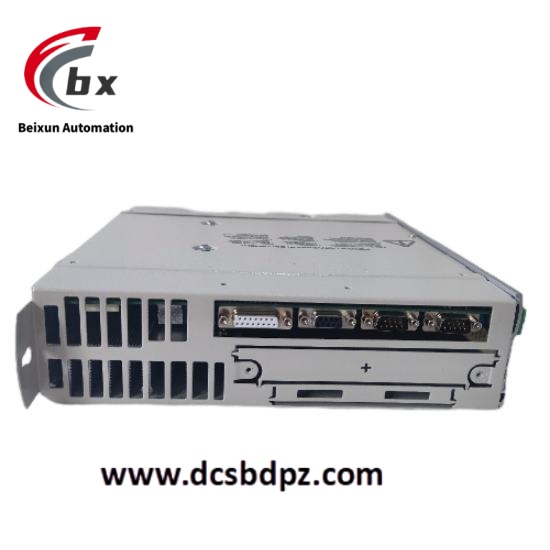

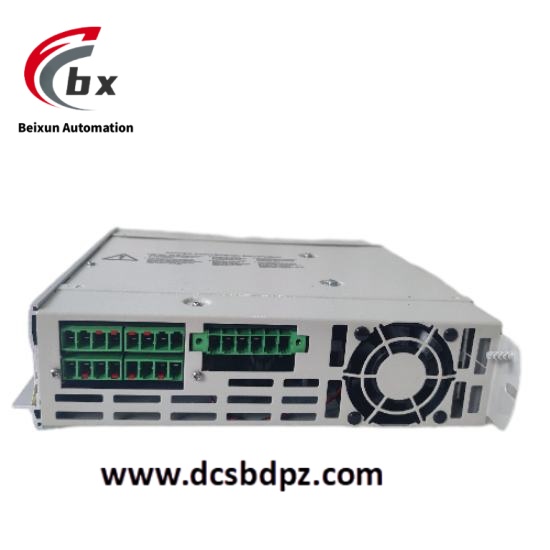

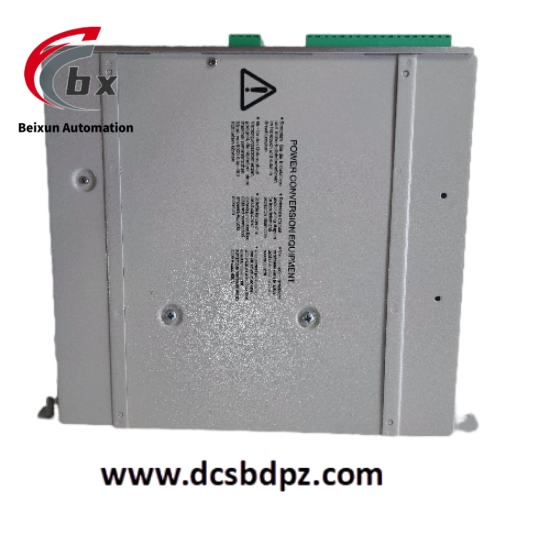

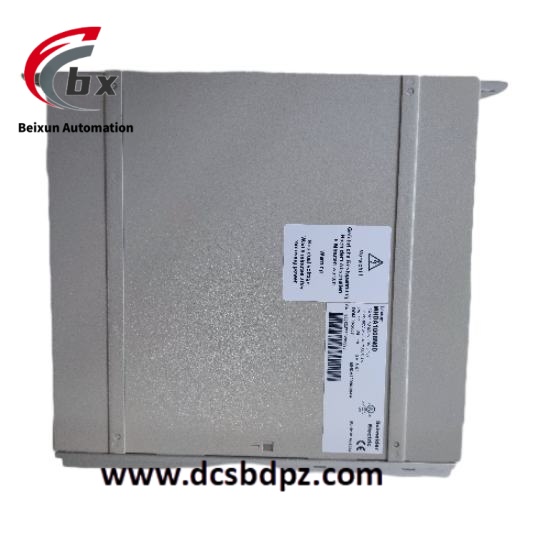

Schneider MHDA1008N00 High performance servo drive

Specific Parameters

Brand Schneider (Schneider Electric, French Brand)

Product Series Lexium 17D Series

Product Type Servo Drive

Model MHDA1008N00

Supply Voltage 3-phase 230V-480V AC

Operating Frequency 50Hz, 60Hz

Rated Output Current 8A

Rated Power 2kVA

Maximum Input Current 3A

Control Method Multi-axis pulse control, analog control

Communication Interface RS485, supporting Modbus protocol

Operating Temperature Range 0℃ to 40℃

Operating Humidity Range 80% relative humidity, no condensation

Storage Humidity Range 80% relative humidity, no condensation

Allowable Installation Height Up to 1000 meters above sea level

Dimensions 30cm×10cm×38cm

Weight 1.35kg

Certification Compliant with CO, CQ standards

Product Performance

Supports multi-axis pulse or analog control, enabling precise trajectory planning and motion synchronization, adapting to complex multi-axis linkage scenarios.

Wide voltage input design adapted to 3-phase 230V-480V power supply, compatible with 50Hz/60Hz frequency, suitable for most industrial power scenarios worldwide.

Integrates phase loss, undervoltage and overvoltage fault diagnosis mechanisms, which can real-time monitor circuit parameters and trigger protection mechanisms to avoid equipment damage.

Equipped with RS485 communication interface and Modbus protocol, supporting remote monitoring, parameter configuration and fault data upload by upper computer, facilitating operation and maintenance.

Stable operation under 0℃-40℃ temperature and 80% humidity environment, adapting to conventional industrial working conditions, with maximum installation altitude of 1000 meters and strong scenario adaptability.

Matched with rated 8A output current and 2kVA power, it can provide sufficient power for small and medium-sized servo motors with excellent control precision and response speed.

Modular structure design, easy to install and disassemble, can be quickly integrated into existing automation systems with strong compatibility.

Equipped with complete safety protection functions, effectively preventing the expansion of circuit faults and ensuring the safety of equipment and operators.
