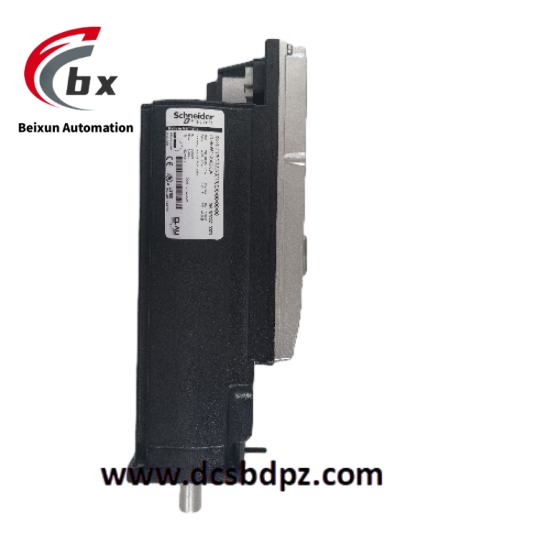

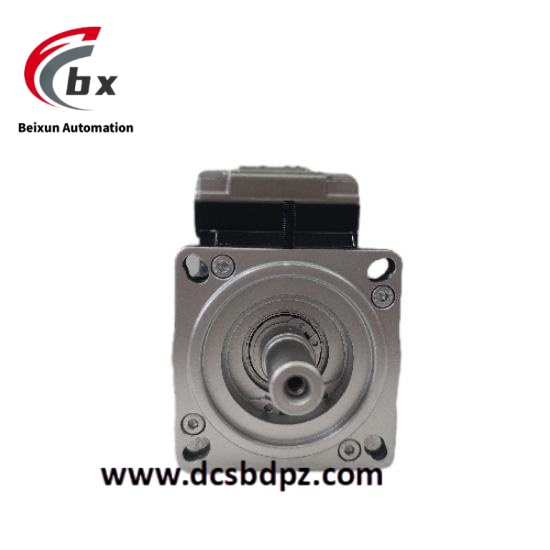

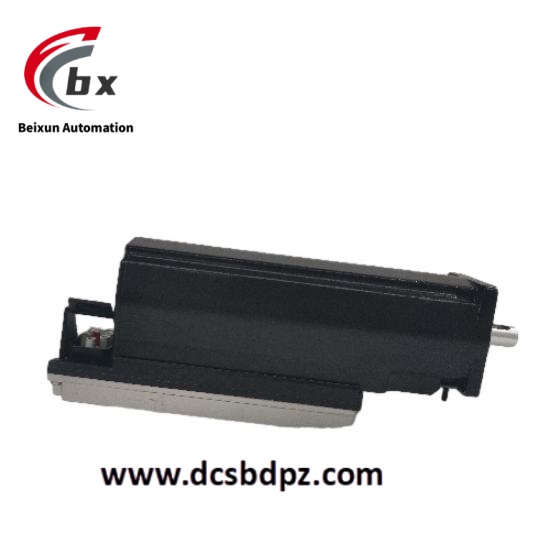

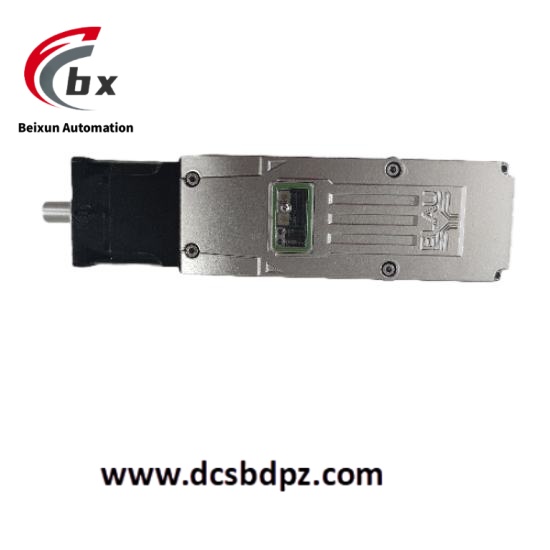

Schneider ISH070/60022/0/1/00/0/00/00/00 servo motor
Specific Parameters
Brand Schneider Electric (French Brand), ELAU Brand Under Its Umbrella
Product Series ISH070 Series
Product Type Industrial-Grade Servo Motor
Model ISH070/60022/0/1/00/0/00/00/00
Rated Power 2.5KW
Rated Voltage 380VAC
Rated Speed 3500rpm
Rated Current 6.2A
Power Factor 0.92
Protection Level IP65
Operating Temperature Range -20℃ to +70℃
Storage Temperature Range -40℃ to +85℃
Physical Dimensions 140mm×110mm×280mm (Width×Height×Length)
Physical Weight 7.8kg
Communication Interface RS-485, Supports Modbus Protocol
Mounting Method Flange Mounting + Cabinet Auxiliary Fixing
Certification Standards CE Certification, Complies with International Industrial Servo Motor Quality Standards
Adaptable Architecture Adaptable to Schneider EcoStruxure IoT Architecture
Insulation Class Class F
Cooling Method Natural Cooling
Product Performance
It has high-precision positioning and speed control capabilities, with a rated speed of 3500rpm and a positioning error of ≤±0.01mm, which can accurately realize equipment motion trajectory control, meeting the high-precision requirements of precision processing, automated transportation and other scenarios.
With a power factor of 0.92, it adopts efficient electromagnetic design and high-quality materials to achieve efficient energy conversion, reduce energy waste, and at the same time reduce motor operating temperature rise and improve operating stability.
With a protection level of IP65, it has excellent dustproof and waterproof performance, and the operating temperature range covers -20℃ to +70℃. It can operate stably for a long time in harsh industrial environments such as high dust, high and low temperature, with extremely low failure rate.
Adopting a modular structure design, combined with standard RS-485 communication interface and Modbus protocol, it can be seamlessly integrated into various Schneider automation control systems and third-party equipment, with convenient integration and no additional modification required.
The insulation class reaches Class F, the cooling method is natural cooling, the structure is strong and durable, and it passes strict quality inspection, with a long service life, which can effectively reduce equipment operation and maintenance costs and downtime losses.
Adaptable to Schneider EcoStruxure IoT architecture, it can realize real-time monitoring of motor operating status, data transmission and remote operation and maintenance, improving the intelligent management and control level of industrial automation systems.
Adopting flange mounting + cabinet auxiliary fixing method, the installation is firm and the shock resistance is strong, which can adapt to the installation layout of various industrial equipment with extremely strong adaptability.
It has good electromagnetic compatibility, which can effectively resist interference from complex electromagnetic environments in industrial sites, avoid signal distortion, speed fluctuation and other problems during operation, and ensure the stability of motion control.
