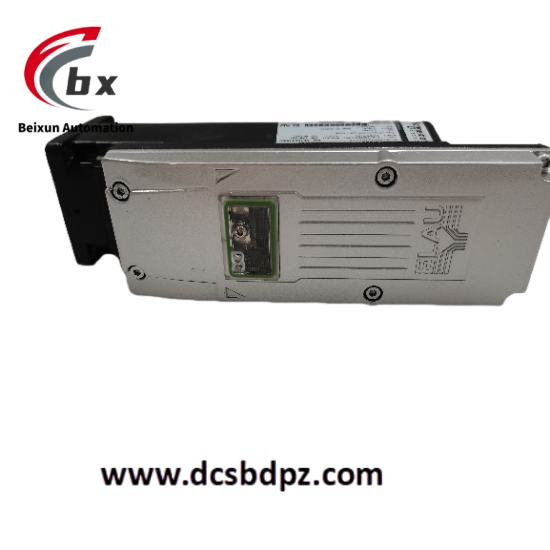

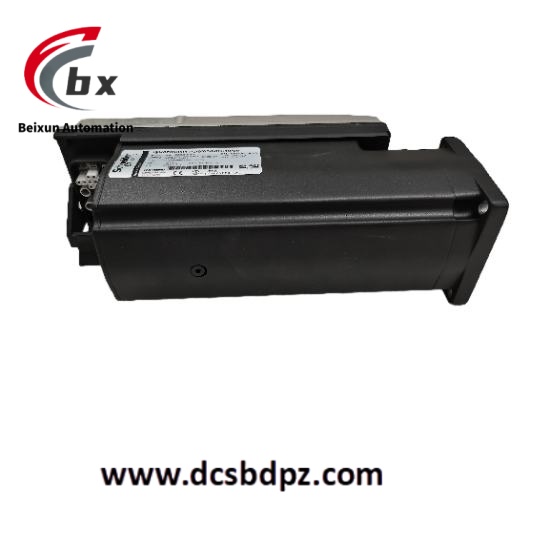

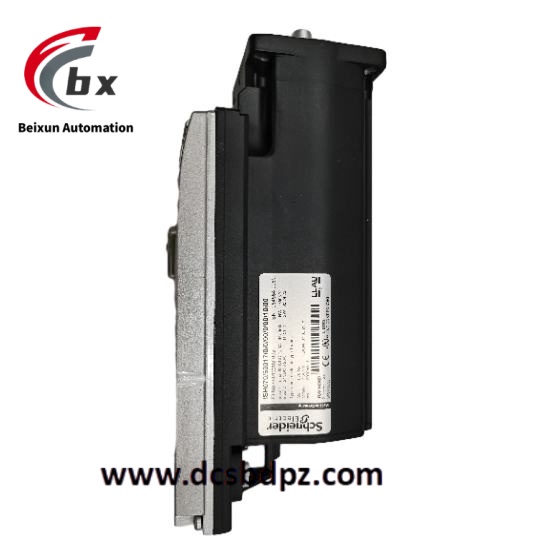

Schneider ISH070/60017/0/0/00/0/00/10/00 Servo motor controller

Schneider ISH070/60017/0/0/00/0/00/10/00 Servo motor controller

Specific Parameters

Brand Schneider Electric (French Brand), ELAU Brand Under Its Umbrella

Product Series ISH070 Series

Product Type Industrial-Grade Servo Motor Controller

Model ISH070/60017/0/0/00/0/00/10/00

Rated Voltage 680VDC

Rated Current 1.55A

Control Mode Position Control, Speed Control, Torque Control

Rated Speed Control Range 0-6000rpm

Response Time ≤0.5ms

Communication Interface RS-485, Supports Modbus Protocol

Adaptable System Schneider PacDrive 3 System

Protection Level IP65

Operating Temperature Range -20℃ to +70℃

Storage Temperature Range -40℃ to +85℃

Physical Dimensions 130mm×100mm×260mm (Width×Height×Length)

Physical Weight 7.2kg

Mounting Method Flange Mounting + Cabinet Auxiliary Fixing

Certification Standards CE Certification, Complies with International Industrial Servo Controller Quality Standards

Protection Mechanism Over-Current Protection, Over-Voltage Protection, Over-Heat Protection

Insulation Class Class F

Cooling Method Natural Cooling

Adaptable Motor Type All Series Servo Motors of ELAU Brand

Product Performance

It has precise multi-mode control capability, supporting three control modes: position control, speed control and torque control. It can flexibly switch according to the needs of industrial automation scenarios, with high control precision, and can realize precise positioning and stable operation of servo motors.

With a response time of ≤0.5ms, it adopts advanced control algorithms and hardware design, which can quickly receive and process control signals, feedback the motor operation status in real time, ensure that the servo motor responds to control commands quickly, and improve equipment operation efficiency.

Equipped with complete protection mechanisms, including over-current, over-voltage and over-heat protection, it can real-time monitor the operation status, trigger protection commands in time, avoid damage to the controller and servo motor due to abnormal working conditions, and ensure the safe and stable operation of the system.

It is compatible with Schneider PacDrive 3 system and all series of servo motors of ELAU brand, and has good compatibility. It can be seamlessly integrated into various industrial automation control systems without additional modification, with convenient and efficient integration.

With a protection level of IP65, it has excellent dustproof and waterproof performance, and the operating temperature range covers -20℃ to +70℃. It can operate stably for a long time in harsh industrial environments such as high dust, high and low temperature, with extremely low failure rate.

Adopting a modular integrated design, it has a compact structure and light weight. Combined with flange mounting + cabinet auxiliary fixing method, the installation is firm and the shock resistance is strong, which is suitable for the installation layout of various industrial equipment and convenient for later maintenance.

The insulation class reaches Class F, the cooling method is natural cooling, the structure is strong and durable, and it passes strict quality inspection, with a long service life, which can effectively reduce equipment operation and maintenance costs and downtime losses.

Equipped with RS-485 communication interface and supporting Modbus protocol, it can realize seamless data interaction with the control system, facilitating real-time monitoring and remote management and control, and improving the intelligent level of the industrial automation system.
