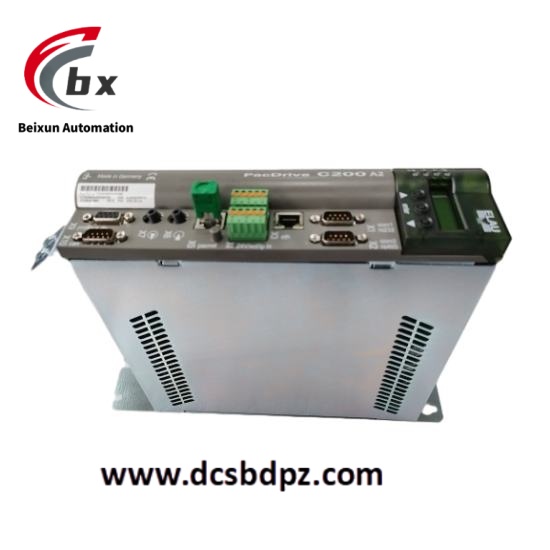

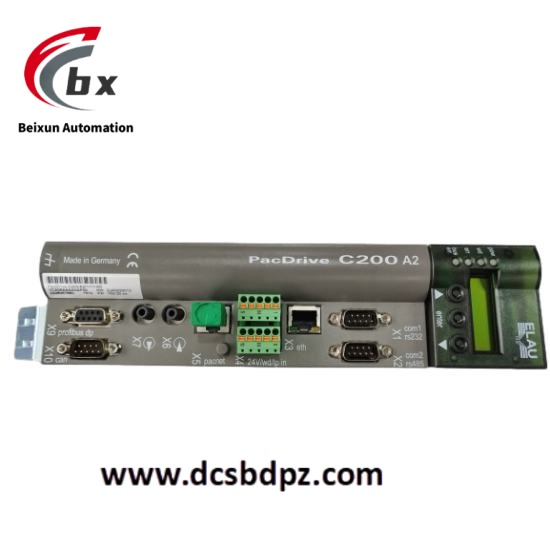

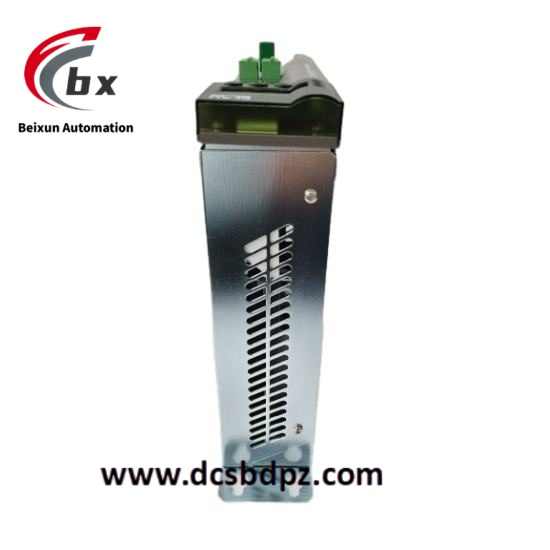

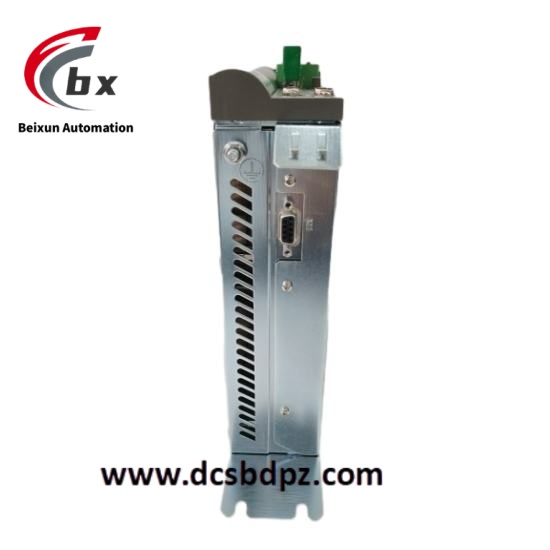

Schneider C200/A2/1/1/100 servo drive

Specific Parameters

Brand Schneider (Schneider Electric, French Brand)

Product Series PacDrive C200 Series

Product Type Servo Drive (Servo Controller)

Model C200/A2/1/1/100

CPU Model ST-PC Vega Processor

Memory Configuration 128MB RAM, 128MB Compact Flash

Supply Voltage 24VDC

Operating Current 0.15A

Supported Slave Quantity Up to 2 SERCOS Slaves

Communication Interfaces RS232, RS485, Ethernet, PROFIBUS DP, CANopen, SERCOS, PACnet, SINCOS

Operating System Real-time Operating System VxWorks

Operating Temperature Range 5℃ to 45℃ (Operation), -25℃ to 70℃ (Transportation)

Relative Humidity 5% to 85% (Operation), 5% to 95% (Transportation), No Condensation

Dimensions 32.20cm×21.30cm×7.00cm

Weight 1.81kg

Certification Compliant with CE, UL, CUL Standards, Compatible with IEC/EN 60721-3-3 Standard

Product Performance

Equipped with ST-PC Vega processor and VxWorks real-time operating system, it has fast computing speed, can realize high-precision multi-axis synchronous control, and ensure the accurate execution of complex motion trajectories.

Supports up to 2 SERCOS slaves, adapts to multi-axis automation scenarios, and enables high-speed data interaction and synchronous linkage between servo drives and actuators.

Rich communication interfaces cover mainstream industrial bus protocols, which can be seamlessly integrated into complex automation networks to realize flexible linkage with upper computers, PLCs and other equipment.

The combination of 128MB RAM and 128MB flash memory provides sufficient storage space and running memory to support the stable operation and quick call of complex control programs.

It has strong wide-temperature adaptability, can withstand harsh industrial transportation and operating environments, and the condensation-free design avoids the impact of humidity on the equipment with excellent operation stability.

Adopts a compact structure design, small in size, which can effectively save equipment installation space and adapt to the layout of automation cabinets with limited space.

Equipped with complete diagnostic functions and status indicators, it can real-time feedback the equipment operation status, facilitate quick troubleshooting and reduce maintenance costs.

Compatible with IEC 61131-3 programming languages, supporting the integrated realization of logic and motion control functions, simplifying system programming and debugging processes.
