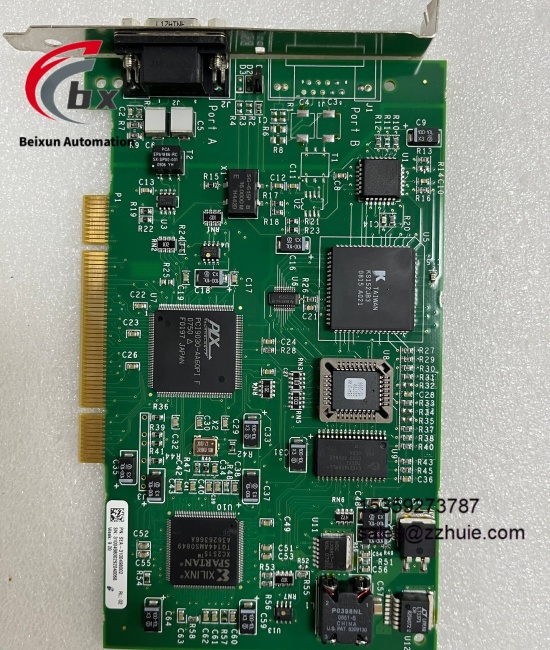

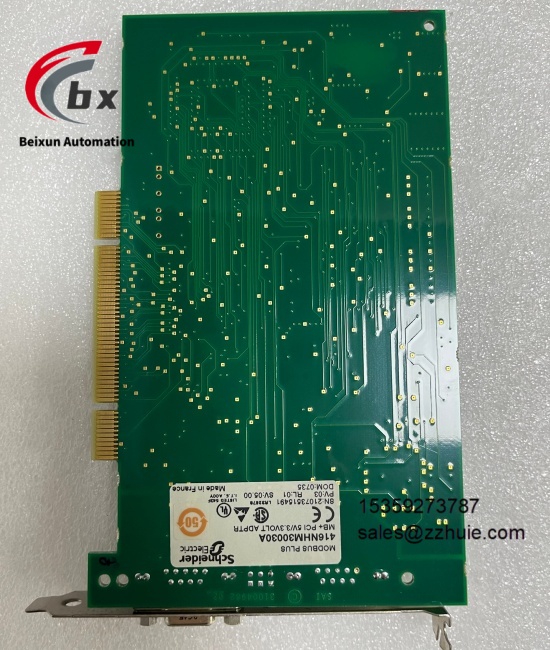

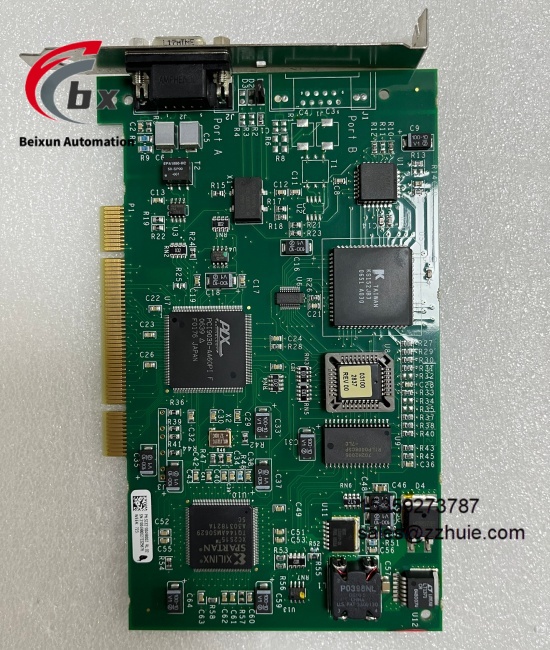

Schneider 416NHM30030A Ethernet communication module
Specific Parameters
Brand Schneider Electric (French Brand)
Product Series Quantum 416 Series
Product Type Industrial Ethernet Communication Module
Model 416NHM30030A
Communication Interfaces 2×10/100Mbps Adaptive Ethernet Ports
Supported Protocols TCP/IP, Modbus TCP, EtherNet/IP, UDP
Supply Voltage 5VDC (Powered by PLC Backplane)
Maximum Power Consumption 3.5W
Data Transmission Rate 10/100Mbps Adaptive
Communication Distance 100m (Twisted Pair), 20km (Single-Mode Fiber, Optical Module Required)
Operating Temperature Range 0℃ to 60℃
Storage Temperature Range -40℃ to 85℃
Relative Humidity 5% to 95%, No Condensation
Protection Level IP20
Physical Dimensions 100mm×130mm×40mm (Width×Height×Depth)
Physical Weight 0.45kg
Mounting Method PLC Rack Slot Mount, Supports Hot Swap
Adaptable System Quantum PLC System, Unity Pro V5.0 and Above Software
Redundancy Support Supports Dual-Port Redundant Communication Configuration
Certification Standards CE, UL, CSA Certification
Product Performance
Equipped with a high-performance communication processor, supporting 10/100Mbps adaptive data transmission rate, it can realize high-speed interaction of massive industrial data without transmission delay, meeting the communication needs of medium and large-scale PLC systems.
Equipped with dual Ethernet ports, supporting multiple mainstream industrial communication protocols such as TCP/IP and Modbus TCP, it can flexibly connect to upper computers, HMIs, distributed I/Os and third-party control systems with extremely strong compatibility.
Supports dual-port redundant communication configuration, automatically switches to the standby link when the main communication link fails, ensuring uninterrupted communication and greatly improving the reliability and fault tolerance of system communication.
With hot-swappable function, the module can be installed and replaced without shutting down the PLC system, greatly shortening system maintenance downtime and reducing operation and maintenance costs.
Built-in complete fault diagnosis mechanism, it can real-time monitor the status of communication links, feed back fault information through PLC system or upper computer, facilitating on-site personnel to quickly locate and solve communication abnormalities.
Adopting industrial-grade anti-electromagnetic interference design, it can effectively resist electromagnetic radiation and signal interference in industrial sites, ensure the stability and accuracy of data transmission, and avoid signal loss or distortion.
Compatible with Unity Pro programming software, supporting online parameter configuration and program download, with convenient operation, it can quickly complete module debugging and deployment, improving system integration efficiency.
With a protection level of IP20 and a wide temperature operating range, it can operate stably for a long time in industrial control cabinets, adapting to harsh industrial environments such as high temperature and high humidity.
