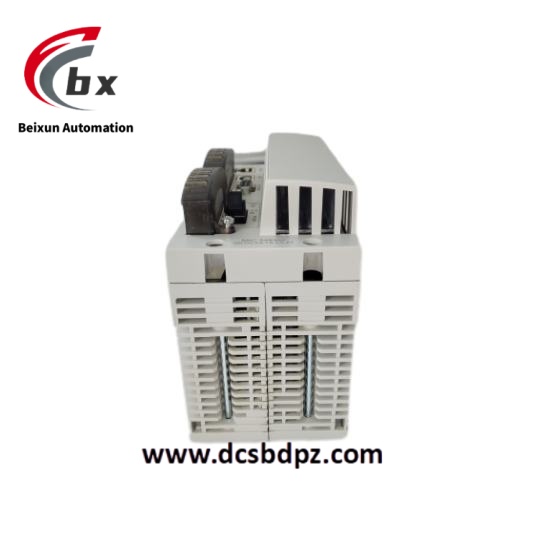

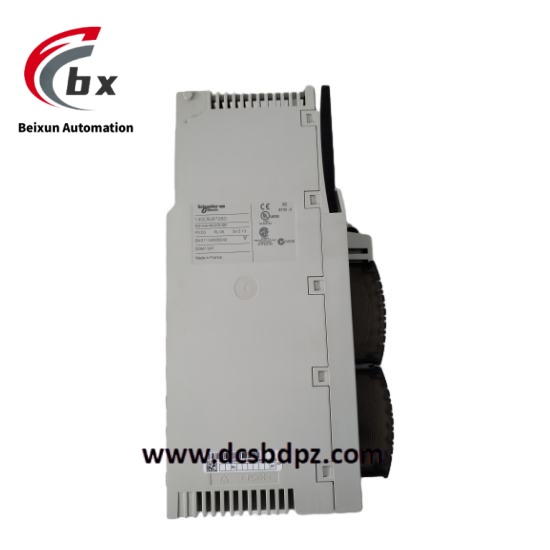

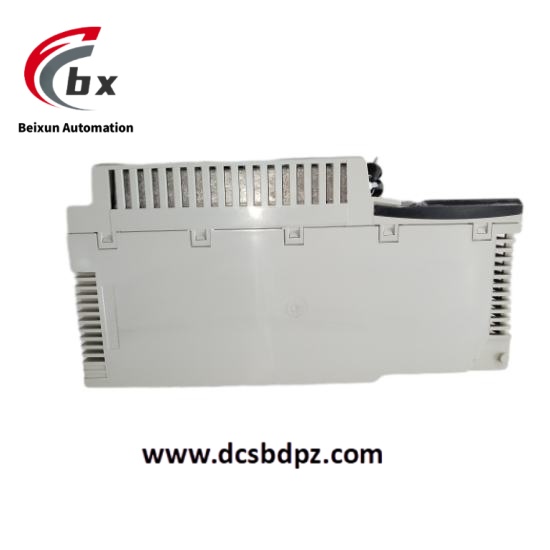

Schneider 140CPU67260 High performance processor module

Specific Parameters

Processor：Equipped with a 333MHz PowerPC architecture processor integrated with a floating-point unit, enabling efficient handling of ultra-complex mathematical operations, high-speed logic control, and large-scale data processing tasks.

Memory Configuration

System RAM：4MB, supporting high-speed execution of real-time control programs and large-data caching.

Program Memory：Expandable to 28672KB via PCMCIA card, meeting the storage and execution needs of ultra-large automation programs.

Data Storage：Expandable to 32MB, used for storing complex process parameters, historical trend data, and recipe files.

Communication Interfaces

Ethernet：2 RJ-45 ports supporting TCP/IP, Modbus TCP protocols, compatible with 10/100/1000Mbps adaptive networks.

Serial Interfaces：Integrated 2-way Modbus RTU and 1-way Modbus Plus interfaces, supporting communication with third-party devices and traditional industrial systems.

Expansion Interfaces：Supports connection of 8 optional modules, including Ethernet, Profibus DP, Modbus Plus, CANopen, etc., to meet diverse communication protocol requirements.

Power Specifications：24V DC supply, typical operating current 2800mA, supporting ±15% wide voltage input fluctuation with reverse polarity protection and overcurrent protection.

I/O Processing Capacity

Local I/O：Supports up to 32 slots, configurable with unlimited discrete/analog modules to meet ultra-high-density I/O requirements.

Remote I/O：Manages 131072 discrete inputs/outputs via Modbus Plus network, adapting to ultra-large distributed systems.

Distributed I/O：Each Modbus Plus network supports 32000 discrete I/O and 2000 analog I/O, with a total of 255 distributed stations, supporting multi-level network topologies.

Environmental Adaptability

Operating Temperature：0-60°C, Storage Temperature：-40-85°C.

Humidity：95% non-condensing, Altitude ≤ 5000 meters, ensuring stable operation in extreme industrial environments.

Anti-Interference：Complies with EN 61000-6-4 industrial EMC standards, resistant to electromagnetic interference (20V/m) and electrostatic discharge (15kV contact/25kV air).

Certifications：Obtains international safety and EMC certifications including FM Class 1 Division 2, CSA C22.2 No 142, UL 508, CE, ATEX, etc.

Product Performance

Computing Speed：Boolean operation speed reaches 30.21k instructions/millisecond (65% boolean + 35% numerical operations mixed scenario), supporting sub-millisecond real-time control response, suitable for ultra-high-speed production lines and ultra-complex process control.

Programming Compatibility：Only supports Unity Pro programming software, compatible with IEC 61131-3 standard programming languages (Ladder Diagram, Function Block Diagram, Structured Text, Instruction List, etc.), enabling online debugging, remote downloading, and version management.

Reliability Design

Mean Time Between Failures (MTBF) exceeds 300,000 hours, meeting the requirement of continuous operation for more than ten years.

Supports triple hot standby redundancy configuration (140CPU67260A×3), with master-slave switching time < 10ms to ensure zero interruption of critical processes.

Built-in four-level diagnostic functions, displaying operating status via color LED indicators (STS/ERR/COM/PWR), supporting real-time fault code query and historical log recording.

Network Management：Integrates Web server and SNMPv3 management functions, allowing remote monitoring of processor status, I/O data, network traffic, and energy consumption information via browser, supporting OPC UA data interface and MQTT protocol for easy integration with industrial internet platforms.

Application Fields

Manufacturing：Suitable for ultra-precision automation scenarios such as new energy vehicle production lines, semiconductor chip packaging test lines, and aerospace composite material processing, enabling multi-axis collaborative motion control, robot cluster operations, and full-process quality traceability.

Energy Industry：Applied in extra-large nuclear power plant DCS systems, ultra-high voltage smart grid dispatch centers, and offshore wind farm cluster control systems, supporting real-time data collection, power grid power flow calculation, and energy management optimization.

Water Treatment：Used for cross-basin water supply network monitoring, extra-large sewage treatment plant aeration system optimization, and seawater desalination full-process control, achieving full-process automation and online water quality monitoring.

Transportation：Suitable for high-speed rail central signal systems, automated container ports, and urban rail transit integrated monitoring systems, ensuring the safe and efficient operation of ultra-large transportation networks.

Petrochemical Industry：Applied in large refinery joint unit control, ethylene cracking furnace group temperature precise regulation, and transnational oil and gas pipeline SCADA systems, supporting explosion-proof applications in hazardous areas and Emergency Shutdown Systems (ESD).
