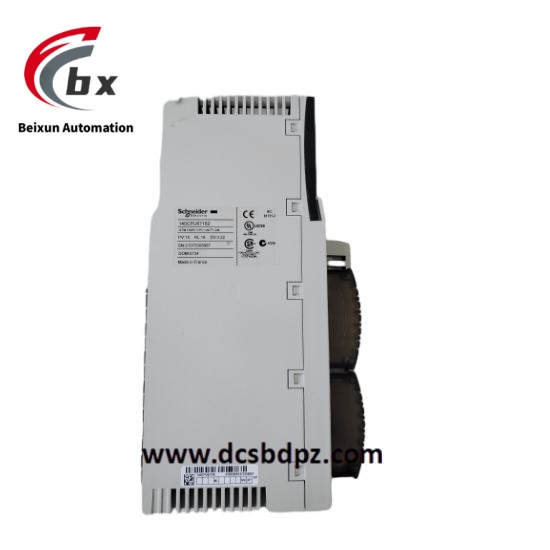

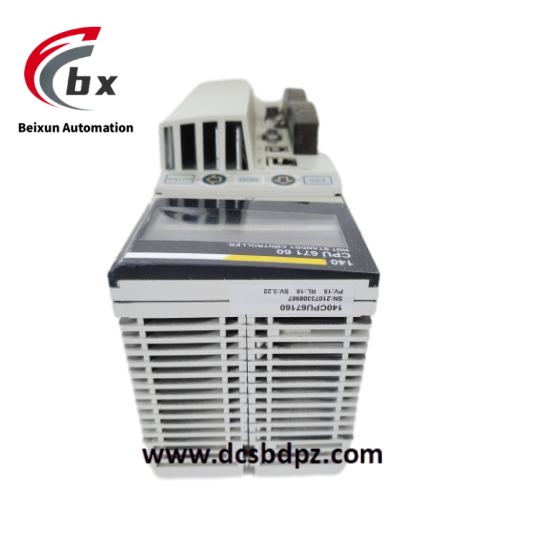

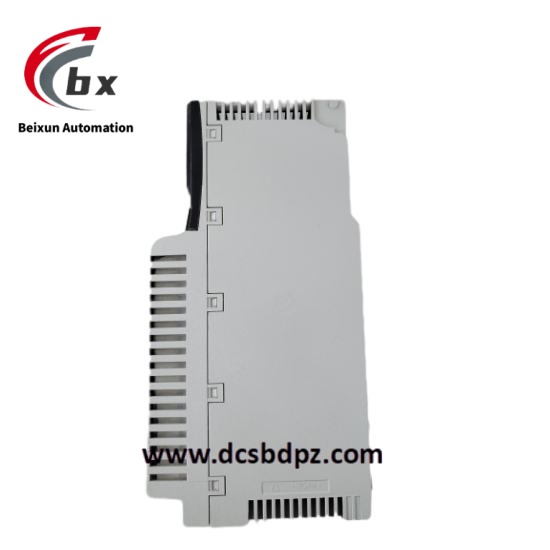

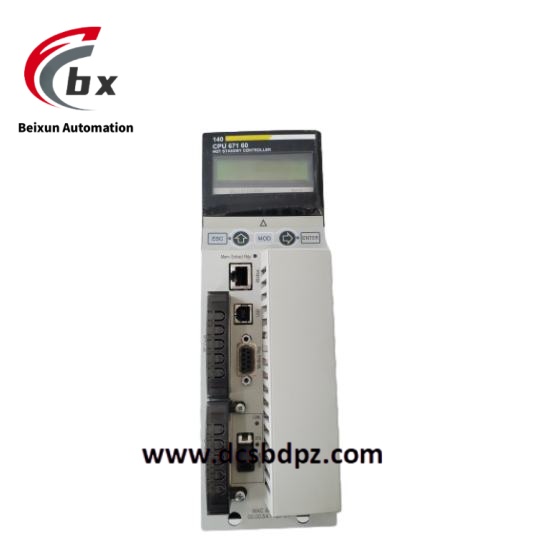

Schneider 140CPU67160 High performance processor module

Specific Parameters

Processor：Equipped with a 266MHz PowerPC architecture processor integrated with a floating-point unit, enabling efficient handling of complex mathematical operations, high-speed logic control, and large-scale data processing tasks.

Memory Configuration

System RAM：2MB, supporting high-speed execution of real-time control programs and data caching.

Program Memory：Expandable to 14336KB via PCMCIA card, meeting the storage and execution needs of large automation programs.

Data Storage：Expandable to 16MB, used for storing process parameters, historical data, and recipe files.

Communication Interfaces

Ethernet：1 RJ-45 port supporting TCP/IP, Modbus TCP protocols, compatible with 10/100Mbps adaptive networks.

Serial Interfaces：Integrated Modbus RTU and Modbus Plus interfaces, supporting communication with third-party devices and traditional industrial systems.

Expansion Interfaces：Supports connection of 6 optional modules, including Ethernet, Profibus DP, Modbus Plus, Sy/Max, etc., to meet diverse communication protocol requirements.

Power Specifications：24V DC supply, typical operating current 2500mA, supporting ±10% wide voltage input fluctuation with reverse polarity protection.

I/O Processing Capacity

Local I/O：Supports up to 26 slots, configurable with unlimited discrete/analog modules to meet high-density I/O requirements.

Remote I/O：Manages 65536 discrete inputs/outputs via Modbus Plus network, adapting to large distributed systems.

Distributed I/O：Each Modbus Plus network supports 16000 discrete I/O and 1000 analog I/O, with a total of 127 distributed stations, supporting multi-level network topologies.

Environmental Adaptability

Operating Temperature：0-60°C, Storage Temperature：-40-85°C.

Humidity：95% non-condensing, Altitude ≤ 5000 meters, ensuring stable operation in harsh industrial environments.

Anti-Interference：Complies with EN 61000-6-2 industrial EMC standards, resistant to electromagnetic interference (10V/m) and electrostatic discharge (8kV contact/15kV air).

Certifications：Obtains international safety and EMC certifications including FM Class 1 Division 2, CSA C22.2 No 142, UL 508, CE, etc.

Product Performance

Computing Speed：Boolean operation speed reaches 20.14k instructions/millisecond (65% boolean + 35% numerical operations mixed scenario), supporting millisecond-level real-time control response, suitable for high-speed production lines and complex process control.

Programming Compatibility：Only supports Unity Pro programming software, compatible with IEC 61131-3 standard programming languages (Ladder Diagram, Function Block Diagram, Structured Text, Instruction List, etc.), enabling online debugging, remote downloading, and version management.

Reliability Design

Mean Time Between Failures (MTBF) exceeds 200,000 hours, meeting 7×24-hour continuous operation requirements.

Supports hot standby redundancy configuration (140CPU67160A + 140CPU67160A), with master-slave switching time < 30ms to ensure zero interruption of critical processes.

Built-in multi-level diagnostic functions, displaying operating status via color LED indicators (STS/ERR/COM), supporting real-time fault code query and log recording.

Network Management：Integrates Web server and SNMPv3 management functions, allowing remote monitoring of processor status, I/O data, network traffic, and energy consumption information via browser, supporting OPC UA data interface for easy integration with SCADA systems.
