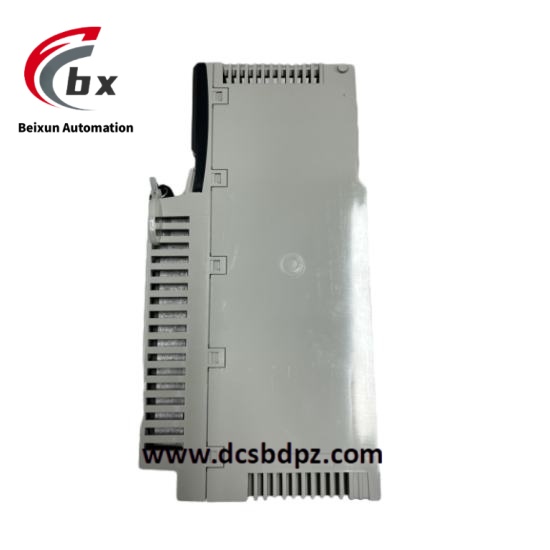

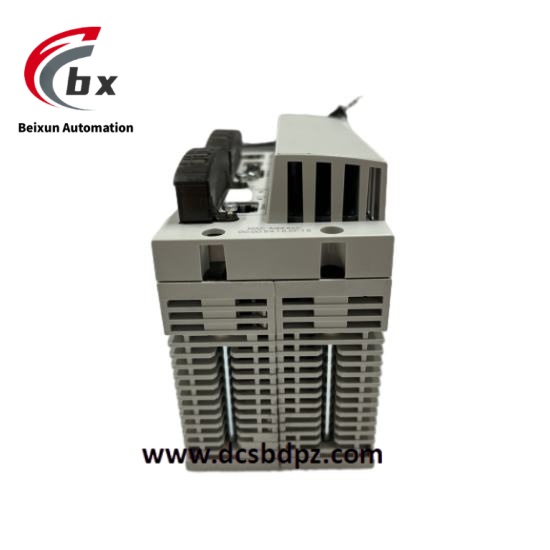

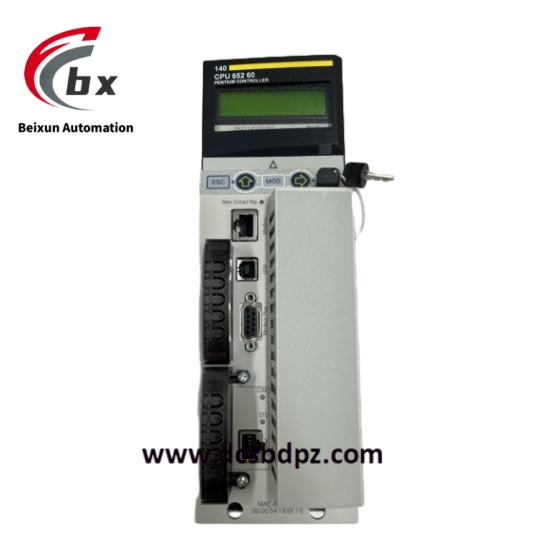

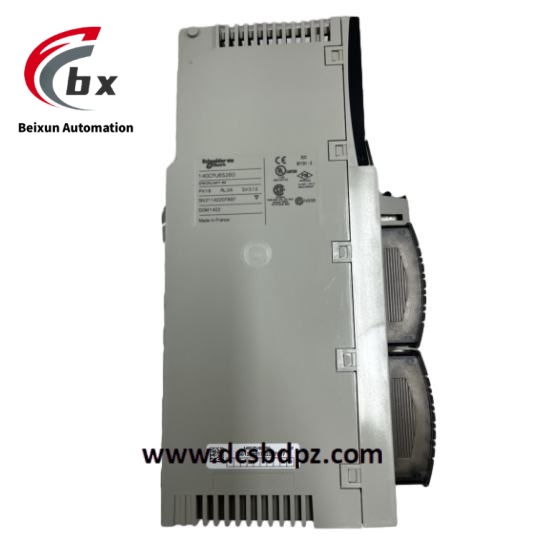

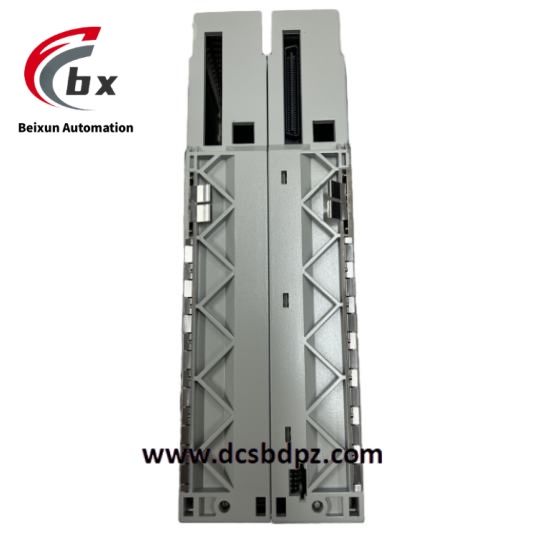

Schneider 140CPU65260 High performance processor module

Specific Parameters

Processor：Equipped with a 166 MHz main processor integrated with a floating-point unit, enabling efficient handling of complex mathematical operations and logic control tasks.

Memory Configuration

System RAM：768 KB for real-time control program execution and data caching.

Program Memory：Expandable to 7168 KB via PCMCIA card, supporting storage and execution of large automation programs.

Data Storage：Expandable to 8 MB for storing process parameters, historical data, and other files.

Communication Interfaces

Ethernet：1 RJ-45 port supporting TCP/IP protocol, compatible with 10/100 Mbps adaptive networks.

Serial Interfaces：Integrated Modbus RTU and Modbus Plus interfaces for communication with third-party devices.

Expansion Interfaces：Supports connection of 6 optional modules, including Profibus DP, Ethernet, Sy/Max, etc., to meet diverse communication needs.

Power Specifications：24V DC supply, typical operating current 2160 mA, supporting ±10% wide voltage input fluctuation.

I/O Processing Capacity

Local I/O：Supports up to 26 slots, configurable with unlimited discrete/analog modules.

Remote I/O：Manages 31744 discrete inputs/outputs via Modbus Plus network.

Distributed I/O：Each Modbus Plus network supports 8000 discrete I/O and 500 analog I/O, with a total of 63 distributed stations.

Environmental Adaptability

Operating Temperature：0-60°C, Storage Temperature：-40-85°C.

Humidity：95% non-condensing, Altitude ≤ 5000 meters.

Anti-Interference：Complies with EMC standards, resistant to electromagnetic interference (9.14 V/yd) and electrostatic discharge (4 kV contact/8 kV air).

Certifications：Obtains international safety certifications including FM Class 1 Division 2, CSA C22.2 No 142, UL 508, etc.

Product Performance

Computing Speed：Boolean operation speed reaches 10.07k instructions/millisecond (65% boolean + 35% numerical operations mixed scenario), supporting fast response to real-time control needs.

Programming Compatibility：Only supports Unity Pro programming software, compatible with IEC 61131-3 standard programming languages (Ladder Diagram, Function Block Diagram, Structured Text, etc.), enabling online debugging and remote downloading.

Reliability Design

Mean Time Between Failures (MTBF) exceeds 100,000 hours, suitable for continuous operation scenarios.

Supports hot standby redundancy configuration, with master-slave processor switching time < 50ms to ensure critical process continuity.

Built-in diagnostic functions, displaying operating status via yellow STS LED indicator (solid on for normal, flashing for fault codes).

Network Management：Integrates Web server functionality, allowing remote monitoring of processor status, I/O data, and fault logs via browser, supporting SNMP protocol for network management.
