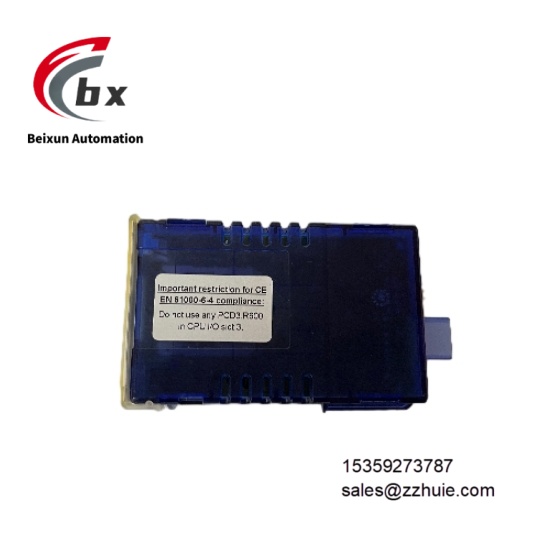

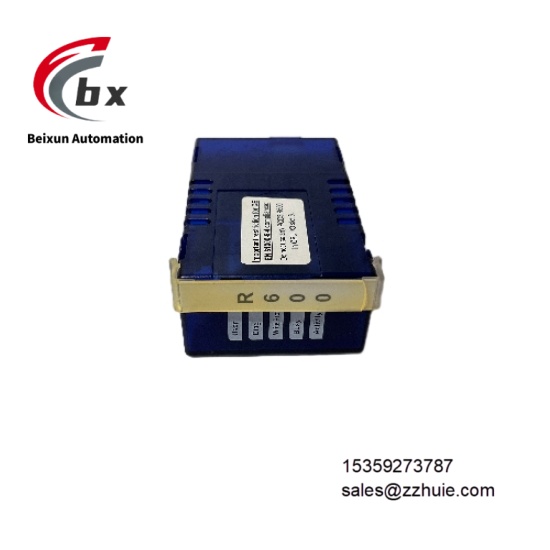

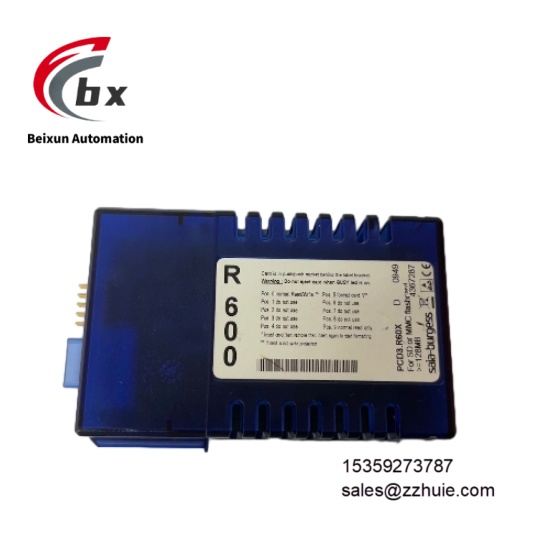

SAIA PCD3.R60X Programmable controller

SAIA PCD3.R60X Programmable controller

Specific Parameters​

Electrical Parameters​

Power Supply Voltage 24V DC, compatible with industrial standard DC power supply systems​

Processor 32-bit ARM Cortex-M4, 5 times faster than the previous generation​

Memory Capacity 128MB RAM, 256MB flash memory, ensuring efficient data processing and program storage​

Input Ports 8 digital inputs, 2 analog inputs (compatible with 0-10V/4-20mA signals)​

Output Ports 8 digital outputs (relay output), 2 analog outputs (0-10V/4-20mA)​

Communication Interfaces Standard Ethernet, RS485, CANopen interfaces, supporting multi-device interconnection​

Communication Protocols Compatible with Modbus, Profinet, Profibus, TCP/IP and other industrial protocols​

Programming Languages Supports C, Pascal, ladder diagram and other programming languages​

Protection Functions Integrates overcurrent, overvoltage, overheating protection, automatically cuts off dangerous outputs and alarms​

Mechanical Parameters​

Overall Dimensions 120mm×90mm×62mm, compact design saves installation space​

Weight Approximately 350g, lightweight structure facilitates integrated installation​

Protection Rating IP65, dustproof and low-pressure water spray proof, suitable for outdoor humid environments​

Mounting Method Standard DIN rail mounting, compatible with 35mm DIN rails​

Interface Type Plug-in terminal interface (signal terminals with M3 screw fastening)​

Status Indication Equipped with Power (green), Run (yellow), Fault (red) LED indicators​

Housing Material High-strength engineering plastic housing with antistatic surface treatment​

Environmental Parameters​

Operating Temperature -20℃ to 70℃, no performance derating over the entire temperature range​

Storage Temperature -40℃ to 85℃, meeting extreme storage and transportation requirements​

Relative Humidity 5% to 95% (non-condensing), adapting to high-humidity industrial scenarios​

Vibration Resistance Complies with IEC 60068-2-6 standard, 2g acceleration in 10-500Hz frequency range​

EMC Compliance Radiation disturbance complies with EN 55011 Class A, immunity complies with EN 61000-4-2/3 standards​

Product Performance​

Fast processing speed, 32-bit processor with large-capacity memory, logic operation response time ≤1μs​

High expansion flexibility, modular design supports adding digital and analog expansion modules for system upgrades​

Strong communication capability, multi-interface and multi-protocol compatibility, realizing seamless connection with HMI, servo drives and other devices​

Good programming convenience, supporting multi-language programming and PCDsoft software debugging, shortening development cycle​

Wide environmental adaptability, IP65 protection and wide temperature operating range, tolerating outdoor and harsh workshop environments​

High operational stability, industrial-grade component selection, Mean Time Between Failures (MTBF) ≥1,500,000 hours​

Comprehensive diagnostic functions, with remote monitoring and fault alarm, simplifying equipment maintenance processes​

High control precision, analog processing error ≤0.1%, meeting precision industrial control requirements​
