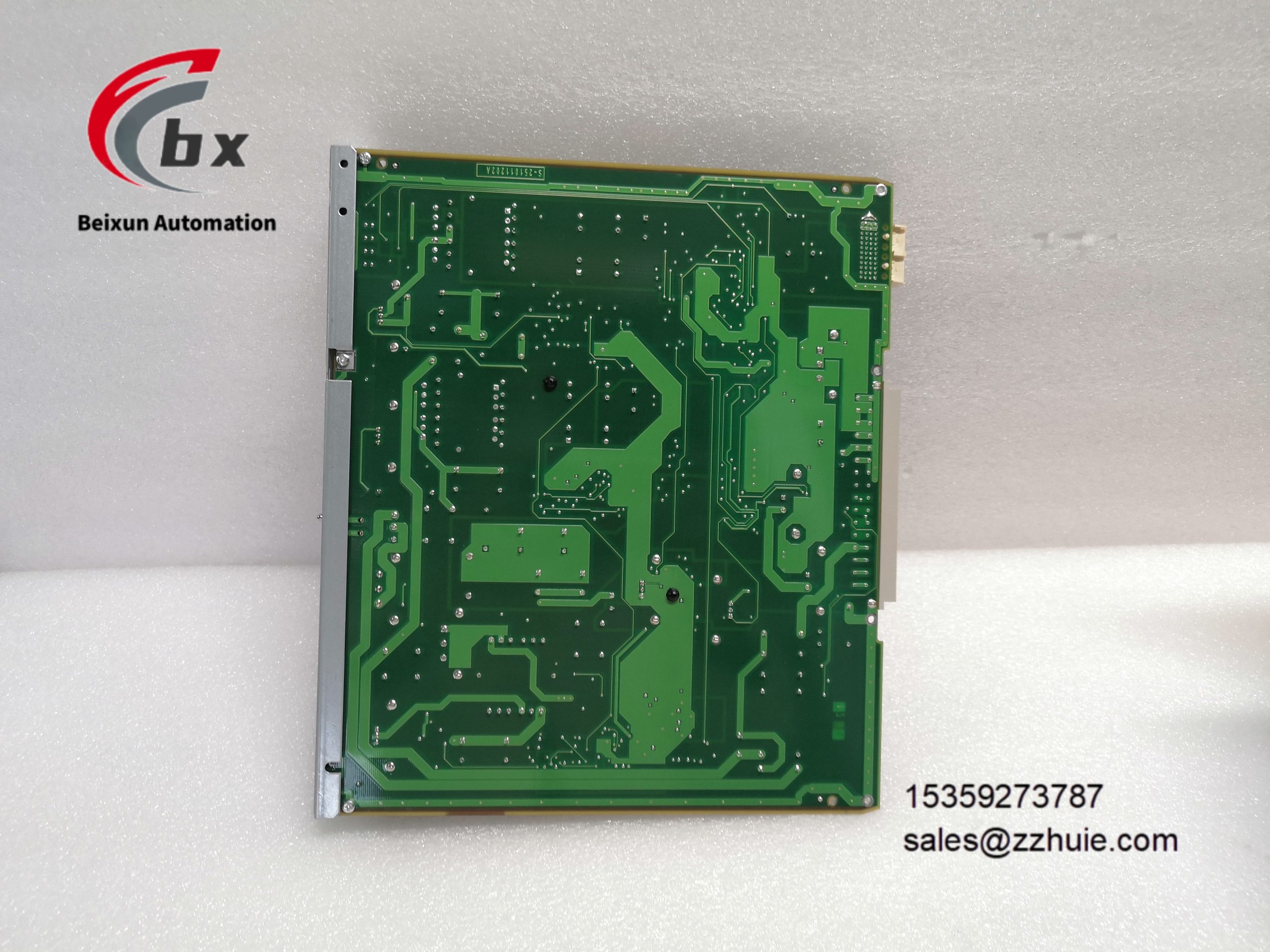

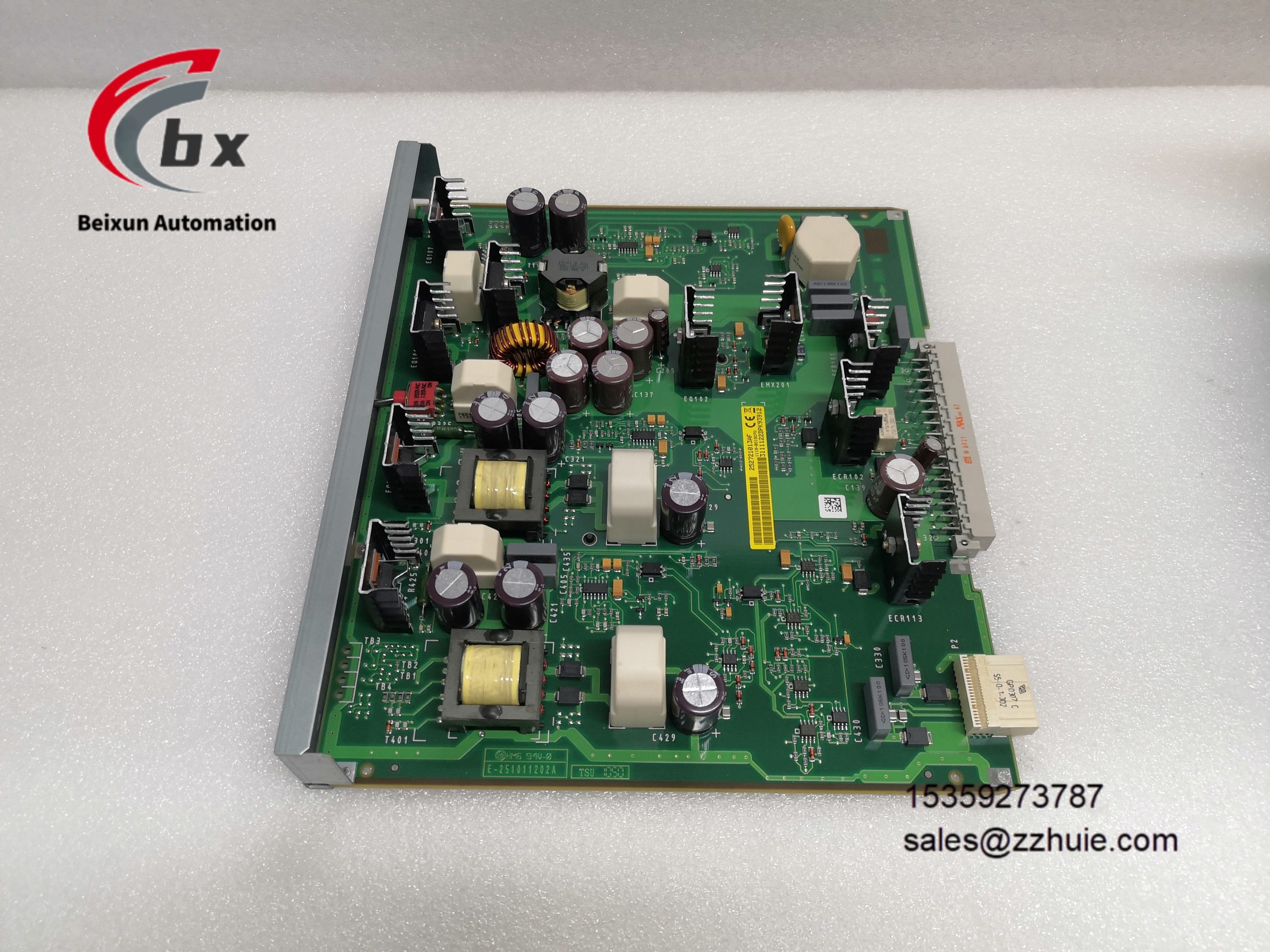

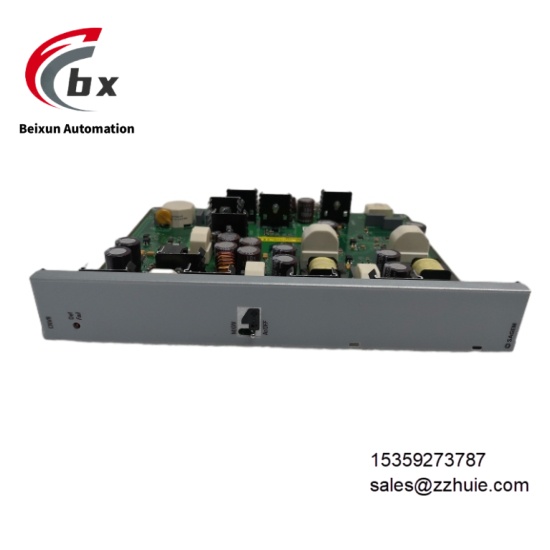

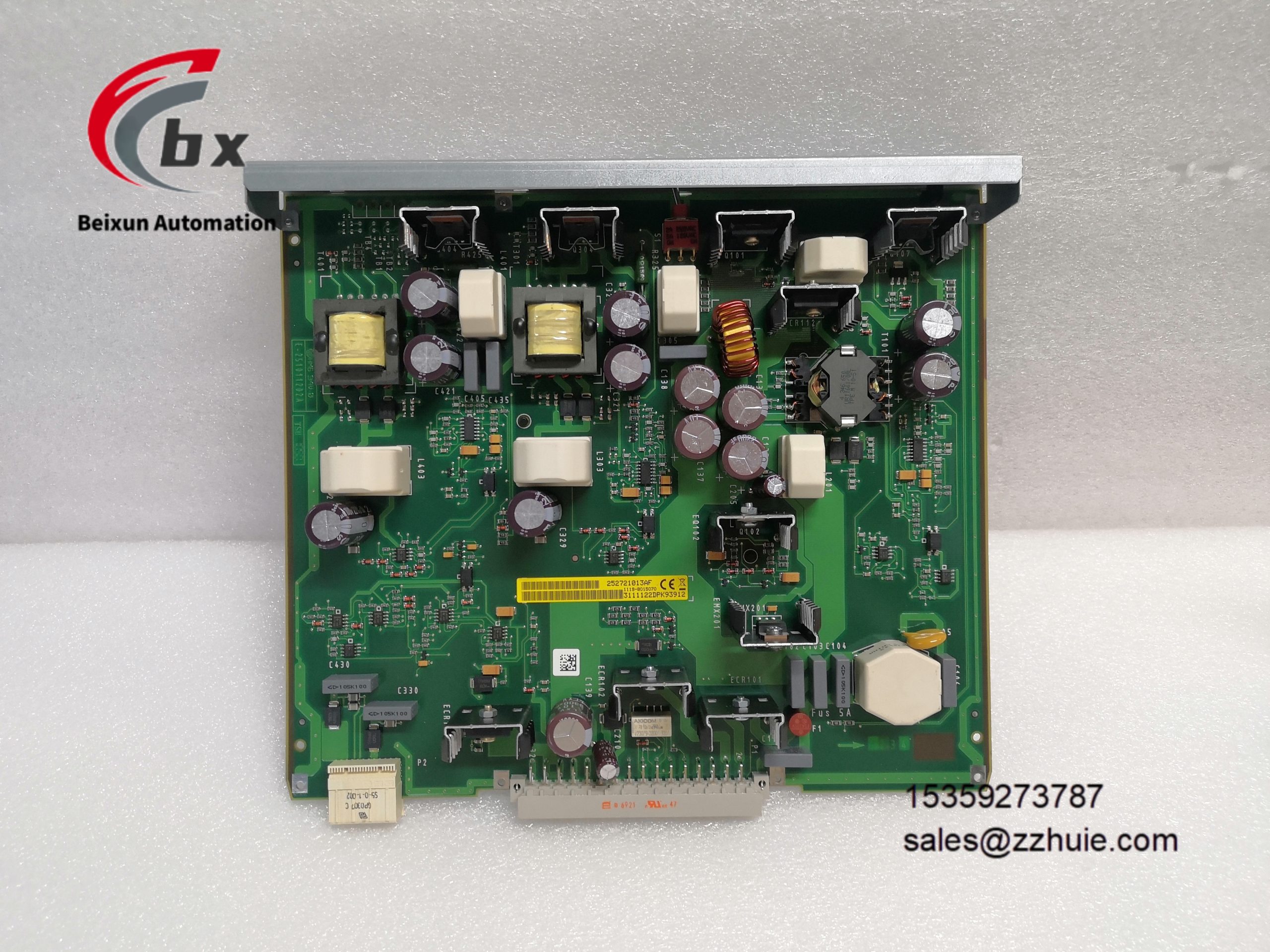

SAGEMCOM 252721013AF Multi functional control module

Specific Parameters

Brand SAGEMCOM (French Brand)

Product Series SAGEMCOM 252 Series Industrial Control Module

Product Type Industrial-Grade Multi-Functional Control Module (with regulation, collection and control functions)

Model 252721013AF

Supply Voltage 24VDC

Control Accuracy 16-bit analog input, 12-bit analog output

Input Channels Up to 256 digital input channels and 32 analog input channels expandable

Output Channels Up to 256 digital output channels and 32 analog output channels expandable

Execution Speed 1ms to 32ms

Communication Interfaces RS-232, RS-485, CAN

Communication Protocols Supports Modbus, Profibus protocols

Control Methods Supports Ladder logic, C language, SFC programming; compatible with PID control, proportional control, PWM control

Storage Capacity 512KB flash memory, 256KB RAM

Operating Temperature Range -20℃ to +70℃

Operating Humidity 10% to 90%, no condensation

Housing Specification 1/8 DIN housing, 60mm depth

Physical Dimensions 160mm×90mm×30mm (Length×Width×Height)

Physical Weight 300g

Origin France

Product Performance

16-bit high-precision analog input and 12-bit analog output configuration, combined with 1ms to 32ms high-speed execution speed, can accurately collect temperature, pressure and other signals and quickly respond to control commands, meeting the needs of high-precision industrial process regulation.

Supports multi-protocol and multi-type communication interfaces, enabling seamless connection with various sensors, actuators and upper computer systems, realizing real-time data interaction and remote monitoring, and adapting to complex system integration scenarios.

Compatible with multiple programming methods and control modes, control logic can be flexibly customized according to actual application scenarios, and PID regulation algorithm ensures parameters are stable within the preset range, with outstanding versatility and adaptability.

Equipped with super large channel expansion capability, digital and analog input/output channels can be expanded on demand, and sufficient storage capacity can store historical data and control programs, providing support for fault diagnosis and data analysis.

Industrial-grade structural design and wide temperature tolerance can resist harsh industrial environments such as vibration, high and low temperatures. The 1/8 DIN housing saves panel space and adapts to various control cabinet installation layouts.

Integrated with alarm and event processing functions, it can real-time monitor system operation status and quickly generate alarms when faults occur, ensuring continuous and stable operation of industrial processes and reducing fault losses.

High-reliability circuit design and anti-interference performance can effectively isolate electromagnetic interference in industrial fields, ensuring the accuracy of data transmission and control command execution without misoperation risk.
