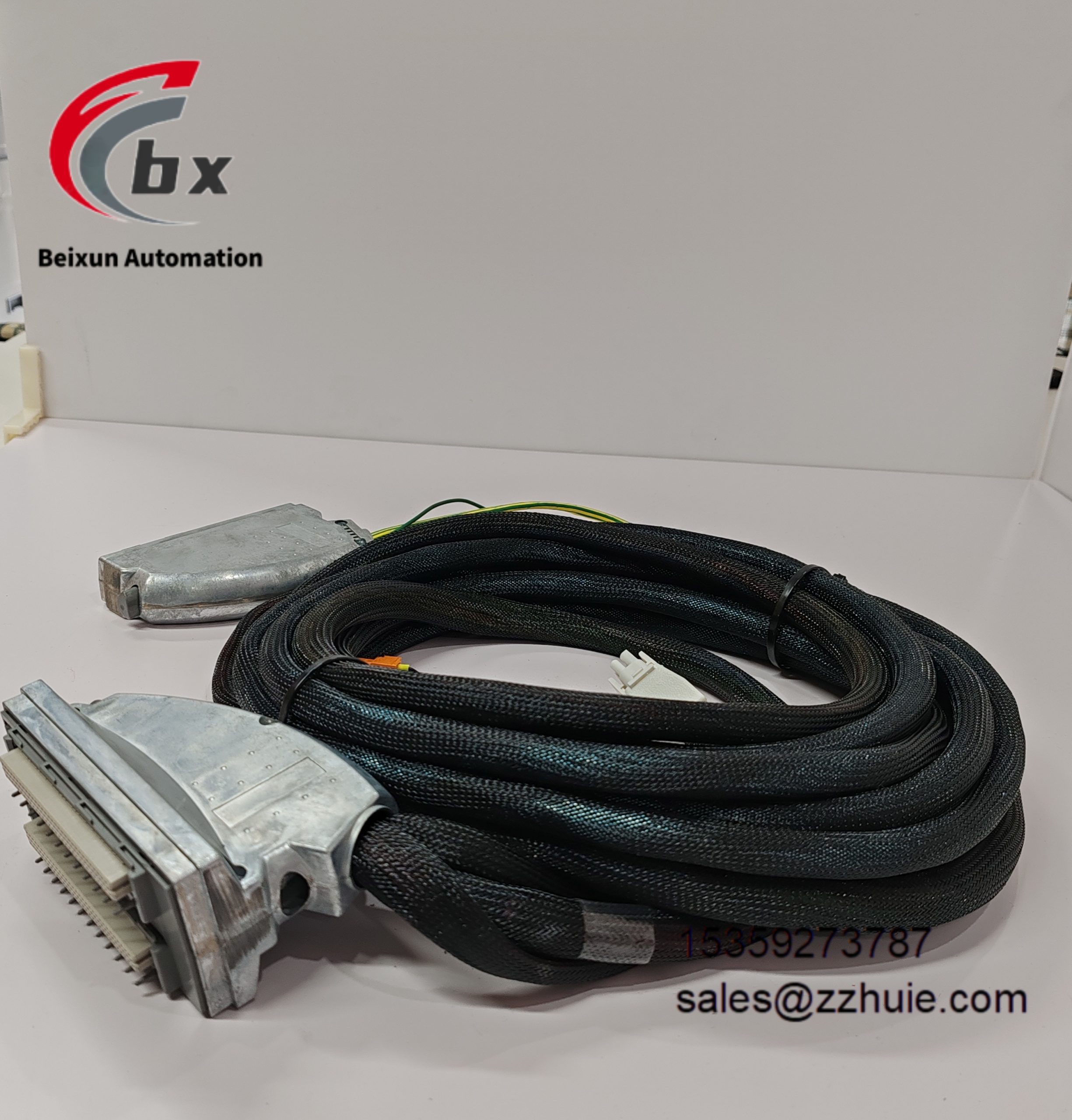

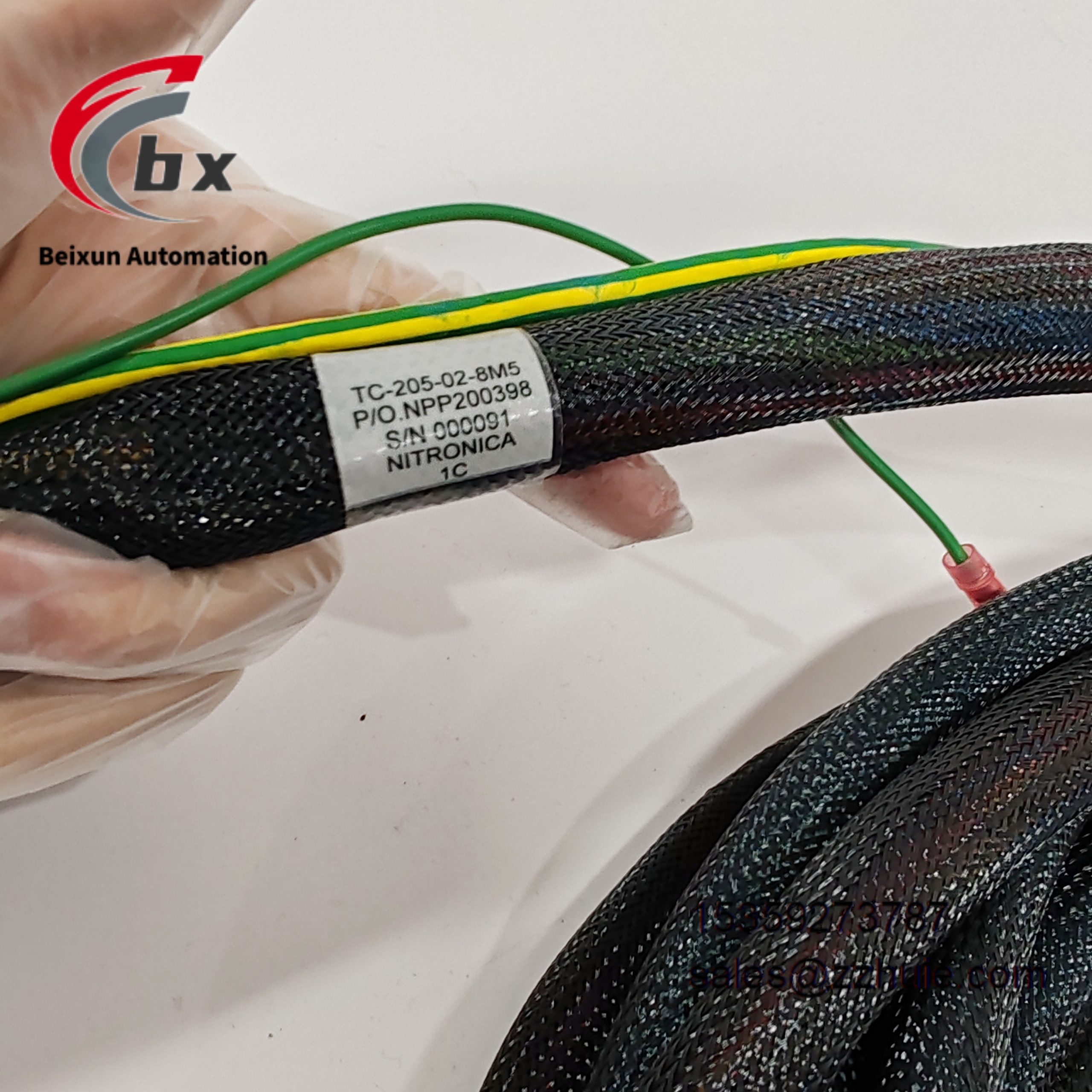

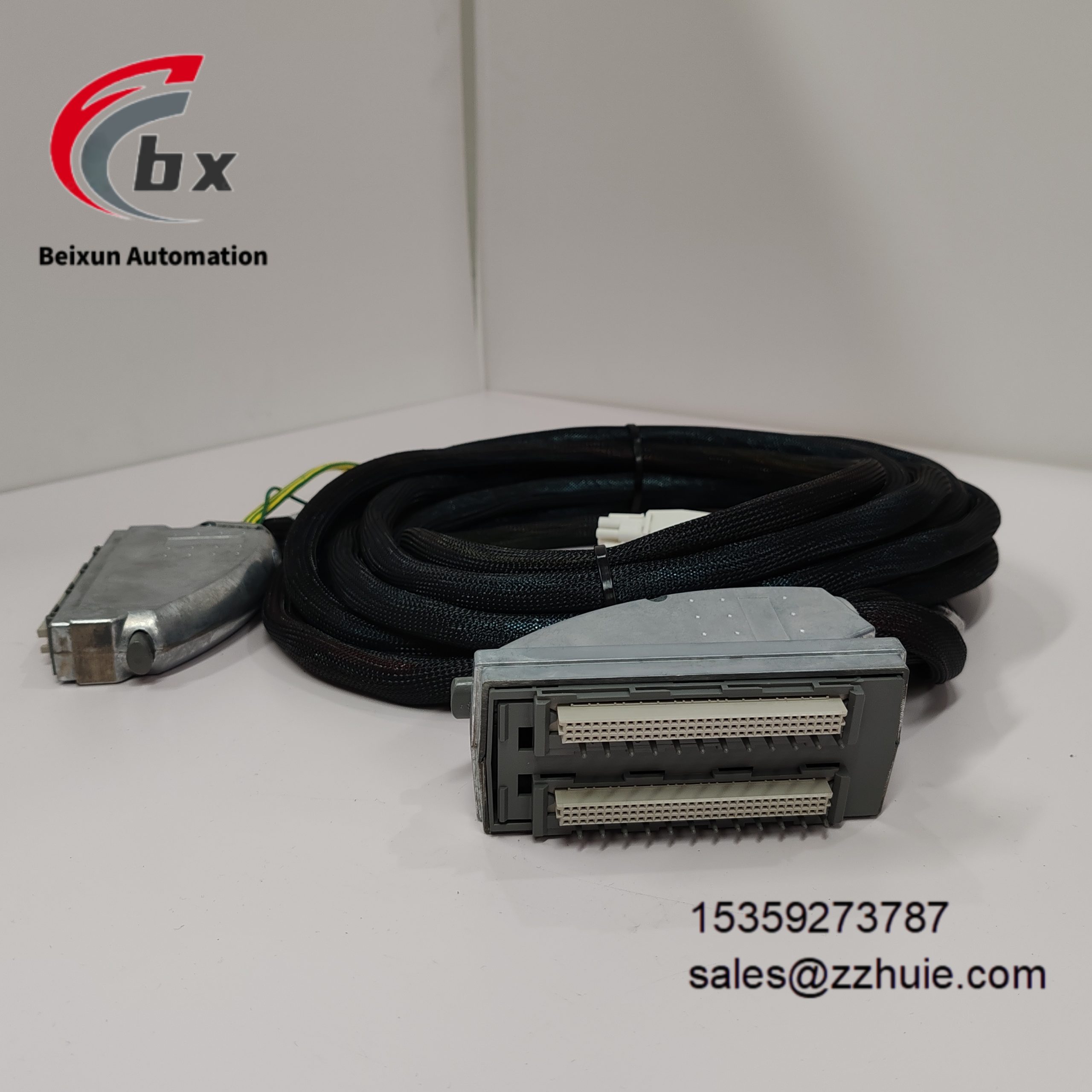

Rockwell TC-205-02-8M5 Signal transmission cable

Specific Parameters

Electrical ParametersTransmission Channels: 40 channels, supporting synchronous transmission of signals and powerFunction Integration: Output to FTA, integrated power supply moduleInsulation Material: Low smoke zero halogen (LS0H), complying with environmental and safety standardsSignal Type: Compatible with digital and analog I/O signals of industrial automation systemsStatus Feedback: With LED indicators, real-time display of signal transmission statusRated Voltage: Compatible with 24V DC industrial control power systemInsulation Resistance: ≥1×10⁸Ω, ensuring anti-interference of signal transmission
Environmental ParametersOperating Temperature: -40℃ to 85℃ (non-condensing environment)Storage Temperature: -55℃ to 105℃Relative Humidity: 5% to 95% (non-condensing)Protection Rating: IP20 (cable itself)Anti-interference Performance: Complies with IEC EMC standards, resisting electromagnetic interference in industrial sites
Mechanical ParametersCable Length: 8.5 metersCable Structure: Round cable, multi-core shielded designHousing/Sheath Material: Oil-resistant and wear-resistant polymer sheathWeight: Approximately 1.2kgMounting Method: Compatible with dedicated interfaces of I/O modules and FTA, direct plug-in connectionIdentification Method: Model, specification and length marked on cable surface

Product Performance

Strong signal transmission stability: 40-channel independent shielding design combined with LS0H insulation material realizes non-attenuation signal transmission; insulation resistance ≥1×10⁸Ω ensures signal integrity in complex electromagnetic environments of industrial sites.

Excellent environmental adaptability: -40℃ to 85℃ wide temperature operating range covers extreme industrial scenarios; oil-resistant and wear-resistant sheath material can resist chemical corrosion and physical wear, meeting long-term use needs in harsh environments.

High safety compliance: Low smoke zero halogen material releases less smoke and no halogen toxic gas in fire scenarios, complying with international environmental and safety certification standards, suitable for personnel-intensive and enclosed industrial spaces.

Convenient system integration: Built-in LED status indicators enable quick troubleshooting of signal faults; directly compatible with Rockwell ControlLogix series I/O modules and FTA components without additional adapters, improving installation and maintenance efficiency.
