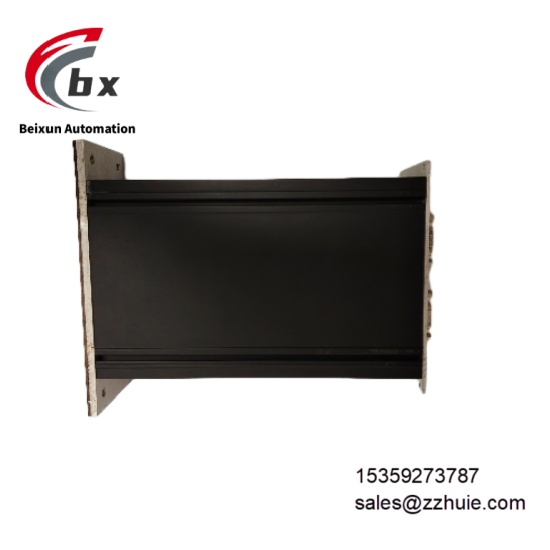

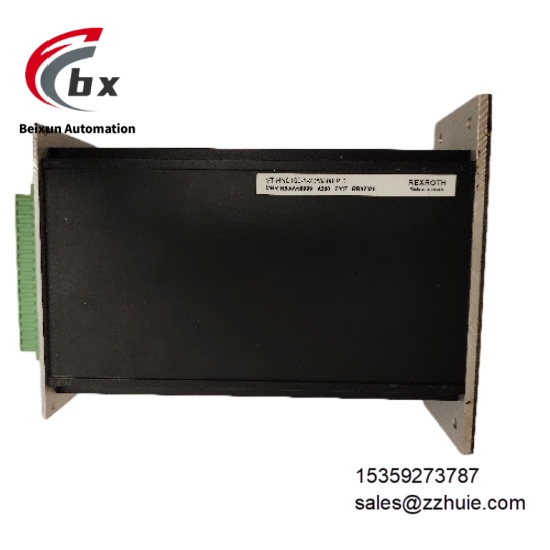

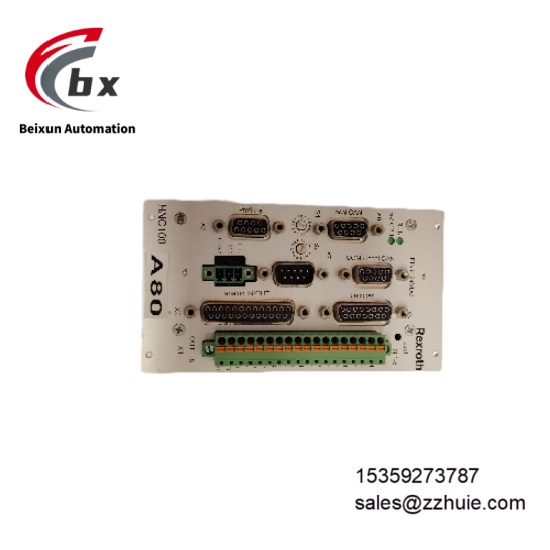

Rexroth VT-HNC100-1-23W-08-S-0 Digital axis control module

Rexroth VT-HNC100-1-23W-08-S-0 Digital axis control module

Specific Parameters

Brand REXROTH (Bosch Rexroth)

Product Series VT-HNC100 Series

Product Type Digital Axis Controller Module, Programmable NC Controller, Single Hydraulic Axis Controller Module

Model VT-HNC100-1-23W-08-S-0

Country of Origin Germany

Order Number R900958999

Processor 16/32-bit MC 68376

Rated Power Supply Voltage 18VDC-36VDC

Power Consumption 8W

Switching Inputs 8/16/24 Channels (Optional), Maximum Conductor Adaptation 1.5mm²

Maximum Current per Channel 30mA

Analog Current Inputs 4 Channels, Input Range 4mA-20mA

Analog Voltage Inputs 4 Differential Type, Input Range ±10V, Input Resistance 200kΩ±2%

Position Sensor Compatibility Incremental Sensor, SSI Sensor, Endat Digital Position Sensor

Sensor Power Supply 2VDC

Storage Specification 1MB Flash EPROM, 8KB EEPROM, 256KB RAM

Operating Temperature Range 0℃ to 50℃

Storage Temperature Range -20℃ to 70℃

Relative Humidity 5% to 95%, Non-Condensing

Physical Dimensions 71mm×155mm×204mm

Physical Weight 1kg

Communication Interface Integrated RS-232 Interface (Data Transfer Rate 9.6kbaud), PROFIBUS DP Serial Interface (Maximum Data Transfer Rate 12Mbaud)

Core Functions Single Hydraulic Axis Closed-Loop Control, Electrohydraulic Axis Position/Speed/Pressure Control, Fault Monitoring

Mounting Method DIN Rail Mounting, Screw Mounting

Certification Standards CE

Warranty Period 12 Months

Product Performance

Adopting a 16/32-bit MC 68376 high-performance processor, it has fast operation speed and high control precision. Specifically designed for 1 hydraulic axis, it can realize high-precision closed-loop control of position, speed and pressure of electrohydraulic axes, adapt to PIDT1 control algorithm, and support fine positioning and synchronization control.

Supports 8/16/24 flexible switching inputs, with a maximum current of 30mA per channel, and is equipped with 4 channels of 4mA-20mA analog current inputs and 4 channels of ±10V differential analog voltage inputs, which can flexibly access various sensors and actuators, adapting to the signal needs of different industrial control scenarios.

Compatible with incremental sensors, SSI sensors and Endat digital position sensors, it can accurately collect position signals. It also has dynamic fault monitoring and cable break monitoring functions, which can timely detect abnormalities of sensors and lines and ensure the stable operation of the control system.

Equipped with integrated RS-232 interface and PROFIBUS DP serial interface, the RS-232 interface has a data transfer rate of 9.6kbaud, and the PROFIBUS DP interface has a maximum data transfer rate of 12Mbaud, which can conveniently realize communication integration with other equipment and improve the overall linkage of the system.

Adopting a modular design with a regular structure, fault units can be quickly identified and replaced without overall disassembly of the equipment, which greatly reduces downtime and improves industrial production efficiency.

It has a wide power supply voltage range, supporting 18VDC-36VDC power supply, with a power consumption of only 8W for energy saving and consumption reduction. It can be seamlessly integrated into various industrial power supply systems without additional power supply conversion modules, with high integration convenience.

It has excellent anti-electromagnetic interference, anti-vibration and anti-shock performance, complies with industrial EMC standards, and can operate stably for a long time in harsh industrial environments with frequent interference and vibration without performance degradation.

Equipped with 1MB Flash EPROM, 8KB EEPROM and 256KB RAM, it has sufficient storage capacity to stably store control programs and operating data. It supports PC programming and local CAN bus parameter configuration, avoids data loss, and ensures continuous and stable control logic.

The operating temperature range covers 0℃ to 50℃, and the storage temperature range reaches -20℃ to 70℃, with strong environmental adaptability, which can adapt to high and low temperature industrial scenarios and has a long service life.

Certified by CE, the product quality and safety performance meet global industrial control standards, and can be directly applied to various high-precision single hydraulic axis control scenarios without additional safety testing.

Adopting dual mounting methods of DIN rail and screw, it is convenient and flexible to install, and can be flexibly selected according to the on-site installation space, adapting to the installation needs of different equipment, with a compact structure and small space occupation.
