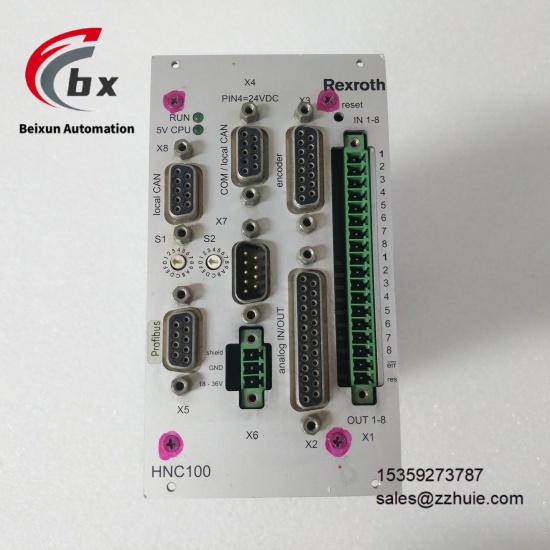

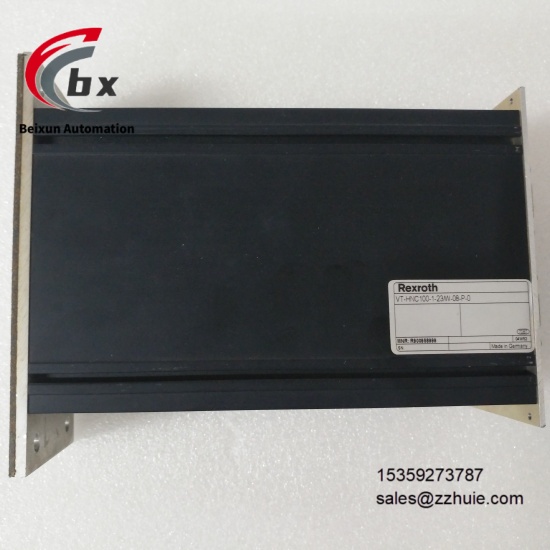

Rexroth VT-HNC100-1-23 W-08-P-0 R00958999 Digital axis controller
Specific Parameters
Brand Rexroth (Bosch Rexroth), Product Series Rexroth VT-HNC100 Series
Product Type Industrial-Grade Digital Axis Controller, High-End Industrial Automation Closed-Loop Control Component, Hydraulic/Electric Drive Control Module, Original Authentic Spare Part
Model Rexroth VT-HNC100-1-23 W-08-P-0 R00958999 (Order Number R00958999, Selection Code W-08-P-0)
Country of Origin Germany (Produced by Bosch Rexroth original factory)
Compatible Devices Hydraulic Drive Systems, Electric Drive Systems, Servo Motors, Servo Valves, Industrial Controllers, Machine Tools, Plastic Processing Machines, Presses, Automated Production Line Equipment, Rail Vehicle Control Equipment
Core Functions Hydraulic/Electric Drive Closed-Loop Control, Precise Regulation of Position/Speed/Pressure, NC Language Programming, Data Acquisition and Processing, PROFIBUS DP Bus Communication, Seamless Coordination with Upper Systems, Fault Detection and Feedback
Controller Type Industrial-Grade High-Performance Digital Axis Controller, Single-Axis Version, Modular Design, Integrated Control Unit and Input/Output Module
Communication Protocols Supports PROFIBUS DP Bus Protocol, Can Be Compatible with Various Industrial Buses and Upper Control Systems
Communication Interfaces 1 PROFIBUS DP Bus Interface, 1 RS232 Serial Interface, Supporting High-Speed Data Interaction with Upper Controllers and Actuators
Programming Method User programming via PC, adopting NC language with subroutine technology and conditional jump, supporting WIN-PED software configuration
Power Supply Voltage 18-36VDC
Rated Power 8W (Connector/Actuator Power Supply)
Input/Output Channels 8 Digital Input Channels, 8 Digital Output Channels
Analog Input 4 Channels of Voltage Input (Differential ±10V), 4 Channels of Current Input (4-20mA), 4 Channels of Impedance Input (±10V)
Analog Output 4 Channels of Voltage Output (±10V), 2 Channels of Current Output (4-20mA/±23mA)
Processor 16/32-bit MC68376
Storage Capacity Flash EPROM: 1MB, eprom: 8kb, Main Memory RAM: 256KB
Position Sensor Power Supply U₀ or +5VDC±5%, Maximum 200mA
Control Accuracy ±0.001°/Pulse
Execution Cycle Up to 100 Microseconds
Operating Temperature Range 0℃ to 50℃
Storage Temperature Range -20℃ to 70℃
Relative Humidity 5% to 95%, Non-Condensing
Physical Dimensions Width 71mm, Height 155mm, Depth 204mm
Physical Weight Approximately 1.0kg
Mounting Method Standard Panel Mounting, Compatible with Industrial Standard Mounting Dimensions, Can Be Directly Connected to Various Equipment Mounting Interfaces, Easy to Integrate into Control Cabinets
Diagnostic Function Built-in Fault Detection Module, Can Real-Time Feedback Controller Operation Status, Communication Status, Input and Output Status, Supports Dynamic Following Error Monitoring, Encoder Disconnection Monitoring, Sensor Disconnection Monitoring, Resets “Error-Free” Output and Deactivates the Controller in Case of Fault
Product Material Industrial-Grade High-Strength Flame-Retardant Plastic Enclosure, High-Temperature Resistant Insulation Material, Built-in Anti-Corrosion and Anti-Electromagnetic Interference Protection Components, Adopting Original PCB Layout
Special Functions Compact Design, Saving Installation Space; Supports Three Control Modes: Position, Speed and Pressure, Can Realize Multi-Axis Synchronous Control; Supports Online/Offline Parameter Setting and NC Program Editing via WIN-PED Software, Adapts to Severe Industrial Anti-Interference and Anti-Vibration Impact Working Conditions
Product Performance
Rexroth VT-HNC100-1-23 W-08-P-0 R00958999 is an original Rexroth device with extremely strong adaptability, which can be perfectly matched with hydraulic drive systems, electric drive systems and various servo actuators, compatible with various industrial controllers and upper systems, seamlessly integrated into various scenarios such as machine tools, plastic processing machines and presses, no additional adaptation components required, greatly reducing system integration complexity and commissioning costs. The product has extremely high control precision, equipped with advanced original Rexroth closed-loop control algorithms, the execution cycle can be as fast as 100 microseconds, and the control precision reaches ±0.001°/pulse, which can realize precise regulation of position, speed and pressure, and can meet the strict requirements of precision machining, hydraulic servo control, multi-axis collaborative operation and other scenarios. The product has outstanding reliability, adopts industrial-grade high-quality components and reinforced packaging design, has excellent anti-electromagnetic interference and anti-vibration impact capabilities, can operate continuously and stably in a temperature environment of 0℃ to 50℃ and harsh working conditions such as dust and strong electromagnetic interference, built-in complete fault detection mechanism and alarm function, can real-time feedback operation abnormalities, avoid equipment damage and extend service life, and can significantly improve production efficiency and product qualification rate. The compact panel mounting design facilitates installation, maintenance and system expansion, adapts to various industrial equipment installation scenarios, supports NC language programming and WIN-PED software configuration, can be put into use without complex commissioning, greatly improving operation and maintenance efficiency, and providing stable, efficient and precise control support for high-end industrial automation, hydraulic servo control, precision machining and other scenarios.
