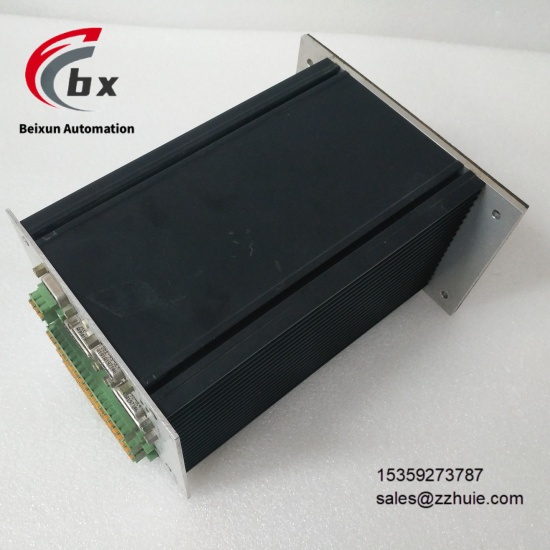

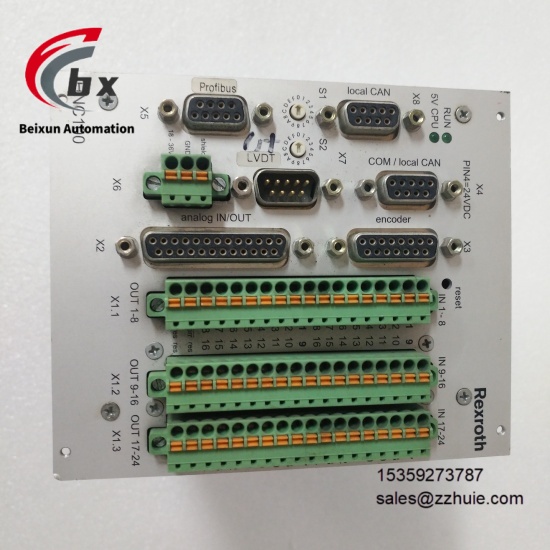

Rexroth SYHNC100-NIB-2X W-24-P-D-E23-A012 R900978416 High performance synchronous servo motor

Rexroth SYHNC100-NIB-2X W-24-P-D-E23-A012 R900978416 High performance synchronous servo motor

Specific Parameters

BrandRexroth (Bosch Rexroth), Product Series Rexroth IndraDyn S Series

Product Type Industrial-Grade Synchronous Servo Motor, High-End Motion Control Executive Component, Industrial Automation Drive Component, Original Authentic Spare Part

Model Rexroth SYHNC100-NIB-2X W-24-P-D-E23-A012 R900978416 (Order Number R900978416, Selection Code W-24-P-D-E23-A012)

Country of Origin Germany (Produced by Bosch Rexroth original factory)

Compatible Devices All Series of Rexroth Servo Drives, Industrial Controllers, Industrial Robots, Precision Machine Tools, CNC Machining Centers, High-Speed Packaging Machinery, Automated Production Line Equipment

Core Functions High-Precision Position and Speed Control, High Dynamic Response Drive, Built-in Encoder Position Feedback, Brake Control, Fault Detection and Feedback, Seamless Coordination with Servo Drives

Motor Type Permanent Magnet Synchronous Servo Motor, with Brake, Low Inertia Design

Encoder Type High-Resolution Multi-Turn Absolute Encoder, Supporting EnDat 2.2 or HIPERFACE DSL Protocol

Rated Power 7.0kW

Rated Torque 33Nm

Rated Speed 2000rpm

Peak Torque 99Nm

Power Supply Method Compatible with Servo Drive Power Supply, Matching Industrial Standard Servo Power Supply

Connector Model E23 Specification Servo-Specific Connector

Insulation Class Class F (155℃)

Cooling Method Natural Cooling (Surface Cooling)

Protection Class IP65 (IP65 at Shaft Seal, Dust and Water Proof for Body)

Operating Temperature Range -20℃ to 60℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Physical Dimensions Length 120mm, Width 190mm, Height 120mm

Physical Weight Approximately 2.0kg

Mounting Method Standard Flange Mounting, Compatible with Industrial Standard Mounting Dimensions, Can Be Directly Connected to Various Equipment Mounting Interfaces

Diagnostic Function Built-in Fault Detection Module, Can Feedback Motor Operation Status, Encoder Status, Brake Status, Supports Linkage Diagnosis with Drive

Product Material Industrial-Grade High-Strength Cast Iron Enclosure, High-Temperature Resistant Insulation Winding Material, Built-in Anti-Corrosion Protection Components

Special Functions Low Inertia Design Improves Dynamic Response Speed, Adapts to High-Speed Start-Stop Scenarios; Brake Function Ensures Equipment Stop Positioning Accuracy and Prevents Sliding; High Torque Density Design Saves Installation Space

Product Performance

Rexroth SYHNC100-NIB-2X W-24-P-D-E23-A012 R900978416 is an original Rexroth device with extremely strong adaptability, which can be seamlessly compatible with all series of Rexroth servo drives, perfectly matching various high-precision motion control equipment such as industrial robots and precision machine tools, no additional adaptation components required, greatly reducing system integration complexity and commissioning costs. The product has extremely high control precision, equipped with a high-resolution multi-turn absolute encoder, which can achieve millimeter-level precise positioning, combined with permanent magnet synchronous design and low inertia characteristics, the dynamic response is fast, and it can complete high-speed start-stop and precise positioning in a very short time, meeting the strict requirements of high-speed packaging, precision machining and other scenarios. The product has outstanding reliability, adopts industrial-grade high-quality components and reinforced packaging design, IP65 protection level can effectively resist dust and water vapor intrusion, Class F insulation level ensures stable operation in high-temperature environments, built-in complete fault detection mechanism, can real-time feedback operation abnormalities, avoid equipment damage and extend service life. The compact flange mounting design facilitates installation, maintenance and system expansion, adapts to various industrial equipment installation scenarios, can be put into use without complex commissioning, greatly improving operation and maintenance efficiency, and providing stable, efficient and precise motion control support for high-end industrial automation scenarios.
