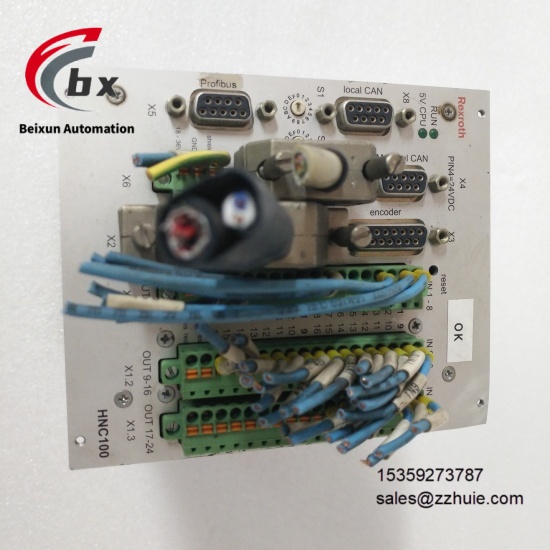

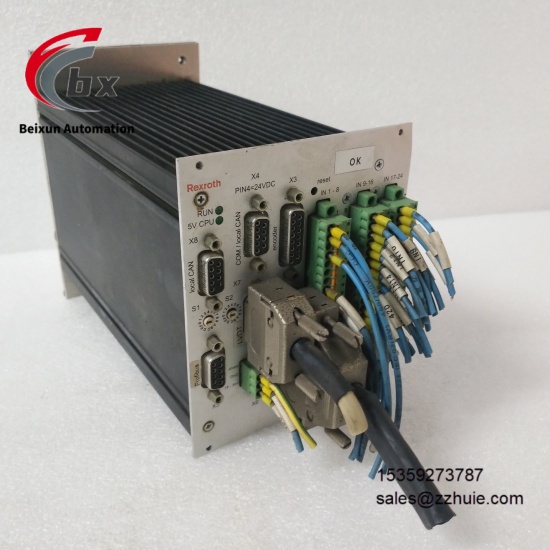

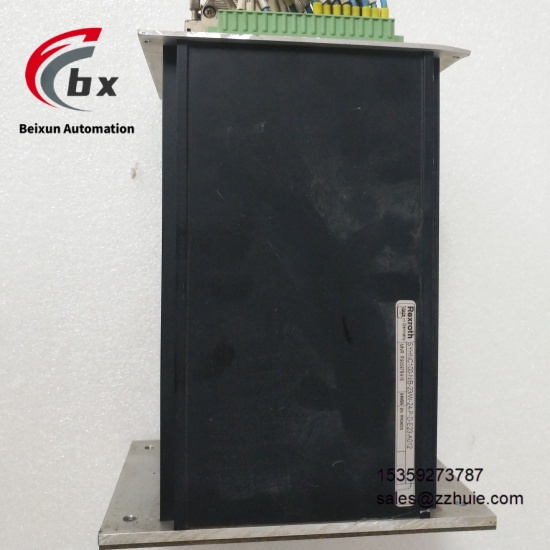

Rexroth SYHNC100-NIB-24-P-D-E23-A012 R900978416 Industrial controller module

Rexroth SYHNC100-NIB-24-P-D-E23-A012 R900978416 Industrial controller module

Specific Parameters

Brand Rexroth (Bosch Rexroth), Product Series Rexroth SYHNC100 Series

Product Type Industrial-Grade Industrial Controller, High-End Industrial Automation Control Component, Servo Motor Control Module, PLC/DCS Card Module, Original Authentic Spare Part

Model Rexroth SYHNC100-NIB-24-P-D-E23-A012 R900978416 (Order Number R900978416, Selection Code P-D-E23-A012)

Country of Origin Germany (Produced by Bosch Rexroth original factory)

Compatible Devices Servo Motors, Servo Valves, Industrial Controllers, Industrial Robots, CNC Machinery, Automated Production Line Equipment, Hydraulic Transmission Systems, Climate Control Systems, Environmental Test Chambers, PLC Systems

Core Functions High-Precision Control of Servo Motors, Precise Regulation of Position and Speed, Monitoring and Regulation of Temperature/Pressure/Flow, Data Acquisition and Processing, E23 Ethernet Communication, Seamless Coordination with Upper Systems, Fault Detection and Feedback

Controller Type Industrial-Grade High-Performance Industrial Controller, Modular Design, Integrated Control Unit and Input/Output Module

Communication Protocols Supports Ethernet-related Protocols, Modbus Protocol, Compatible with E23 Communication Interface Specifications, Can Be Compatible with Various Industrial Buses and Upper Control Systems

Communication Interfaces 1 E23 Ethernet Communication Interface, 1 RS485 Communication Interface, Supporting High-Speed Data Interaction with Upper Controllers and Servo Motors

Power Supply Voltage 24VDC

Rated Power 24W

Input/Output Channels 16 Input Channels, 16 Output Channels, Supporting Multiple Analog Input/Output

Control Accuracy ±0.5℃ (Temperature), ±2%RH (Humidity), ±0.01mm (Positioning)

Response Delay ≤0.8ms

Output Frequency 50kHz

Operating Temperature Range -10℃ to 50℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 0% to 100%, Non-Condensing

Protection Class IP23

Physical Dimensions Length 115mm, Width 190mm, Height 120mm (Including Baseplate)

Physical Weight Approximately 1.8kg

Mounting Method Standard Panel Mounting, Compatible with Industrial Standard Mounting Dimensions, Can Be Directly Connected to Various Equipment Mounting Interfaces, Easy to Integrate into Control Cabinets

Diagnostic Function Built-in Fault Detection Module, Can Real-Time Feedback Controller Operation Status, Communication Status, Input and Output Status, Supports Linkage Diagnosis with Upper Systems, Quickly Locate Faults, and Has Out-of-Range Alarm Function

Product Material Industrial-Grade High-Strength Flame-Retardant Plastic Enclosure, High-Temperature Resistant Insulation Material, Built-in Anti-Corrosion and Anti-Electromagnetic Interference Protection Components, Adopting Original PCB Layout

Special Functions Compact Design, Saving Installation Space; Supports Three Control Modes: Position, Speed and Torque; Can Realize Dual Functions of Servo Control and Environmental Control; High Integration Design, Can Complete Precise Control Without Additional Components, Supports Programmable Set Points and Control Parameters, Adapts to Working Conditions with Voltage Fluctuation of ±10%

Product Performance

Rexroth SYHNC100-NIB-24-P-D-E23-A012 R900978416 is an original Rexroth device with extremely strong adaptability, which can be perfectly matched with servo motors and servo valves, compatible with various industrial controllers, PLC systems and upper systems, seamlessly integrated into various scenarios such as industrial robots, CNC machinery, automated production lines and hydraulic transmission systems, no additional adaptation components required, greatly reducing system integration complexity and commissioning costs. The product has extremely high control precision, equipped with advanced original Rexroth control algorithms, can realize high-precision position and speed control of servo motors, and complete precise regulation of parameters such as temperature, pressure and flow, millisecond-level dynamic response speed, positioning accuracy up to ±0.01mm, and can meet the strict requirements of high-speed packaging, precision machining, robot collaborative operation, precise environmental control and other scenarios. The product has outstanding reliability, adopts industrial-grade high-quality components and reinforced packaging design, has excellent anti-electromagnetic interference and anti-shock capabilities, can operate continuously and stably in a temperature environment of -10℃ to 50℃ and harsh working conditions such as dust, strong electromagnetic interference and voltage fluctuation, built-in complete fault detection mechanism and alarm function, can real-time feedback operation abnormalities, avoid equipment damage and extend service life, can increase the production cycle by more than 15%, and greatly reduce the unplanned downtime of the production line. The compact panel mounting design facilitates installation, maintenance and system expansion, adapts to various industrial equipment installation scenarios, has a user-friendly operation interface, can be put into use without complex commissioning, greatly improving operation and maintenance efficiency, and providing stable, efficient and precise control support for high-end industrial automation, hydraulic transmission, precision control, environmental control and other scenarios.
