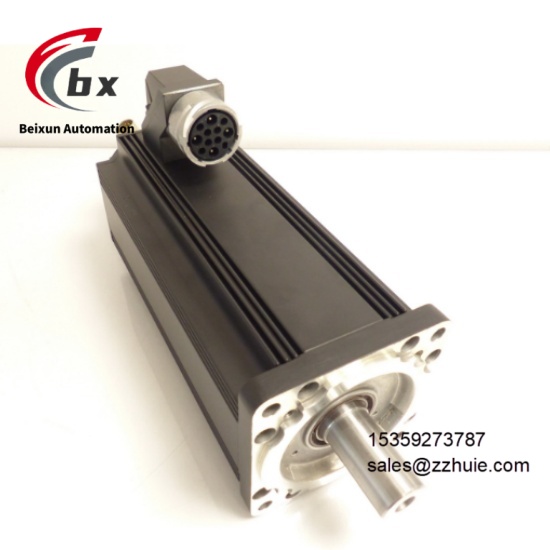

Rexroth MHD095C-058-NG1-RN Three phase permanent magnet synchronous servo motor

Rexroth MHD095C-058-NG1-RN Three phase permanent magnet synchronous servo motor

Specific Parameters

Brand Rexroth (Bosch Rexroth), Product Series Rexroth Indramat MHD Series

Product Type Industrial-Grade Three-Phase Permanent Magnet Synchronous Servo Motor, Industrial Automation Drive Component, High-Performance Motion Control Executive Component, Original Authentic Spare Part

Model Rexroth MHD095C-058-NG1-RN (Order Number R911295991, Frame Size 095, Winding Code 058)

Country of Origin Germany (Produced by Bosch Rexroth original factory)

Compatible Devices Rexroth IndraDrive Series Servo Drives, PLC Systems, CNC Systems, Automated Production Line Equipment, Machine Tool Equipment, Robot Equipment, Printing and Packaging Equipment

Core Functions Efficient Conversion of Electrical Energy to Mechanical Energy, Stable Torque Output, High-Precision Speed and Position Control, Relative Position Detection, Fault Detection and Feedback, Seamless Coordination with Servo Drives

Motor Type Three-Phase Permanent Magnet Synchronous Servo Motor, Brushless Design, Compact Structure

Encoder Type Digital Servo Feedback Encoder (HSF), Supporting Relative Position Detection

Rated Power 5.8kW

Rated Voltage 3×400VAC

Rated Current 15A

Rated Speed 3000rpm

Maximum Speed 6000rpm

Output Frequency 55KHZ

Cooling Method Natural Cooling (Natural Convection Cooling)

Protection Class IP65 (Fully Sealed, IP65 Protection Level at Shaft Seal)

Insulation Class Class F

Bearing Type Lifelong Lubricated Bearings, Maintenance-Free Design

Flange Size 150mm, Centering Diameter 130mm

Operating Temperature Range 0℃ to 40℃

Storage Temperature Range -20℃ to 70℃

Relative Humidity 5% to 95%, Non-Condensing

Physical Dimensions Length 165mm, Width 225mm, Height 270mm

Physical Weight Approximately 22kg

Mounting Method Standard Flange Mounting, Compatible with Industrial Standard Mounting Dimensions, Can Be Directly Connected to Various Equipment Mounting Interfaces, Easy to Install

Diagnostic Function Built-in Overload Protection, Over-Temperature Protection, Undervoltage Protection Functions, Equipped with Thermal Sensor, Can Issue Overload Warning to Avoid Equipment Damage

Product Material Industrial-Grade High-Strength Sealed Enclosure, Advanced Magnetic Materials, High-Temperature Resistant Insulation Winding Materials, Built-in Anti-Corrosion and Anti-Electromagnetic Interference Protection Components

Special Functions Compact Design, Saving Installation Space; Brushless Design Improves Operation Stability, Lifelong Lubricated Bearings Realize Maintenance-Free Operation; High-Efficiency Energy Conversion, Low Noise and Smooth Operation; IP65 Protection Level Can Adapt to Harsh Working Conditions with Dust and Humidity, and Has High Overload Capacity

Product Performance

Rexroth MHD095C-058-NG1-RN is an original Rexroth device with extremely strong adaptability, which can be perfectly matched with Rexroth IndraDrive series servo drives, compatible with various PLC and CNC systems, seamlessly integrated into various scenarios such as machine tools, robots and automated production lines, no additional adaptation components required, greatly reducing system integration complexity and commissioning costs. The product has extremely high control precision, equipped with a digital servo feedback encoder and advanced permanent magnet synchronous technology, which can realize precise speed and position control, smooth operation and small vibration, and can meet the strict requirements of precision machining, high-speed packaging, robot collaborative operation and other scenarios. The product has outstanding reliability, adopts industrial-grade high-quality components and fully sealed packaging design, lifelong lubricated bearings realize maintenance-free operation, IP65 protection level can effectively resist dust and water vapor intrusion, Class F insulation level ensures stable operation in high-temperature environments, built-in complete overload, over-temperature and undervoltage protection mechanisms, can real-time feedback operation abnormalities, avoid equipment damage and extend service life. The compact structure design facilitates installation, maintenance and system expansion, adapts to various industrial equipment installation scenarios, can be put into use without complex commissioning, high-efficiency energy conversion can reduce energy consumption, low-noise operation improves working environment comfort, and provides stable, efficient and precise power support for high-end industrial automation, precision machining, robot technology and other scenarios.
