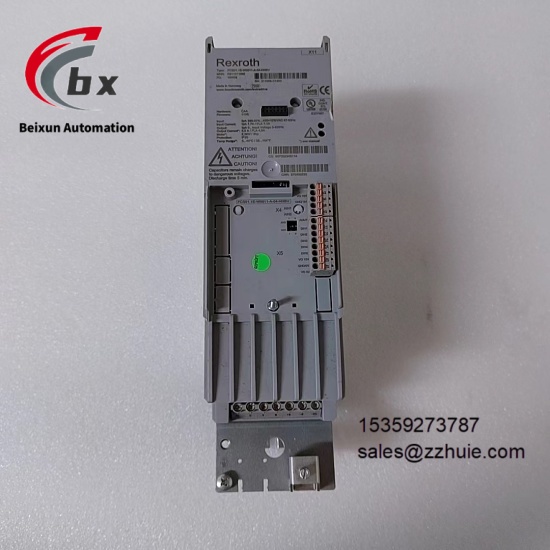

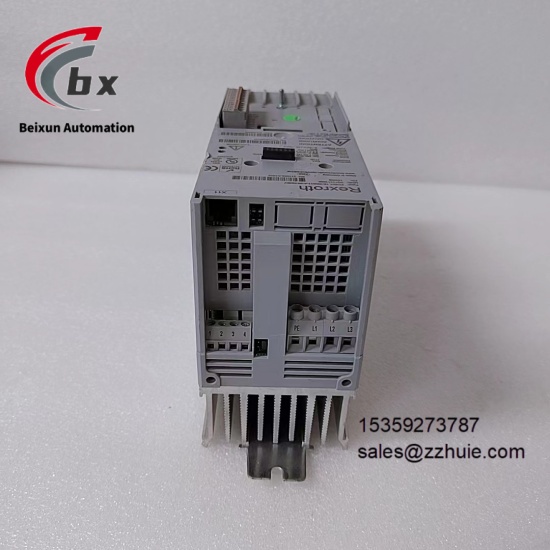

Rexroth FCS01.1E-W0011-A-04-NNBV R911311065 AC Drive

Rexroth FCS01.1E-W0011-A-04-NNBV R911311065 AC Drive

Specific Parameters

Brand REXROTH (Bosch Rexroth)

Product Series IndraDrive Fc Series

Product Type AC Inverter Drive, Industrial Motor Drive Controller

Model FCS01.1E-W0011-A-04-NNBV

Order Number R911311065

Country of Origin Germany

Rated Output Power 2.2kW (3.0HP)

Input Voltage 380-480V Three-Phase, Allowable Fluctuation -20%/+10%

Input Frequency 50/60Hz, Allowable Fluctuation ±5%

Rated Output Current 5.5A

Output Frequency Range 0-400Hz

Control Mode V/f Control, Sensorless Vector Control

Pulse Frequency 3kHz-16kHz, Standard Setting 6kHz

Overload Capacity 150% Rated Current for 60 Seconds, 200% Rated Current for 3.5 Seconds

Communication Interface RS232, RS485, Supporting Modbus RTU Protocol

Analog/Digital Inputs 2 Analog/Digital Inputs, 5 Digital Inputs

Analog Output 1 Channel, Scalable 0-10V

Relay Output 2 Groups of NO/NC Contacts, 28VDC/230VAC, 2A

Cooling Mode Internal Air Cooling, Integrated Blower

Protection Level IP20 (Suitable for Cabinet Installation)

Physical Dimensions 73mm×153mm×226mm (260mm High with Wall Mount Bracket)

Physical Weight 1.8kg

Operating Temperature Range 0℃ to 40℃ (S1-100% Duty Cycle), 0℃ to 50℃ (S3-75% Duty Cycle for 10 Minutes)

Storage Temperature Range -25℃ to 70℃

Relative Humidity 5% to 95%, Non-Condensing

Mounting Method Cabinet Mounting, Wall Mounting

Programming Method Supporting Programming and Configuration via IndraWorks Software and PC Connection Cable

Certification Standards CE, UL, cUL, Compliant with EN 61800-5-1, IEC/EN 55011 Class A Standards

Warranty Period 12 Months

Product Performance

Adopting dual modes of V/f control and sensorless vector control, it has high control precision, which can provide accurate speed and torque control for 400V three-phase AC induction motors, optimize the production process and improve equipment operation efficiency.

It has strong overload capacity, which can withstand 150% rated current for 60 seconds or 200% rated current for 3.5 seconds, and can stably cope with dynamic load fluctuations in industrial scenarios to ensure continuous and reliable operation of equipment.

The pulse frequency can be continuously adjusted within the range of 3kHz-16kHz, which can optimize performance and reduce operating noise according to motor operation needs, adapting to different noise-sensitive industrial scenarios.

Integrated with RS232 and RS485 communication interfaces, supporting Modbus RTU protocol, it can conveniently realize data exchange and parameter configuration with the upper control system, improving the overall linkage of the system.

Equipped with 2 analog/digital inputs, 5 digital inputs, 1 analog output and 2 groups of relay outputs, it can flexibly connect various external control and feedback equipment with strong compatibility.

Built-in DC bus terminal, supporting common bus energy feedback, effectively improving energy utilization efficiency and meeting the needs of industrial energy saving and consumption reduction.

Adopting internal air cooling design with integrated dedicated blower, it has high heat dissipation efficiency, which can ensure the inverter operates stably for a long time under rated load without performance degradation.

Compliant with industrial EMC standards, it has excellent anti-electromagnetic interference performance, and can operate stably in harsh industrial environments with dense inverters, avoiding operational abnormalities caused by external interference.

Adopting a compact Book Size B design with small volume and small installation space, it supports two mounting methods: cabinet mounting and wall mounting. It can be installed side by side without additional ventilation space, featuring convenient and flexible installation.

Supporting programming and configuration via IndraWorks software, it is convenient for debugging and maintenance. Parameter setting and fault diagnosis can be quickly completed through PC, reducing equipment maintenance costs.

The operating temperature range covers 0℃ to 50℃ (different duty cycles), and the storage temperature range reaches -25℃ to 70℃, with strong environmental adaptability, which can adapt to various industrial high and low temperature scenarios.

Certified by CE, UL, cUL and other certifications, the product quality and safety performance meet global industrial drive standards, and can be directly applied to various industrial automation scenarios without additional safety testing.
