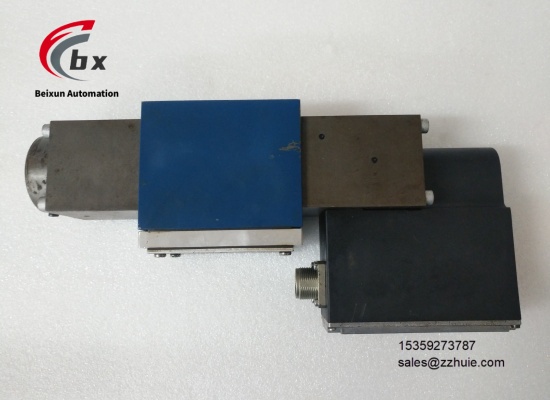

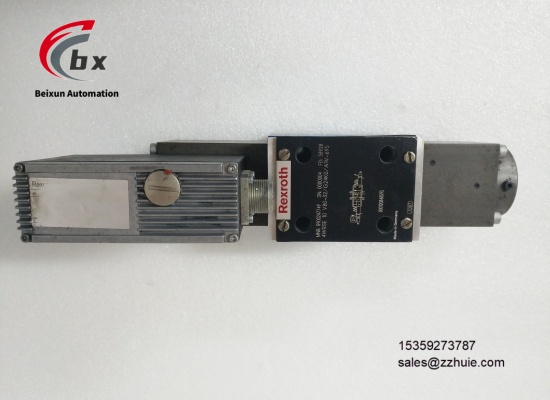

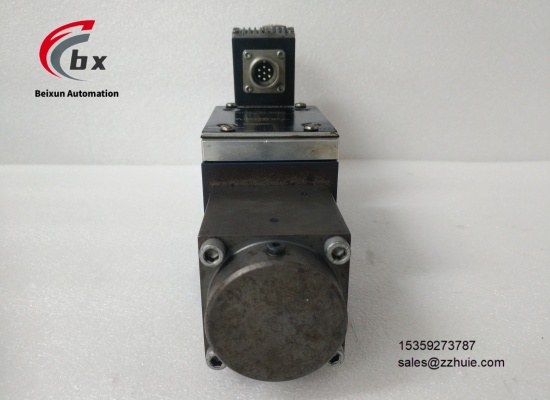

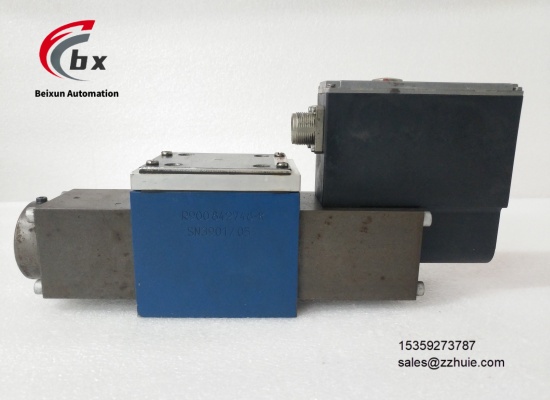

Rexroth 4WRSE10V80-32 G24K0 A1V-695 R900247749 High frequency proportional directional valve
Specific Parameters
Brand REXROTH (Bosch Rexroth)
Product Series 4WRSE Series
Product Type Direct-Acting 4/3-Way Proportional Directional Valve, High-Response Proportional Valve
Model 4WRSE10V80-32 G24K0 A1V-695
Order Number R900247749
Country of Origin Germany
Component Series 3X Series (30-39, Unchanged Installation and Connection Dimensions)
Valve Structure Direct-Acting 4/3-Way Proportional Directional Valve
Maximum Operating Pressure 315bar
Maximum Flow Rate 180L/min
Rated Flow Rate 75L/min (Under 10bar Valve Pressure Difference)
Control Voltage 24VDC
Setpoint Input ±10V (A1 Interface)
Feedback Type Electrical Position Feedback (Inductive Displacement Sensor)
Seal Type Fluororubber (FKM)
Suitable Media Mineral Oil (HL, HLP, Compliant with DIN 51524), Phosphate Ester (HFD-R)
Electrical Connection With DIN43563-AM6 Device Plug (K0), No Cable Socket
Mounting Surface Standard Compliant with DIN24340 Type A, ISO4401, CETOP-RP 121H
Protection Level IP65
Physical Weight 5.6kg
Operating Temperature Range 0℃ to 50℃
Storage Temperature Range -20℃ to 70℃
Control Precision ±1.0% (Flow Control Precision)
Certification Standards CE
Warranty Period 12 Months
Product Performance
Adopting a direct-acting 4/3-way structure, integrating electrical position feedback and integrated electronic components (OBE), the control precision reaches ±1.0%, which can precisely control the direction and volume flow of hydraulic fluid, adapt to position and speed closed-loop control scenarios, and has extremely strong control stability.
It has high response sensitivity and low hysteresis characteristics. The inductive displacement sensor can real-time feedback the spool position, ensuring fast response of control commands without obvious lag, and improving the dynamic control performance of the hydraulic system.
Using fluororubber (FKM) seals, it has reliable sealing performance, suitable for mineral oil and phosphate ester hydraulic media, which can effectively prevent hydraulic oil leakage and adapt to the media needs of various industrial hydraulic systems.
The maximum operating pressure can reach 315bar, the maximum flow rate is 180L/min, and the rated flow rate is 75L/min, which can adapt to medium-high pressure and medium-high flow hydraulic systems, meeting the control needs of different load scenarios.
The control voltage is 24VDC, the setpoint input is ±10V (A1 interface), and the electrical connection adopts a standard device plug, which is convenient for wiring and can be quickly integrated into various industrial hydraulic control systems.
The mounting surface complies with DIN24340 Type A, ISO4401 and CETOP-RP 121H international standards, with strong installation compatibility, and can directly replace proportional valves of other brands with the same standard specifications, featuring convenient and efficient installation.
The protection level reaches IP65, with excellent dustproof and waterproof performance, and also has strong anti-pollution and anti-vibration capabilities, which can operate stably for a long time in harsh industrial environments with high dust and frequent vibration without performance degradation.
Manufactured with high-quality industrial-grade components, it has a compact structure, high mechanical strength and long service life, which can withstand long-term high-pressure impact of the hydraulic system, reducing equipment maintenance costs and downtime.
Certified by CE, the product quality and safety performance meet global industrial hydraulic control standards, and can be directly applied to various high-precision hydraulic control scenarios without additional safety testing.
The component series is 3X Series (30-39), with fixed installation and connection dimensions, which is convenient for subsequent maintenance and replacement, no need to adjust the installation position, and improves maintenance efficiency.
