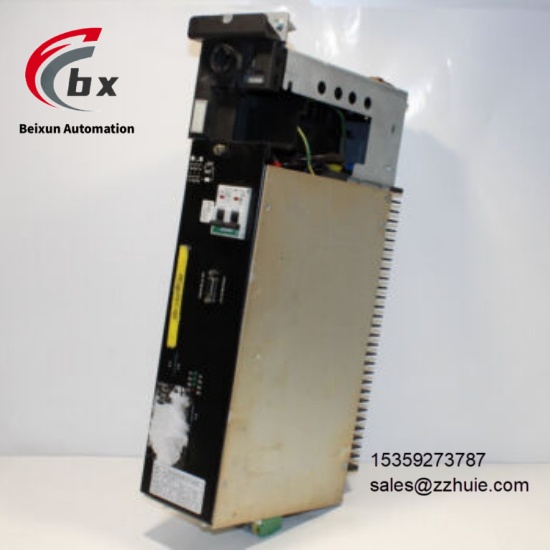

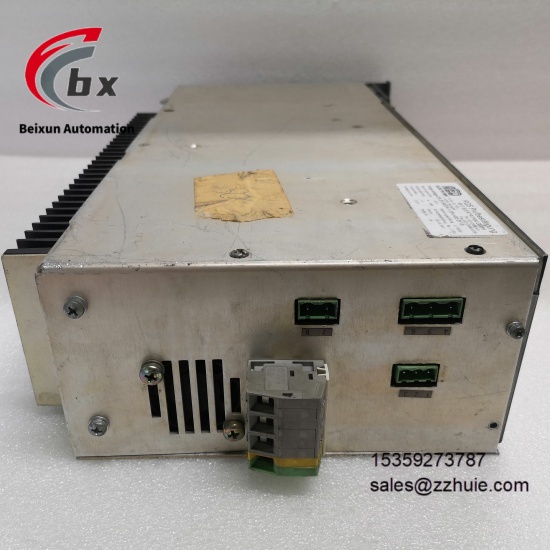

REOTRON 567LH-DP24 DC power module

REOTRON 567LH-DP24 DC power module

SPECIFIC PARAMETERS​

Brand REOTRON​

Product Series 567 Series​

Product Type Industrial-grade Switching Power Supply/DC Power Supply Module​

Input Voltage AC 110-240V±15%​

Input Frequency 50/60Hz​

Output Voltage 24VDC±0.5%​

Output Current 10A​

Peak Output Current 15A for 10 Seconds​

Output Power 240W​

Efficiency ≥90%​

Ripple and Noise ≤50mVp-p​

Working Temperature -25℃ to 70℃​

Storage Temperature -40℃ to 85℃​

Relative Humidity 5% to 95% Non-condensing​

Protection Level IP20​

Size 120mm×60mm×100mm​

Weight 0.4kg​

Installation Method DIN Rail Mounting​

Protection Functions Overcurrent Protection Overvoltage Protection Short Circuit Protection Over-temperature Protection​

Safety Certification CE UL TÜV​

Communication Expansion Support Fieldbus Interface Expansion​

PRODUCT PERFORMANCE​

Has an output voltage accuracy of ±0.5%, can maintain stable 24VDC output under wide input voltage fluctuations of 110-240VAC, ensuring the power supply quality of precision equipment​

Integrates four intelligent protection circuits, which can respond quickly under abnormal working conditions such as overcurrent, overvoltage, short circuit and over-temperature, and prevent equipment damage due to power supply failures​

Adopts advanced switching power supply technology with power conversion efficiency ≥90%, which can effectively reduce system energy consumption and heat dissipation pressure​

Ripple and noise are controlled within 50mVp-p, providing pure power for sensitive electronic components and avoiding signal interference​

Supports hot-swappable function, which can complete module replacement without interrupting system operation and reduce equipment downtime risk​

Uses industrial-grade wide-temperature components, which can operate continuously and stably in extreme temperature environments of -25℃ to 70℃​

Has high electromagnetic interference resistance, which can resist the impact of strong electromagnetic environment on the power supply link in industrial sites​

Compact DIN rail design greatly saves control cabinet installation space while providing 240W power output​

Supports modular redundancy configuration, can realize system-level power supply backup through multi-module parallel connection, and improve power supply reliability​

Adapt to mainstream PLC and DCS control systems, and can directly supply power to equipment such as Siemens S7-1500 and ABB AC800M​
