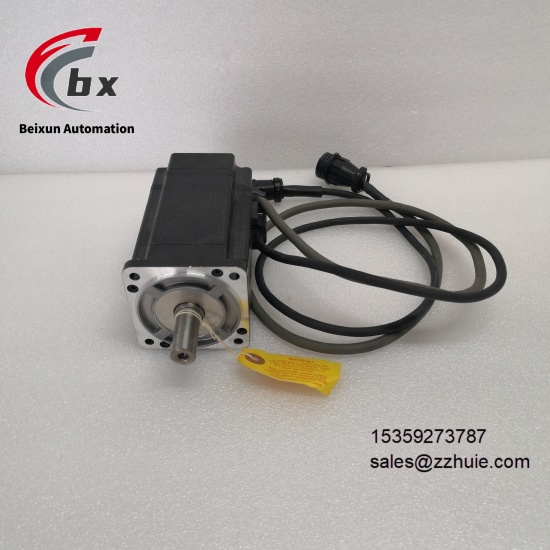

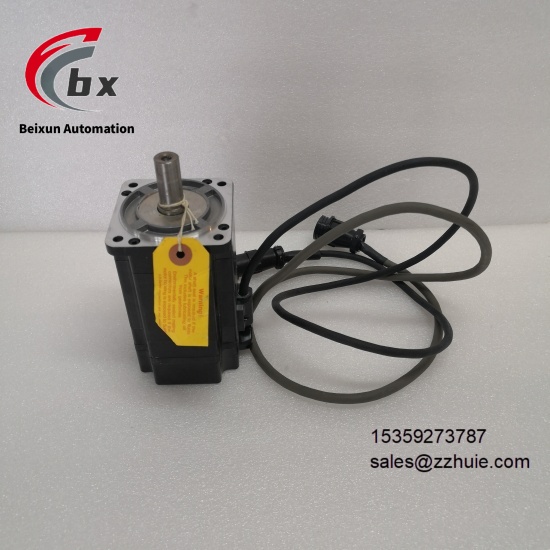

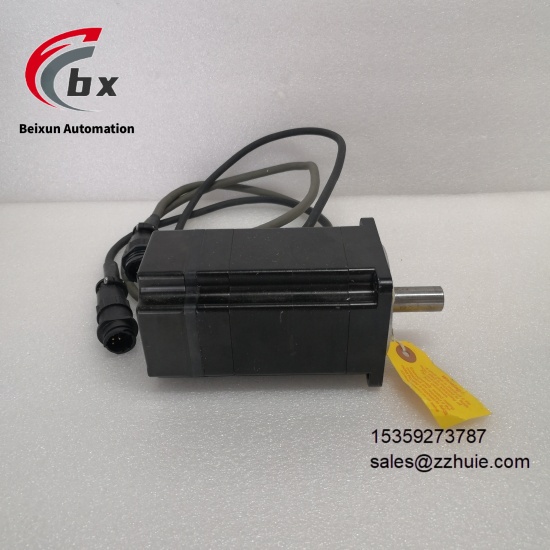

RELIANCE Y-3023-2-H00AA Brushless servo motor

RELIANCE Y-3023-2-H00AA Brushless servo motor

Specific Parameters​

Core and Motor Parameters​

Product Type Three-phase AC brushless servo motor​

Series Allen-Bradley Y Series​

Frame Size 3023​

Motor Poles 8 poles​

Rated Speed 4500 RPM​

Continuous Stall Torque 2.5 Nm​

Encoder Type Incremental optical encoder​

Encoder Resolution 2000 PPR (lines per revolution)​

Brake Configuration No brake​

Mounting Flange Standard IEC metric system​

Electrical and Interface Parameters​

Rated Voltage 230V AC​

Encoder Power Supply Voltage 5V DC​

Insulation Class Class F​

Shaft Diameter 16 mm​

Maximum Radial Load 35 kg​

Compatible Drive Models 1398-DDM-019, 1398-DDM-020, 2093-AM02, 2094-AM02, 2098-DSD-020​

Environmental and Physical Parameters​

Operating Temperature Range 0°C to 40°C​

Storage Temperature Range -40°C to 40°C​

Protection Class IP43​

Overall Dimensions 140mm×80mm×80mm​

Weight 3.9 kg​

Warranty Period 12 months​

Product Performance​

High control precision, 2000 PPR encoder combined with closed-loop feedback enabling micrometer-level position control​

Fast dynamic response, low inertia design and neodymium magnet drive meeting rapid acceleration and deceleration requirements​

Strong operational stability, brushless structure reducing wear, optimized thermal management suppressing temperature rise​

Low maintenance requirements, no carbon brush wear, long-life design reducing equipment downtime for maintenance​

Excellent adaptability, compatible with multiple servo drives supporting modular system integration​

Good installation flexibility, IEC standard flange and compact size adapting to various equipment installation spaces​

Strong load-bearing capacity, 35 kg maximum radial load adapting to heavy-duty actuators​

Reliable signal feedback, incremental encoder providing real-time position signals ensuring control loop integrity​
