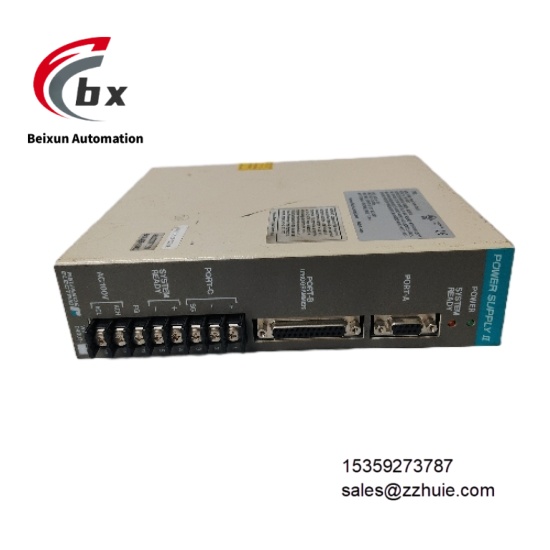

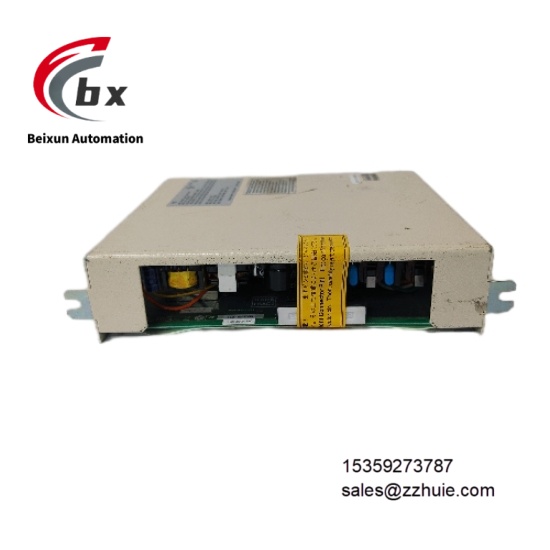

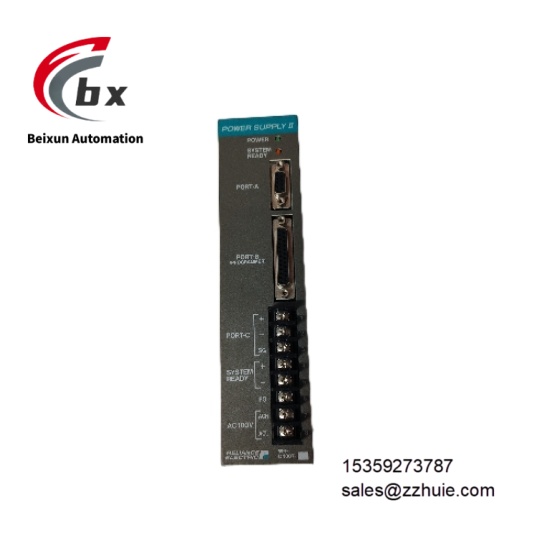

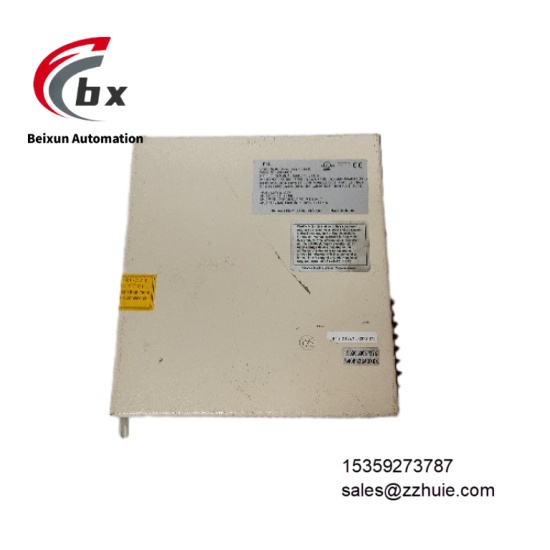

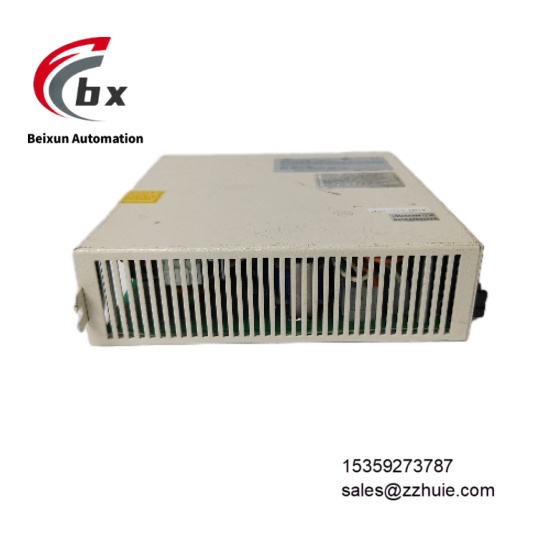

RELIANCE WR-D4007 Power supply and digital control module

RELIANCE WR-D4007 Power supply and digital control module

Specific Parameters​

Core and Signal Parameters​

Device Type Industrial-grade multi-functional power control module​

Series Reliance Electric Industrial Automation Module Series​

Core Functions DC power supply, digital logic control​

Supported Signal Types Discrete input signals, switch signals, sensor signals​

Control Response Speed 1ms​

Output Frequency 50kHz​

Programmability Supports user programming for control functions​

Electrical and Communication Parameters​

Input Voltage Range 180VDC to 264VAC​

Output Voltage Stable 24VDC​

Continuous Output Current 7A​

Peak Output Current 10A​

Continuous Output Power 84W​

Peak Output Power 168W​

Conversion Efficiency ≥90%​

Input Frequency 50Hz​

Communication Interfaces Ethernet, RS-232, RS-485​

Protection Functions Overvoltage protection, overcurrent protection, short-circuit protection, undervoltage protection​

Overall Dimensions Compact design​

Weight Approximately 2kg​

Environmental and Reliability Parameters​

Operating Temperature Range -20℃ to +60℃​

Storage Temperature Range -20℃ to +70℃​

Relative Humidity 10% to 90% (non-condensing)​

Protection Class IP65​

Security Functions Supports 4 VPN tunnels, firewall, MAC address filtering, DoS defense​

Product Performance​

Strong dual-function integration, achieving stable power supply and precise control simultaneously, simplifying system architecture​

Excellent power supply stability, low ripple output combined with 90% high conversion efficiency reducing energy loss​

High control precision, 1ms fast response and advanced algorithms ensuring real-time control accuracy​

Good configuration flexibility, supporting programming expansion and modular combination adapting to diverse application needs​

Excellent communication expandability, multi-interface and protocol support enabling device interconnection and remote access​

Strong environmental tolerance, wide temperature operating range and IP65 protection resisting dust, water mist and temperature fluctuations​

Comprehensive safety protection, multiple electrical protection and network security functions ensuring system operation safety​

Good installation adaptability, compact design suitable for space-constrained scenarios simplifying cabinet layout​
