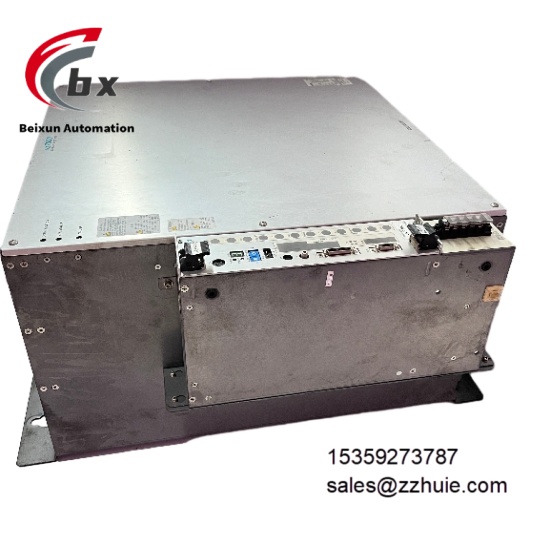

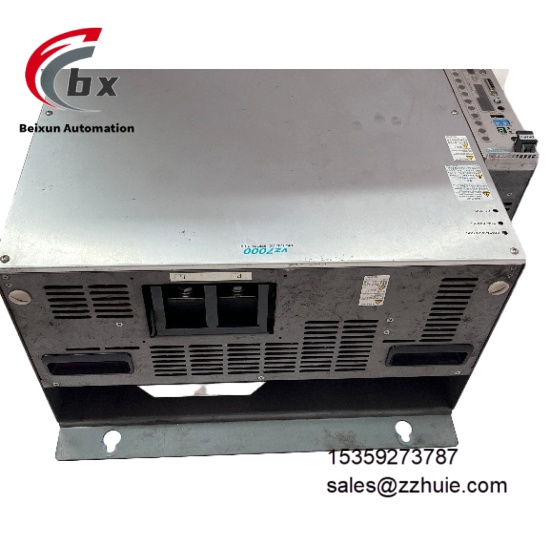

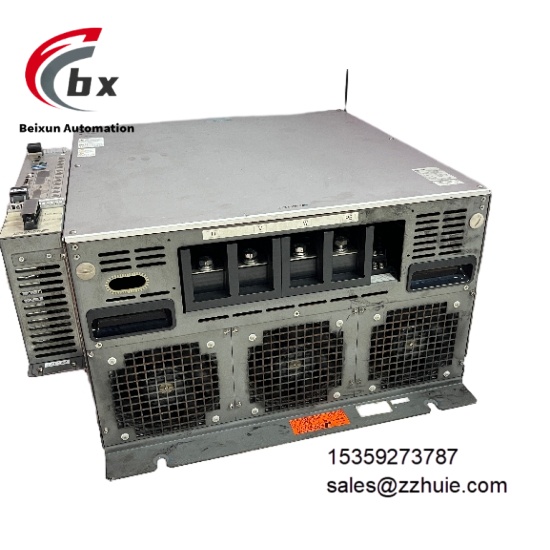

RELIANCE VZ7000 UVZ701E Digital communication servo drive

RELIANCE VZ7000 UVZ701E Digital communication servo drive

Specific Parameters

• Electrical ParametersSupply Voltage: Three-phase 200/400V AC, allowable fluctuation range ±10%, 50/60HzPower Adaptation Range: 1.5kW to 600kW AC servo motorsControl Modes: Position control, speed control, torque control, supporting seamless on-line mode switchingSpeed Control Range: 1:2000 (analog reference), 1:8000 (digital reference)Frequency Response: ≥1256 rad/sCommunication Interfaces: Standard SERCOS digital communication interface for high-speed synchronous communication; reserved RS-485 interface (compatible with Modbus RTU)Feedback Support: Compatible with high-resolution encoder (1,000,000 pulses/rev), serial absolute encoder, incremental encoderProtection Functions: Overcurrent, overvoltage, undervoltage, overheating, motor overload, short-circuit, ground fault protection; control circuit overcurrent protection action value 2AControl Power Supply: Independent of main circuit power supply, capable of maintaining parameter setting and status monitoring after main circuit power-off
• Environmental ParametersOperating Temperature: -10°C to 60°C (non-condensing environment, no derating)Storage Temperature: -40°C to 85°CRelative Humidity: 5% to 95% (non-condensing, continuous operation for 168 hours at 90% humidity and 40°C without failure)Vibration Resistance: Acceleration ≤1G at 25Hz (complies with IEC 60068-2-6 standard)Shock Resistance: 15g acceleration, 11ms duration (complies with IEC 60068-2-27 standard, half-sine shock waveform)Certification Standards: CE certification (EMC and safety compliance)
• Mechanical ParametersDimensions: 420mm (L) × 230mm (W) × 170mm (H) (including heat sink)Weight: Approximately 10kgMounting Method: Chassis mounting, compatible with standard 35mm DIN railHousing Material: Cold-rolled steel plate spraying (corrosion-resistant, protection class IP20)Heat Dissipation: Forced air cooling, built-in temperature-sensing variable-speed fanIndicators: Power (green steady on = normal), Operation (green blinking = working), Fault (red steady on = abnormal), Communication (yellow blinking = normal)

Product Performance

Excellent control precision: Equipped with high-speed DSP chip and high-resolution encoder feedback, the speed fluctuation rate ≤±0.0125% (when load changes 0-100%), positioning error ≤±0.005mm (with million-pulse encoder), meeting the micron-level control requirements of precision processing. Ultra-fast dynamic response: Frequency response ≥1256 rad/s, torque response time ≤5ms when load changes suddenly, no overshoot, suitable for high-dynamic working conditions with frequent start-stop and forward-reverse switching.

Strong communication synchronization: SERCOS digital communication interface achieves multi-axis synchronization error ≤1μs, supporting linkage control of more than 32 axes, suitable for multi-axis collaborative scenarios such as printing and packaging. Outstanding anti-interference capability: Full insulation design of the regulator part and electromagnetic shielding structure can resist high-frequency electromagnetic interference in industrial environments, with signal transmission bit error rate ≤1×10⁻⁹.

Wide system compatibility: Can directly connect to Reliance automation systems and third-party PLCs/motion controllers, supporting on-line parameter modification and firmware upgrade, enabling maintenance without interrupting operation. Excellent reliability: Industrial-grade components and independent control power supply design ensure Mean Time Between Failures (MTBF) ≥1.2×10⁶ hours, adapting to harsh environments with dust and vibration.
