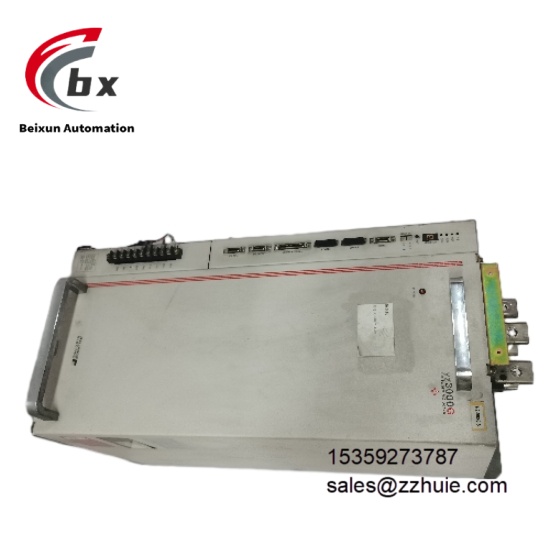

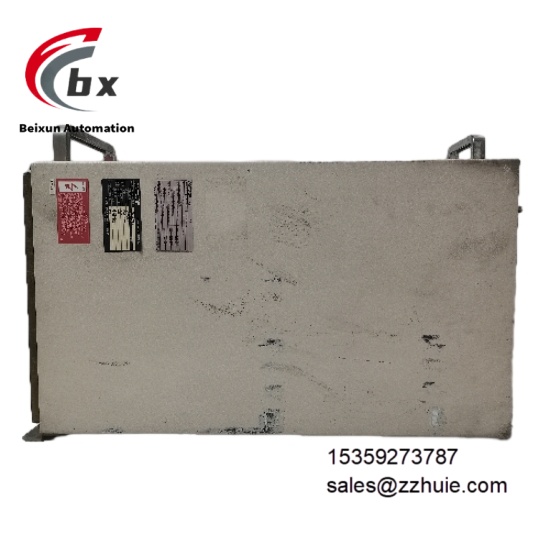

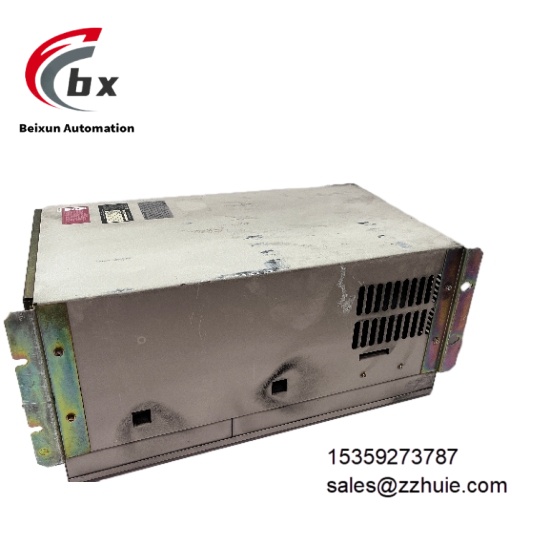

RELIANCE VZ3000G UVZC3455G Digital AC servo controller

RELIANCE VZ3000G UVZC3455G Digital AC servo controller

Specific Parameters

• Electrical ParametersSupply Voltage: Three-phase 200/400V AC, allowable fluctuation range ±10%, 50/60HzPower Rating: Suitable for 55kW servo motorsRated Current: Continuous output current 140A, 1-minute peak output current 210A (standard carrier frequency); continuous output current 126A, peak 189A (low-noise carrier frequency)Control Modes: Position control, speed control, torque control, supporting on-line mode switchingCommunication Interfaces: Standard RS-485 (supports Modbus RTU), reserved 3 RS-232C ports for programming and debuggingControl Signals: 5 analog command inputs, 9 contact signal inputs, 2 analog monitoring outputs, 8 open collector outputsProtection Functions: Overcurrent, overvoltage, undervoltage, overheating, motor overload, short-circuit and ground fault protection; short-circuit symmetrical RMS rating 5kA RMSDetection Feedback: Supports pulse encoder (PG) signal input, which can be directly connected to motor encoder for closed-loop control
• Environmental ParametersOperating Temperature: -40°C to 55°C (non-condensing environment, no derating)Storage Temperature: -55°C to 85°CRelative Humidity: 5% to 95% (non-condensing, continuous operation for 168 hours at 90% humidity and 40°C without failure)Vibration Resistance: 10-500Hz frequency range, 1.0g acceleration (complies with IEC 60068-2-6 standard, 2 hours test for X/Y/Z axes each)Shock Resistance: 20g acceleration, 11ms duration (complies with IEC 60068-2-27 standard, half-sine shock waveform)Certification Standards: UL 508 industrial control equipment certification, CE (EMC and safety certification)
• Mechanical ParametersDimensions: 1173mm (H) × 210mm (W) × 335mm (D) (including heat dissipation structure)Weight: Approximately 27kgMounting Method: Chassis mounting, compatible with standard industrial control cabinetsHousing Material: Cold-rolled steel plate spraying (corrosion-resistant, protection class IP23)Heat Dissipation: Front + bottom forced air cooling, built-in temperature-controlled fanIndicators: 4 green status LEDs, 7-segment nixie tube display, RST status LED, real-time display of speed, current and fault codes

Product Performance

Excellent control precision: Adopting IGBT sinusoidal PWM full digital control technology, the speed fluctuation rate ≤±0.1%, positioning error ≤±0.02mm (with 17-bit encoder), which can meet the high-precision motion requirements of precision processing equipment. Fast dynamic response: Torque response time ≤15ms when load changes suddenly, no overshoot, suitable for heavy-duty working conditions with frequent start-stop and forward-reverse switching.

Comprehensive protection mechanism: Fault detection response time ≤1ms, which can quickly identify abnormalities such as short circuits and overloads, cut off power output, and upload fault information through communication ports. Fault location accuracy reaches the unit level, reducing maintenance troubleshooting time. Strong system compatibility: Supports direct communication with PLCs and motion controllers; modular design facilitates function expansion and unit replacement, and can adapt to the needs of servo motors with different power levels.

Outstanding reliability: Industrial-grade components and wide-temperature design ensure a Mean Time Between Failures (MTBF) ≥1.0×10⁶ hours (MIL-HDBK-217F standard, 25℃ environment), enabling continuous and stable operation in dusty, vibrating, high/low temperature environments.
