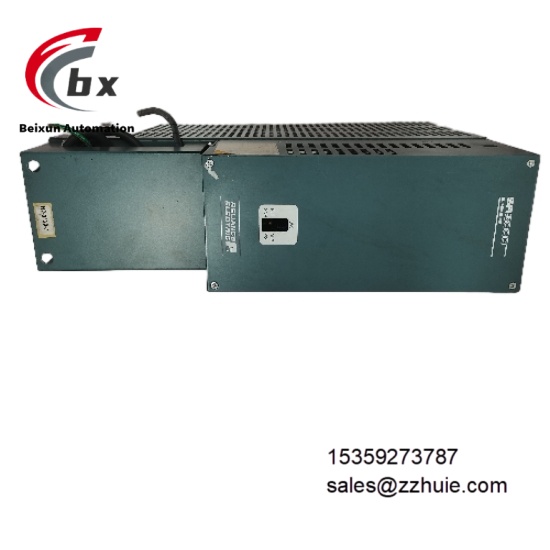

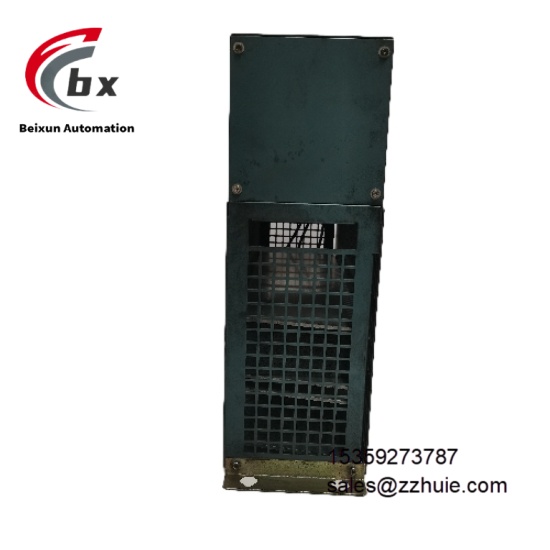

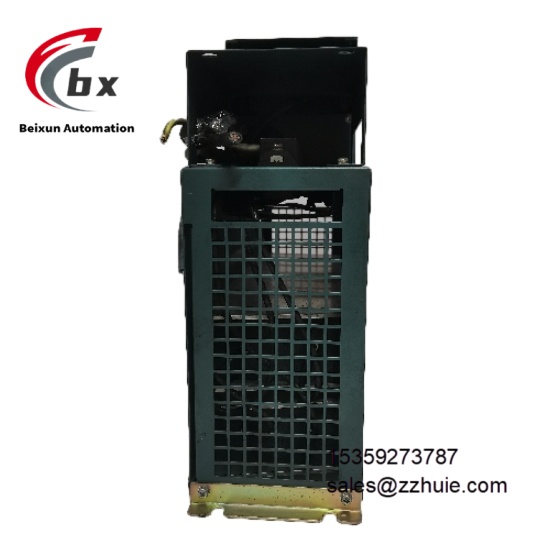

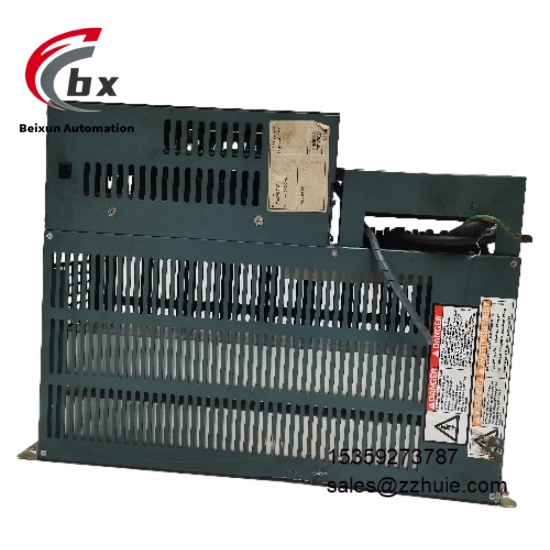

RELIANCE SR3000 2SR40700 Programmable Logic Controller

RELIANCE SR3000 2SR40700 Programmable Logic Controller

Specific Parameters

• Electrical ParametersSupply Voltage: 120/240V AC ±10%, 50/60Hz, rated power consumption ≤15WProcessor: 32-bit ARM Cortex-M4 industrial-grade processor, 168MHz clock speedStorage Configuration: 1MB Flash (program storage), 256KB RAM (data storage), supports microSD card expansion (up to 32GB)I/O Configuration: 16 digital inputs (24V DC, sink/source switchable), 8 digital outputs (relay output, 2A/250V AC), 4 analog inputs (4-20mA/0-10V), 2 analog outputs (4-20mA)Communication Interfaces: 2 RS-232 (for programming/debugging), 1 RS-485 (supports Modbus RTU master/slave mode), 1 Ethernet (10/100Mbps, supports Modbus TCP)Isolation Level: Isolation voltage ≥1500V DC (1min) between power supply and I/O circuits, isolation voltage ≥500V DC between analog channelsDiagnostic Functions: Supports power failure, memory error, communication interruption, and I/O channel short/open circuit diagnosis; fault information is synchronously output via indicators and communication ports
• Environmental ParametersOperating Temperature: -10°C to 60°C (non-condensing, no derating)Storage Temperature: -40°C to 85°CRelative Humidity: 5% to 95% (non-condensing, continuous operation for 168 hours at 90% humidity and 40°C without failure)Vibration Resistance: 10-500Hz frequency range, 0.5g acceleration (complies with IEC 60068-2-6 standard, 1 hour test for X/Y/Z axes each)Shock Resistance: 15g acceleration, 11ms duration (complies with IEC 60068-2-27 standard, half-sine shock waveform)Certification Standards: UL 508 industrial control equipment certification, CE (EMC and safety certification), CSA C22.2 No.14-19 certification
• Mechanical ParametersDimensions: 150mm (L) × 100mm (W) × 80mm (H) (including connectors)Weight: Approximately 0.8kgMounting Method: Standard 35mm DIN rail mounting (horizontal/vertical installation available)Housing Material: Flame-retardant reinforced ABS plastic (UL 94 V-0 grade, oil-resistant and resistant to weak acid and alkali corrosion)Indicators: Power (green steady on = normal), Operation (green blinking = working), Fault (red steady on = abnormal), Communication (yellow blinking = normal communication)

Product Performance

Fast logic processing speed: The 32-bit processor supports a ladder diagram execution speed of 0.1ms/kstep, enabling simultaneous operation of over 100 control loops to meet the real-time control needs of small-to-medium production lines. Rapid I/O response: Digital input response time ≤1ms, analog sampling cycle ≤10ms, ensuring real-time acquisition and control of process variables such as temperature and pressure.

Flexible expansion capability: Supports up to 8 expansion modules (including digital, analog, and special function modules), expandable to 128 digital I/O and 32 analog I/O, adapting to control scenarios of different scales. Comprehensive diagnostic coverage: Self-diagnostic functions can real-time monitor core hardware and I/O channel status, with fault location accuracy down to the channel level, reducing maintenance troubleshooting time.

High hardware stability: The fanless design reduces the risk of mechanical failures; industrial-grade components and wide-temperature design ensure a Mean Time Between Failures (MTBF) ≥1.5×10⁶ hours (MIL-HDBK-217F standard, 25℃ environment), enabling continuous and stable operation in dusty, vibrating, and other industrial scenarios. Strong software compatibility: Fully compatible with Reliance AutoMax programming software, supporting online programming, debugging, and firmware upgrades, with parameter updates completed without interrupting the system.
