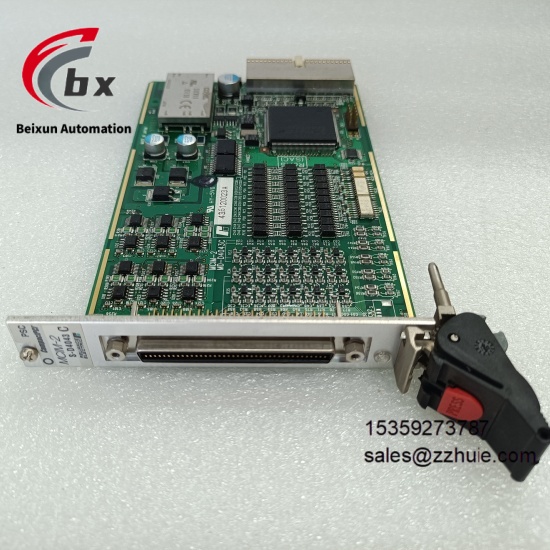

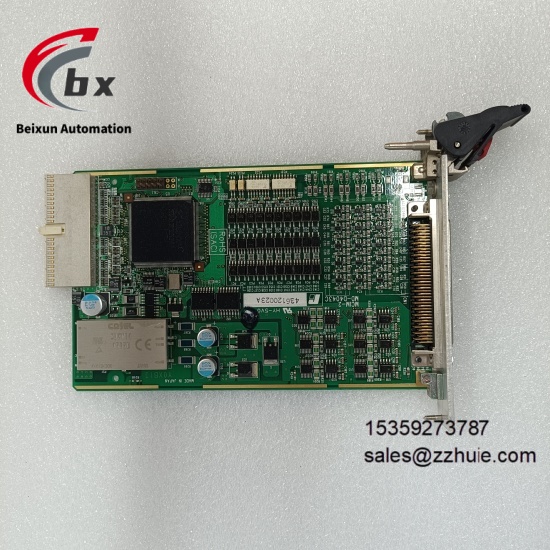

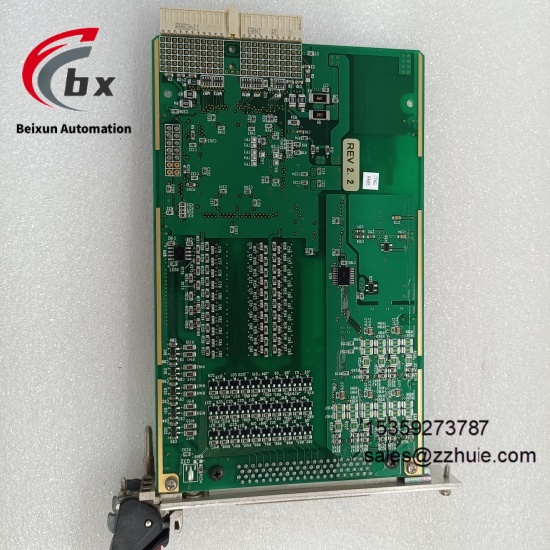

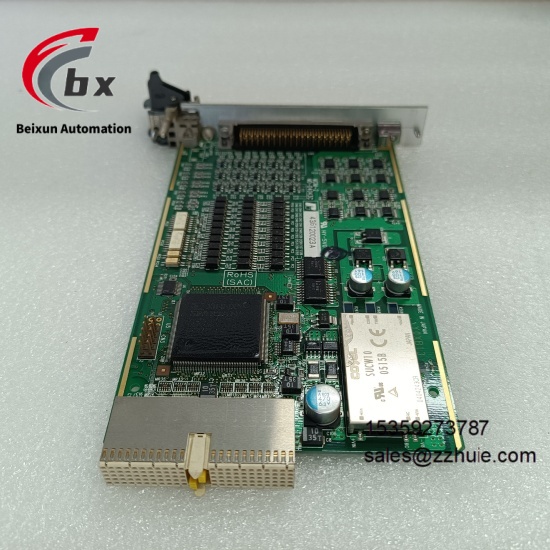

RELIANCE ELECTRIC S-D4043C Analog quantity adjustment module

Specific Parameters

Brand RELIANCE ELECTRIC (Reliance Electric, American Brand)

Product Series Reliance S-D Series Industrial Analog Regulation Module

Product Type Industrial-Grade Analog Regulation Module

Model S-D4043C

Supply Voltage 24VDC

Operating Temperature Range -20℃ to 60℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, no condensation

Protection Level IP20

Compatible System PLC/DCS Automation Control System

Installation Method 35mm DIN Rail Mounting

Physical Dimensions 120mm×80mm×60mm (Length×Width×Height)

Physical Weight 0.55kg

Interference Resistance Level Compliant with industrial EMC anti-interference standard

Certification Compliant with UL, CSA, CE industrial certifications

Isolation Method Input-output electrical isolation

Analog Input Range 0-10V DC, 4-20mA DC

Analog Output Range 0-10V DC, 4-20mA DC

Regulation Accuracy ±0.1%

Origin USA

Product Performance

Supports dual-range analog input and output, compatible with different types of sensors and actuators, meeting diverse control needs without additional conversion components.

±0.1% high-precision regulation feature, combined with built-in PID regulation algorithm, can achieve precise control of analog signals, ensuring the stability of industrial process control.

Input-output electrical isolation structure, combined with industrial-grade EMC anti-interference design, effectively isolates strong electrical interference and high-frequency signal interference, ensuring the accuracy of signal transmission and regulation.

Industrial-grade wide temperature resistance design can operate stably under extreme high and low temperature working conditions, adapting to the deployment of industrial sites in various environments such as high-temperature workshops and outdoor pump stations.

Deeply compatible with PLC/DCS systems and series modules, supporting modular expansion, it can be flexibly combined according to control needs, adapting to automation projects of different scales.

Rail-mounted installation combined with hot-swap function facilitates installation and disassembly, and can be maintained and replaced without stopping the system, greatly shortening operation and maintenance downtime.

Stable 24VDC power supply design adapts to voltage fluctuations in industrial sites, with reasonable power consumption control, balancing regulation performance and energy efficiency optimization, and extending equipment service life.

Adopting high-durability industrial materials, it has corrosion resistance and wear resistance, can resist dust and oil pollution in industrial sites, and has excellent reliability.
