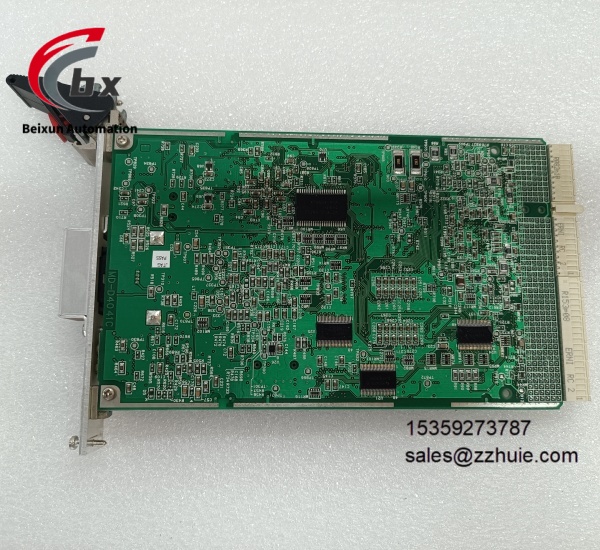

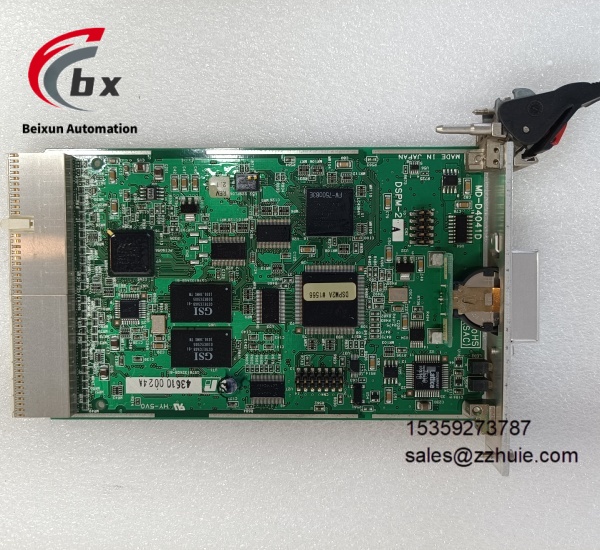

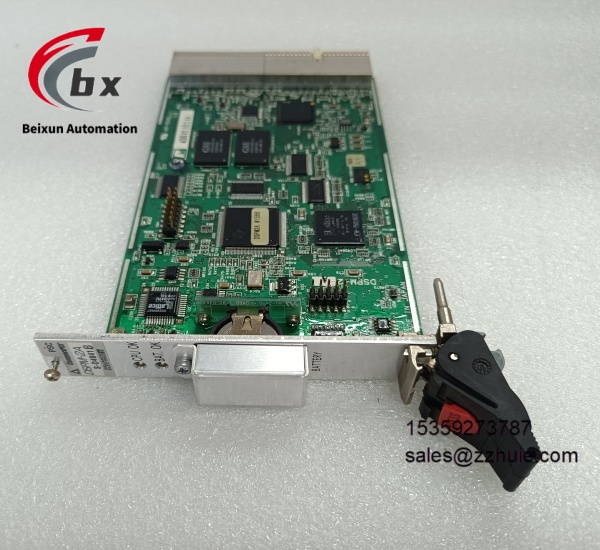

RELIANCE ELECTRIC S-D4041B Industrial grade DSP CPU module

Specific Parameters

Brand RELIANCE ELECTRIC (Reliance Electric, American Brand)

Product Series Reliance S-D Series Industrial DSP CPU Module

Product Type Industrial-Grade DSP CPU Module

Model S-D4041B

Core Architecture Dual-DSP Processor Architecture

Supply Voltage 24VDC

Operating Temperature Range -30℃ to 65℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, no condensation

Protection Level IP20

Compatible System PLC/DCS Automation Control System

Installation Method 35mm DIN Rail Mounting

Physical Dimensions 120mm×80mm×60mm (Length×Width×Height)

Physical Weight 0.6kg

Interference Resistance Level Compliant with industrial EMC anti-interference standard

Certification Compliant with UL, CSA industrial certifications

Isolation Method Input-output-power triple electrical isolation

Origin USA

Quantity per Carton 5 units/carton

Product Performance

Supported by dual-DSP architecture, it has excellent operation speed and data processing capability, can quickly execute complex control logic and multi-task scheduling, meeting the real-time control needs of medium and large-scale automation systems.

Wide temperature resistance design of -30℃ to 65℃ can operate stably under extreme high and low temperature working conditions, adapting to the deployment of industrial sites in various environments such as high-temperature workshops and cold outdoor areas.

Input-output-power triple electrical isolation structure, combined with industrial-grade EMC anti-interference design, effectively isolates strong electrical interference and high-frequency signal interference, ensuring the accuracy of operation and command issuance.

Seamlessly compatible with series I/O modules and isolation amplifier modules, supporting modular system expansion, the number of peripheral modules can be flexibly increased or decreased according to control needs, adapting to projects of different scales.

Rail-mounted installation combined with hot-swap function facilitates installation and disassembly, and can be maintained and replaced without stopping the system, greatly shortening operation and maintenance downtime and improving production continuity.

Stable 24VDC power supply design adapts to voltage fluctuations in industrial sites, with reasonable power consumption control, balancing high computing performance and energy efficiency optimization, and extending equipment service life.

Adopting high-durability industrial materials, it has corrosion resistance and wear resistance, can resist dust and oil pollution in industrial sites, and has excellent Mean Time Between Failures performance.

Built-in complete self-diagnosis function can real-time monitor module hardware status and communication link stability, and fault information is fed back in a timely manner, simplifying operation and maintenance troubleshooting processes.
