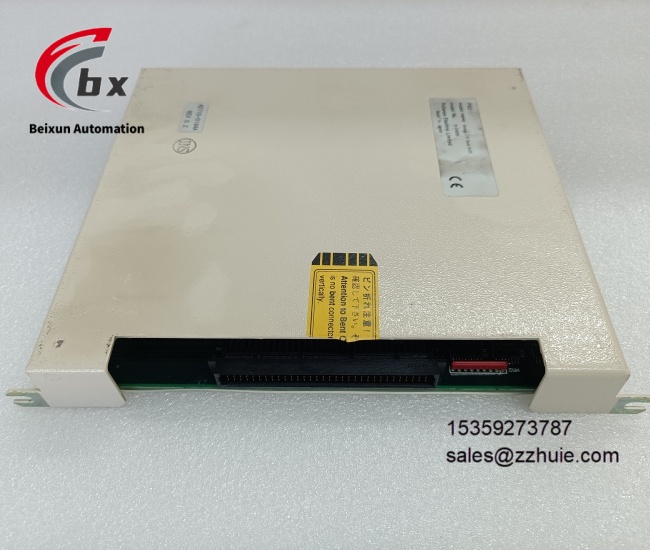

RELIANCE ELECTRIC S-D4008 Isolation amplification module

Specific Parameters

Brand RELIANCE ELECTRIC (Reliance Electric, American Brand)

Product Series Reliance S-D Series Industrial Isolation Amplifier Module

Product Type Industrial-Grade Isolation Amplifier Module

Model S-D4008

Supply Voltage 24VDC

Operating Temperature Range -20℃ to 60℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, no condensation

Protection Level IP20

Compatible System PLC/DCS Automation Control System

Installation Method DIN Rail Mounting

Physical Dimensions 120mm×80mm×60mm (Length×Width×Height)

Physical Weight 0.5kg

Interference Resistance Level Compliant with industrial EMC anti-interference standard

Certification Compliant with UL, CSA industrial certifications

Isolation Method Input-output electrical isolation

Amplifier Accuracy ±0.1%

Interface Configuration Ethernet LAN 15-pin socket, SCSI 68-pin socket

Origin USA

Product Performance

Industrial-grade wide temperature resistance design can operate stably under extreme high and low temperature working conditions, adapting to signal processing needs of industrial sites in multiple regions and environments.

Input-output electrical isolation structure combined with strong electromagnetic interference resistance can effectively isolate strong electrical interference and high-frequency signal interference in industrial sites, ensuring the accuracy of signal amplification and transmission.

±0.1% high-precision amplification feature can accurately amplify and filter weak analog signals, outputting standard signals for stable collection by control systems.

Equipped with dual Ethernet and SCSI interfaces, it supports seamless connection with different types of industrial control equipment, adapting to the signal transmission architecture of complex automation systems.

Rail-mounted installation combined with lightweight structure facilitates installation and disassembly, supports hot-swap maintenance, greatly shortens system shutdown maintenance time and improves operation efficiency.

Stable 24VDC power supply design adapts to voltage fluctuations in industrial sites, with reasonable power consumption control, balancing equipment operation stability and energy efficiency optimization needs.

Adopting high-durability industrial materials, it has corrosion resistance and wear resistance, extending module service life and reducing later operation and maintenance replacement costs.

Modular design supports system expansion, and the number of modules can be increased or decreased according to signal processing needs, flexibly adapting to automation control scenarios of different scales.
