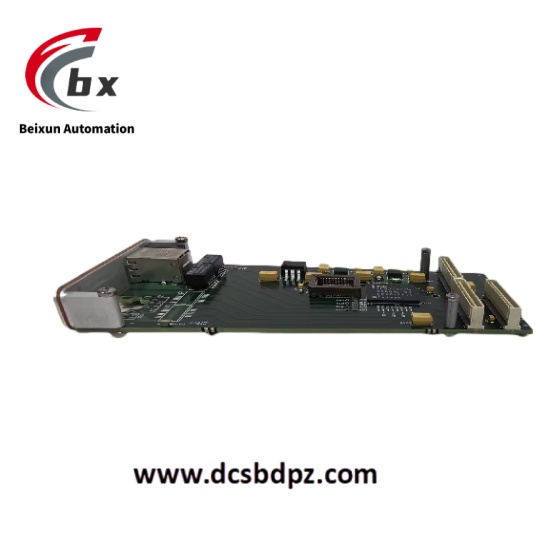

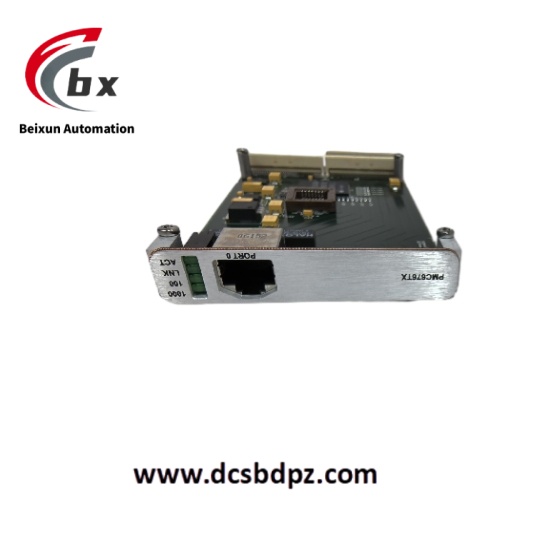

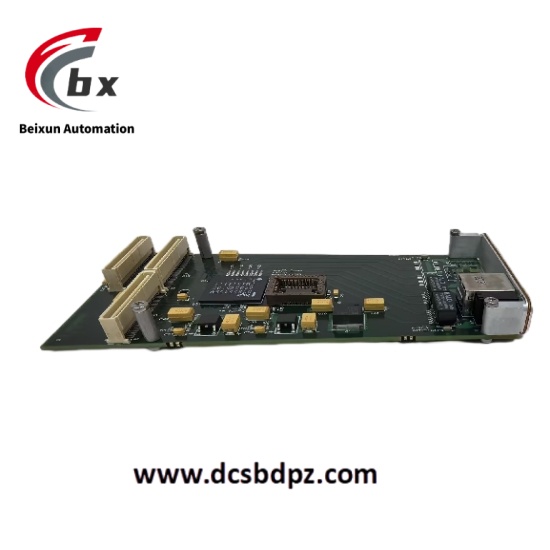

RAMIX PMC676TX Ethernet Switch Module

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC (±20%), supports 12V DC/48V DC wide-voltage customization
Power Consumption: ≤15W under normal operation, ≤20W at maximum load
Interface Type: 6×10/100/1000Base-T Gigabit electrical ports (RJ45), 1×Console configuration port (RS232)
Transmission Rate: 10Mbps/100Mbps/1000Mbps auto-negotiation
Switching Capacity: 12Gbps
Packet Forwarding Rate: 8.9Mpps
Redundancy Function: Supports dual power supply redundant input, automatic switching time ≤10ms
Environmental Parameters
Operating Temperature: -40°C to 75°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
Vibration Resistance: 10-500Hz, 15g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 50g acceleration, 11ms duration (compliant with IEC 60068-2-27)
EMC Standard: Compliant with EN 61000-6-2 (industrial environment immunity), EN 61000-6-4 (industrial environment emission)
Mechanical & Functional Parameters
Dimensions: 44mm (W) × 130mm (H) × 180mm (D)
Weight: Approximately 500g
Mounting Method: 35mm standard DIN rail (compliant with EN 60715)
Protection Class: IP30 (module itself)
Network Functions: Supports 802.1Q VLAN, 802.3ad link aggregation, 802.1p QoS, STP/RSTP/MSTP spanning tree protocol
Management Mode: Web browser configuration, SNMP v1/v2c/v3, CLI command line

Product Performance

PMC676TX adopts industrial-grade switch chip and shielded circuit design, maintaining stable operation in the wide temperature range of -40°C to 75°C, meeting the needs of extreme industrial environments. The dual power supply redundant input design ensures uninterrupted switching during power supply interruption, with system availability ≥99.99%.

Gigabit electrical ports support adaptive rate and full-duplex/half-duplex modes, with 12Gbps switching capacity and 8.9Mpps packet forwarding rate, achieving low-latency (≤5μs) data transmission to meet industrial control real-time communication requirements. VLAN and QoS functions can divide network partitions and prioritize key business data scheduling to avoid network congestion.

EMC performance complies with industrial standards, resisting strong electromagnetic interference and pulse impact; the metal housing has electromagnetic shielding capability with common mode rejection ratio ≥100dB. It supports remote network management and fault diagnosis, with Mean Time Between Failures (MTBF) ≥200,000 hours and low maintenance cost.
