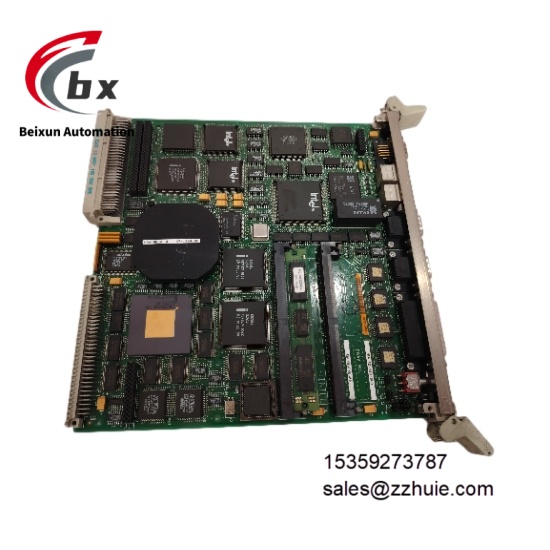

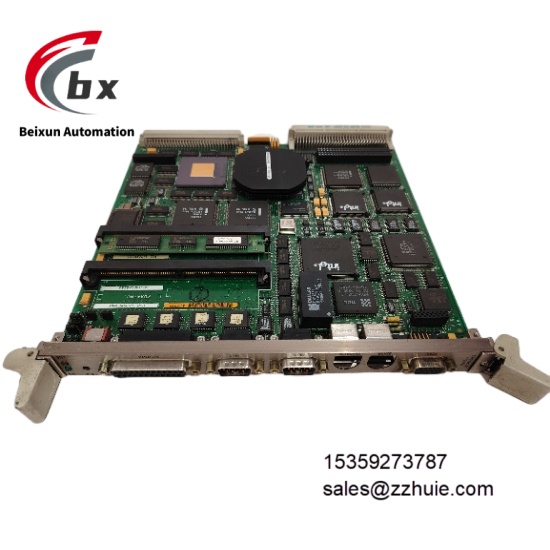

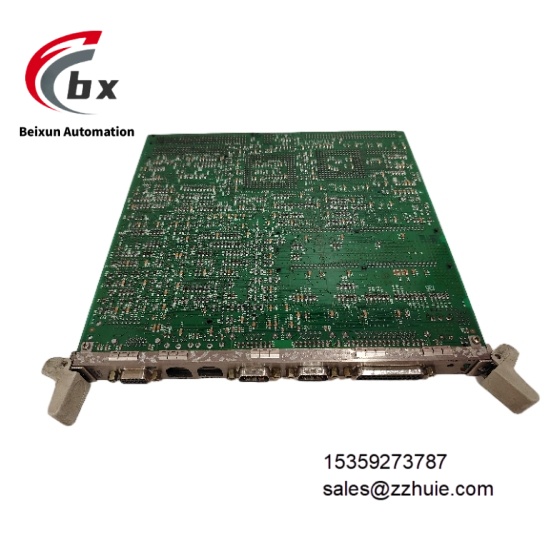

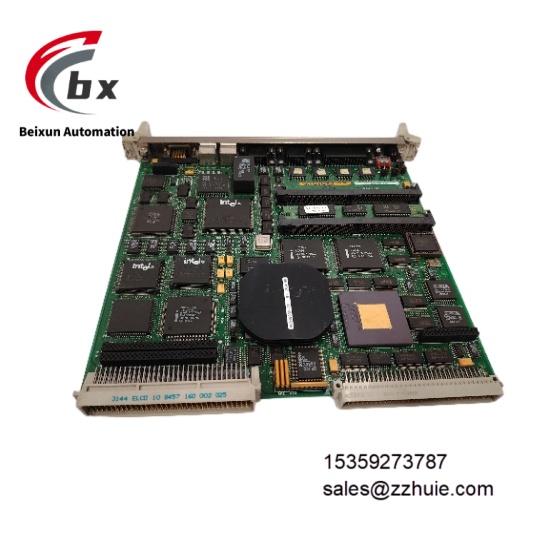

RADISYS SBC486DX66 Embedded single board computer

Specific Parameters

Electrical Parameters
Processor Architecture: Based on Intel 486 DX architecture, with built-in 8KB L1 cache
Clock Speed: 66MHz, bus frequency 33MHz (2x multiplier)
Memory Support: Up to 64MB EDO DRAM, expandable via SIMM slots
Storage Interface: Supports IDE hard disk interface, 3.5-inch floppy disk drive interface
I/O Interfaces: 2 RS-232 serial ports, 1 parallel printer port, PS/2 keyboard and mouse interfaces
Display Interface: VGA graphics output, supporting up to 1024×768 resolution
Bus Type: ISA bus (16-bit), supporting industrial I/O expansion cards
Power Supply: +5V DC ±5%, +12V DC ±10%, dual-channel power supply
Power Consumption: ≤15W under normal operation, ≤5W in standby mode
Environmental Parameters
Operating Temperature: -20°C to 60°C, continuous operation without condensation
Storage Temperature: -40°C to 85°C
Relative Humidity: 10% to 95% (non-condensing)
EMC Immunity: Complies with EN 55022 Class A standard, ESD protection ±8kV contact discharge
Vibration Resistance: 5-150Hz, 1g acceleration (IEC 60068-2-6 standard)
Shock Resistance: 15g acceleration, 11ms duration (IEC 60068-2-27 standard)
Protection Class: IP20 (board-level protection, requiring industrial cabinet for use)
Mechanical Parameters
Dimensions: 146mm (L) × 102mm (W) × 30mm (H), compatible with standard ISA bus slots
Mounting Method: Board-type mounting, compatible with industrial standard 19-inch cabinets
Interface Type: Pin-type interface (power), DB9/DB25 interfaces (serial/parallel ports), VGA DB15 interface
Housing Material: Flame-retardant epoxy resin substrate (UL 94 V-0 grade)
Weight: Approximately 450g
Indicators: Power (PWR, green), hard disk activity (HD, red), system running (RUN, yellow)

Product Performance

Adopting Intel 486 DX66 processor with computing speed up to 33 MIPS, it has a built-in floating-point unit that can efficiently handle mathematical operations and logical judgment tasks in industrial control. The 8KB L1 cache reduces data access latency, and with up to 64MB memory, it supports multi-task program operation with system response time ≤10ms.

The ISA bus expansion capability supports connecting industrial I/O modules, data acquisition cards and other peripherals, adapting to industrial equipment such as temperature sensors and PLCs. The fanless design reduces mechanical failure points, maintaining stable performance in a wide temperature range of -20°C to 60°C, meeting the harsh operating requirements of industrial sites.

Compatible with early operating systems such as DOS 6.22, Windows 95 and OS/2, it supports assembly language and C language development tools commonly used in the industrial control field, enabling rapid deployment of embedded control programs. The mean time between failures (MTBF) is ≥500,000 hours, complying with industrial-grade long-life operation standards.
