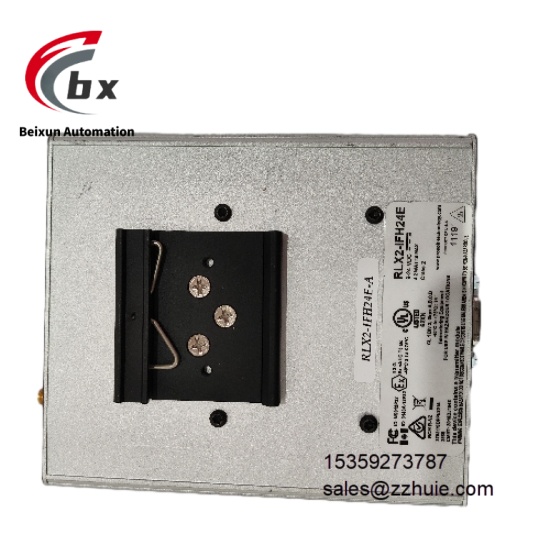

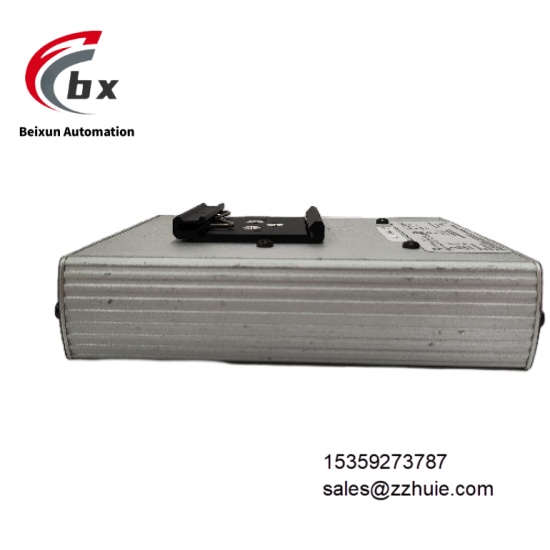

Prosoft RLX2-IFH24E Embedded single board computer

Specific Parameters

Electrical Parameters
Wireless Frequency: 2.400 to 2.4835 GHz international license-free band
Transmission Power: FCC version 100mW to 1W programmable, ETSI version 10mW to 100mW programmable
Data Rate: 1.1Mbps or 345kbps programmable
Receiver Sensitivity: -97dBm @ 10⁻⁶ BER (1.1Mbps), -104dBm @ 10⁻⁶ BER (345kbps)
Communication Protocol: Supports IEEE 802.3, 802.3u, 802.3x Ethernet protocols

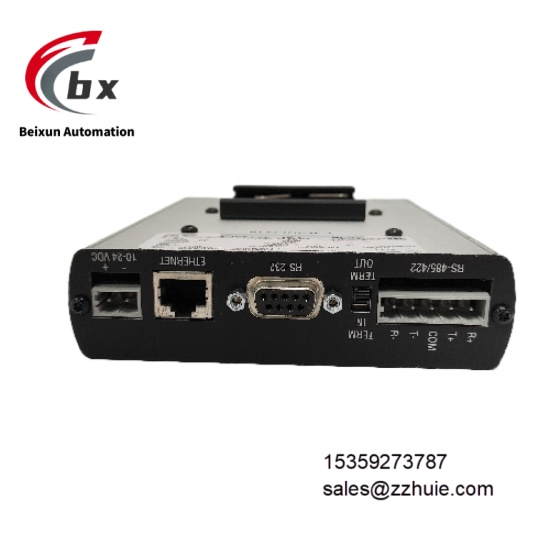

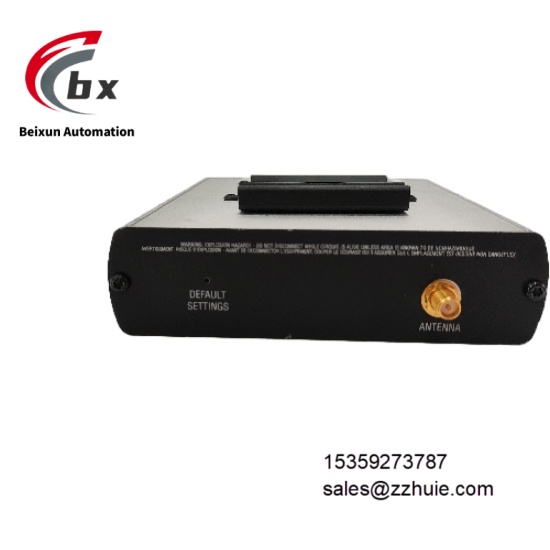

Interface Configuration: 10/100 Base-T shielded RJ45 Ethernet port, RS-232/RS-422/RS-485 serial port (DB9 interface), 1 RP-SMA antenna port
Serial Rate: 300bps to 230kbps, supporting serial tunneling and TCP/UDP encapsulation
Power Supply: 9 to 24V DC
Power Consumption: Maximum 4.2W
Security: 128-bit AES encryption, 32-bit CRC error detection, ARQ automatic retransmission mechanism
Environmental Parameters
Operating Temperature: -40°C to +75°C
Storage Temperature: Not explicitly specified (complies with industrial general standard -40°C to +85°C)
Relative Humidity: Up to 95%, non-condensing
Vibration Resistance: Complies with IEC 60068-2-6 standard, 5g@10-150Hz
Shock Resistance: 20g@11ms (3 axes) during operation, 30g@11ms (3 axes) non-operation
Certification Standard: ATEX Zone 2, cULus Class 1 Div 2, FCC/IC, CB Safety (IEC 60950-1)
Mechanical Parameters
Dimensions: 14.7cm×11.8cm×3.8cm (H×W×D)
Mounting Method: Panel mounting, compatible with DIN rail
Housing Material: Die-cast aluminum housing
Weight: 369g (13oz)
Indicators: Not explicitly specified (including power, operation, signal quality and other status indicators)

Product Performance

Adopting proprietary frequency-hopping algorithm, it can avoid Wi-Fi scanning detection, with strong anti-interference ability, maintaining stable communication in complex industrial electromagnetic environments. The line-of-sight (LOS) transmission distance reaches 15+ miles, and it can meet long-distance industrial communication needs with high-gain directional antennas.

Supports point-to-point, point-to-multipoint and store-and-forward relay topologies, and intelligent Ethernet switching technology realizes virtual point-to-point communication and performance optimization. The integrated design of serial and Ethernet interfaces can simultaneously connect serial devices such as industrial sensors and PLCs, as well as Ethernet terminals, adapting to hybrid communication scenarios.

Graphical configuration and network monitoring are realized through ControlScape software, and OPC server supports HMI real-time diagnosis of RF network status, which can monitor parameters such as temperature and signal quality. Hazardous area certification ensures safe operation in flammable and explosive environments such as chemical industry and oil & gas, and the mean time between failures (MTBF) complies with industrial-grade long-life standards.
