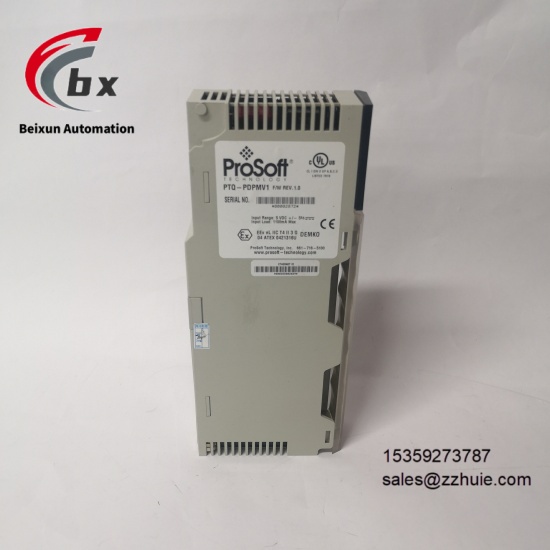

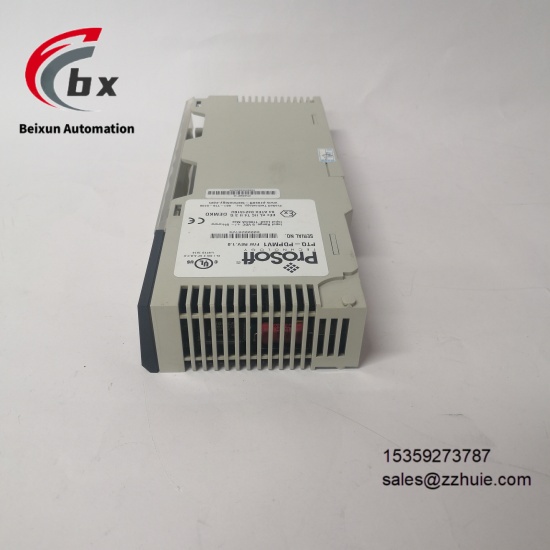

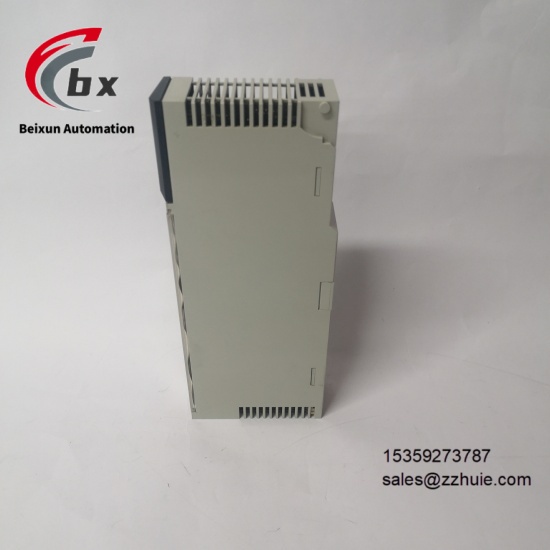

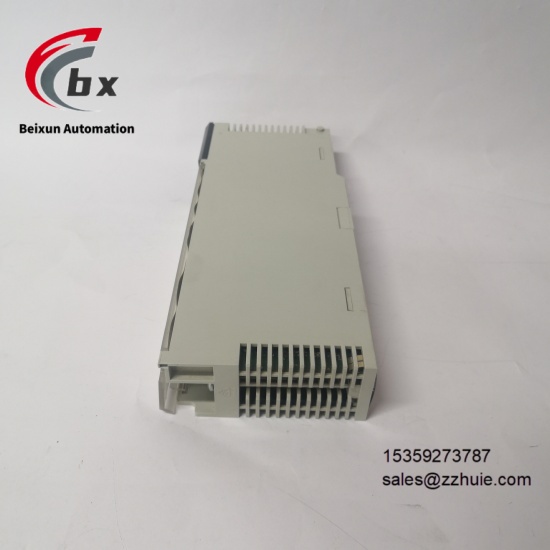

PROSOFT PTQ-PDPMV1 Industrial grade PROFIBUS DP master communication module

PROSOFT PTQ-PDPMV1 Industrial grade PROFIBUS DP master communication module

Specific Parameters​

Core and Function Parameters​

Module Type Industrial-grade PROFIBUS DP V1 Master Communication Module​

Series Prosoft ProLinx Series​

Compatible Platforms Rockwell ControlLogix, CompactLogix PLCs; Schneider Quantum PLCs​

Installation Type Single-slot rack integration​

Core Functions PROFIBUS DP network control, cross-protocol data exchange, device diagnosis​

Supported Protocols PROFIBUS DP V0/V1, EtherNet/IP, Modbus TCP​

Number of Slave Connections Up to 125 PROFIBUS DP slaves​

Single Slave I/O Capacity 244 bytes input, 244 bytes output​

Configuration Tool ProSoft Configuration Builder (PCB)​

Programming Environment Rockwell Studio 5000/RSLogix 5000​

Certification Standards CE, UL, cUL certifications​

Electrical and Communication Parameters​

Power Supply 24VDC; ControlLogix/CompactLogix backplane power supply​

Communication Interfaces PROFIBUS DP V1 master interface, EtherNet/IP interface​

Communication Rate 9.6kbps to 12Mbps​

Diagnostic Functions Network status monitoring, slave communication diagnosis, bus error identification​

Protection Mechanisms Overvoltage protection, overcurrent protection​

Status Indication Multi-color LED operation status indicators​

Environmental and Physical Parameters​

Operating Temperature Range -40°C to 85°C​

Storage Temperature Range -40°C to 85°C​

Relative Humidity 5% to 95% (non-condensing)​

Protection Class IP20​

Overall Dimensions 160mm×230mm×30mm​

Weight Approximately 0.5kg​

Structural Features Metal housing, anti-vibration and anti-electromagnetic interference design​

Product Performance​

Efficient protocol conversion, dual protocol stack support enabling seamless interconnection of heterogeneous systems eliminating communication barriers​

Strong expandability, single module managing 125 slaves meeting large-scale network deployment needs​

Real-time data transmission, 12Mbps high-speed communication combined with direct backplane connection controlling latency at millisecond level​

Convenient configuration and maintenance, visual tools integrated with PLC environment reducing debugging complexity​

Comprehensive diagnostic capabilities, real-time feedback of network status quickly locating slave faults and bus errors​

Strong environmental adaptability, wide temperature operating range and anti-interference design resisting extreme working conditions​

High operational reliability, multiple electrical protection and structural protection ensuring uninterrupted communication​

Excellent system compatibility, cross-brand PLC adaptation reducing hardware replacement costs​
