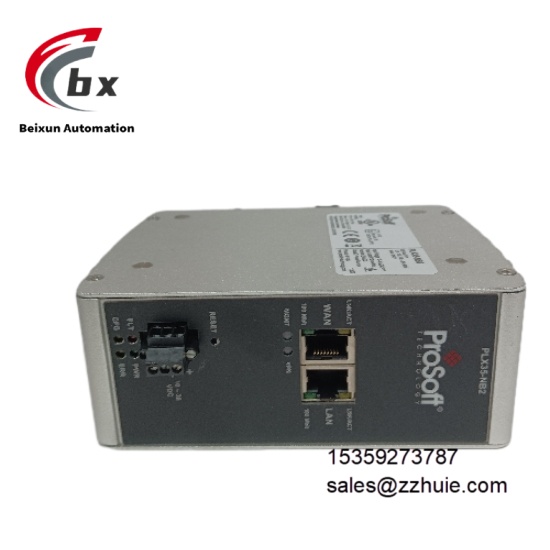

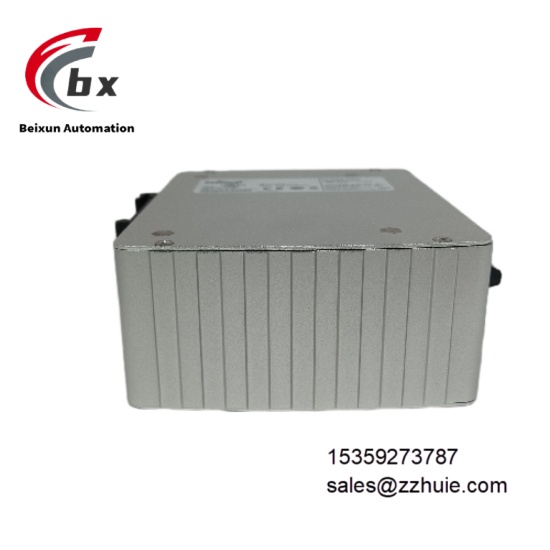

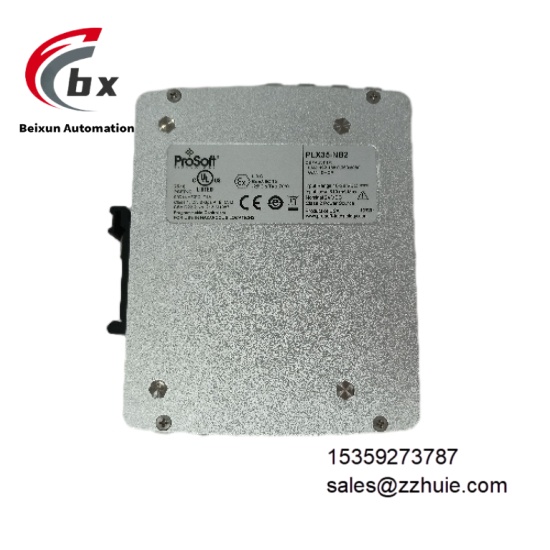

ProSoft PLX35-NB2 Network bridging and remote access device module

ProSoft PLX35-NB2 Network bridging and remote access device module

Specific Parameters

• Electrical ParametersCommunication Protocols: Supports EtherNet/IP, Modbus TCP, PROFINET protocolsCommunication Interfaces: 2 x 10/100 Base-T RJ45 Ethernet portsData Transfer Rate: Up to 100 Mbps for Ethernet portsSupported Services: CIP Data Table Read (0x4C), CIP Data Table Write (0x4D)Power Supply: Nominal 24 VDCStorage Expansion: Built-in SD card slot, maximum support for 32 GB SD cardElectrical Isolation: Ethernet ports with electrical isolation protectionTag Support: Supports 200 tags, minimum logging interval 50 ms
• Environmental ParametersOperating Temperature: -30°C to 70°C (non-condensing environment)Storage Temperature: -40°C to 85°CRelative Humidity: 5% to 95% (non-condensing)Vibration Resistance: Complies with IEC 60068-2-6 standard, 5 g acceleration in 10-150 Hz frequency rangeShock Resistance: Complies with IEC 60068-2-27 standard, 15 g acceleration (operational), 30 g acceleration (non-operational)Protection Rating: IP20
• Mechanical ParametersHousing Material: Extruded aluminum housing, compliant with IEC 60668-2-7 and IEC 60668-2-8 standardsMounting Method: DIN rail mountingIndicators: Module status, power, communication activity, fault alarm indicatorsConfiguration Method: Configurable via Belden Horizon platform, web server or dedicated configuration toolAdditional Functions: Integrated remote packet capture function (supported in firmware v1.6.60 and above)

Product Performance

Secure and efficient remote access: Integrates EasyBridge technology and multi-layer defense mechanisms, supports Active Directory single sign-on and token-based two-factor authentication, can establish encrypted connections without additional software, and data transmission security meets industrial standards. Stable and reliable protocol conversion: Multi-protocol parallel processing capability ensures delay-free data interaction between EtherNet/IP and Modbus TCP networks, with RPI time as low as 5 ms per connection, meeting real-time control requirements.

Strong system compatibility: Seamlessly adapts to Allen-Bradley full-series controllers including PLC-2, PLC-5, SLC, and ControlLogix, supports direct access via mainstream industrial control software such as Studio 5000, without modifying existing system programs. Outstanding operation and maintenance convenience: SD card enables configuration backup and recovery; web server supports trend variable viewing and data export; remote packet capture function can quickly locate network faults, with Mean Time To Repair (MTTR) ≤ 15 minutes.

Excellent environmental adaptability: Wide-temperature design, enhanced anti-vibration and anti-shock structure, combined with IP20 protection rating, enables continuous operation in dusty, humid and strong electromagnetic interference environments, with Mean Time Between Failures (MTBF) ≥ 1.0×10⁶ hours.
