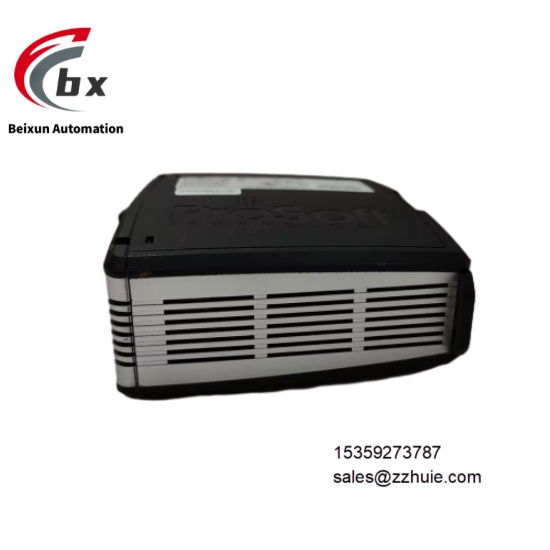

ProSoft PLX31-EIP-SIE Ethernet communication gateway module

ProSoft PLX31-EIP-SIE Ethernet communication gateway module

Specific Parameters

• Electrical ParametersCommunication Protocols: Supports EtherNet/IP protocol, Siemens Industrial Ethernet protocolData Transfer Rate: Up to 100 Mbps for Ethernet portConnection Capacity: 2 Class 1 I/O connections, 5 Class 3 server connections, 2 connected Class 3 clients, 1 unconnected Class 3 clientI/O Connection Specifications: Maximum RPI time 5 ms per connection, connection size 248/248 bytesSupported Services: CIP Data Table Read (0x4C), CIP Data Table Write (0x4D), compatible with PCCC and CIP message typesPower Supply: Nominal 24 VDC, allowable fluctuation range 10 VDC to 36 VDC, with positive, negative, GND terminalsCurrent Load: 300 mA at 24 VDC nominal, maximum 610 mA in 10-36 VDC rangeElectrical Isolation: 1500 Vrms isolation for Ethernet port (50-60 Hz for 60 seconds, compliant with IEC 60950:1991 standard)Communication Interface: 10/100 Base-T half-duplex RJ45 connector, supporting link/activity status monitoring
• Environmental ParametersOperating Temperature: -25°C to 70°C (non-condensing environment)Storage Temperature: -40°C to 80°CRelative Humidity: 5% to 95% (non-condensing)Vibration Resistance: Complies with IEC 60068-2-6 standard, 5 g acceleration in 10-150 Hz frequency rangeShock Resistance: 15 g acceleration/11 ms duration (operational), 30 g acceleration/18 ms duration (non-operational), 3-axis for both (complies with IEC 60068-2-27 standard)Anti-interference Capability: Withstands Ethernet broadcast storms (≤5000 ARP frames/sec, duration ≤5 minutes)
• Mechanical ParametersDimensions: 13.67mm (H) × 5.05mm (W) × 11.13mm (D)Weight: Approximately 1.5 kgMounting Method: Independent DIN rail mountingStorage Expansion: Built-in SD card slot (SD card optional), supporting configuration file storage and fault recoveryIndicators: Configuration (CFG), Error (ERR), Power (PWR), Hardware Fault (FLT), Network Status (NS), EtherNet/IP Connection Status, Module Status (MS) indicators

Product Performance

Strong data transmission real-time performance: Ethernet port rate up to 100 Mbps, minimum RPI settable to 5 ms, meeting high-frequency requirements for data synchronization in industrial control, with no obvious data delay fluctuation when load changes suddenly. Stable and reliable protocol conversion: Adopts high-performance processor to handle multi-protocol data interaction, supports data priority management, and can set different transmission strategies for status and control data to optimize bandwidth usage, with data transmission bit error rate below 1×10⁻⁹.

Excellent system compatibility: Seamlessly adapts to mainstream control systems of Rockwell and Siemens, with built-in EDS files and configuration tools, enabling integration without modifying existing equipment programs, reducing debugging time by more than 40%. Outstanding maintenance convenience: SD card enables quick configuration migration and fault recovery; multi-status indicators and diagnostic data feed back operating status in real time, with fault location accuracy reaching port level, and Mean Time To Repair (MTTR) ≤15 minutes.

Strong environmental adaptability: Wide-temperature design, enhanced anti-vibration and anti-shock structure, combined with electrical isolation technology, enables continuous operation in harsh environments with dust and electromagnetic interference, with Mean Time Between Failures (MTBF) ≥1.2×10⁶ hours.
