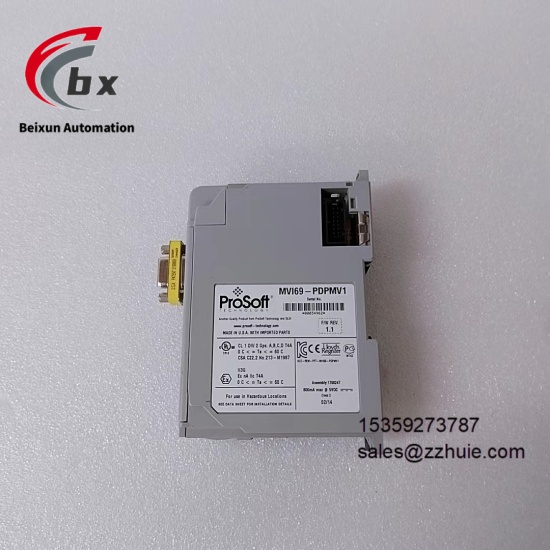

Prosoft MVI69-PDPMV1 Main station communication module

Prosoft MVI69-PDPMV1 Main station communication module

Specific Parameters

Brand Prosoft (Prosoft Technology Inc.), Product Series Prosoft MVI69 Series

Product Type Industrial-Grade PROFIBUS DP-V1 Master Communication Module, PLC Expansion Communication Module, Industrial Control Communication Component, Prosoft Original Spare Part

Model Prosoft MVI69-PDPMV1

Country of Origin The United States (Produced by Prosoft original factory, authorized and developed by Rockwell Automation)

Compatible Devices Rockwell CompactLogix L1/L2/L3/L4 Series PLC, MicroLogix 1500 LRP PLC, PROFIBUS DP Slave Devices, Inverters, Remote I/O, Valve Islands, Industrial Sensors, Actuators, Distributed Control Systems (DCS), Automated Production Line Equipment

Core Functions PROFIBUS DP-V1 Master Control, Protocol Conversion, Real-Time Data Interaction, Acyclic Communication, Slave Management, Network Diagnosis, Data Caching, PLC Backplane Data Exchange

Communication Protocols Supports PROFIBUS DP-V1 Protocol, Complies with IEC 61158 and EN 50170 Standards, Supports DP-V0 and DP-V1 Functions

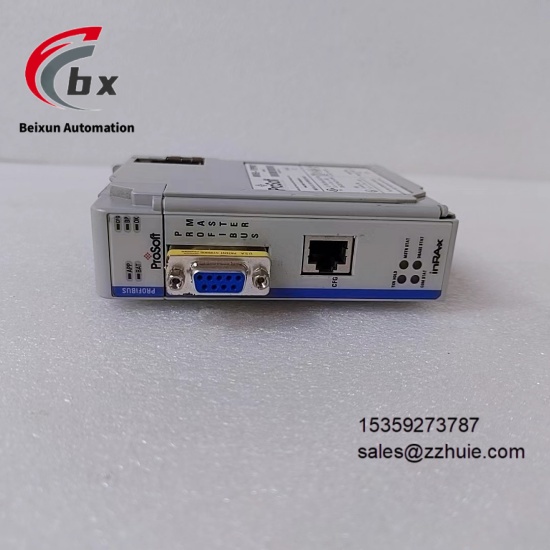

Communication Interfaces 1 9-pin D-sub (DB-9F) Optically Isolated RS-485 Interface, 1 RJ45 (DB-9M) CFG Configuration Port (RS-232 Only)

Data Transmission Rate Auto-detection, 9.6Kbps to 12Mbps, Up to 12Mbps

Maximum Number of Slaves Up to 125 Slaves (Depends on Data Volume, Expandable with Repeater)

Data Exchange Capacity Supports 1536 Cyclic Bytes Input and 1536 Bytes Output Data, Asynchronously Exchanges Data with CPU Through PLC Right Expansion Interface

Master Commands Supports DP-V1 Acyclic Communication for Parameterization and Diagnosis, Supports Synchronization and Freeze Commands, PROFIdrive 3.1 Parameter Reading and Writing

Configuration Method Supports Graphical Configuration, Debugging and Diagnosis via ProSoft Configuration Builder (PCB) Software, GSD File Importable

Power Supply Method Powered by PLC 1769 Backplane, No Independent Power Supply Required

Current Load Maximum 800mA @ 5VDC, Power Supply Distance Rating 2 (L43 and L45 Must Be Installed in the First 2 Slots of 1769 Bus)

Operating Temperature Range 0℃ to 60℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20 (Needs to Be Installed in the Cabinet)

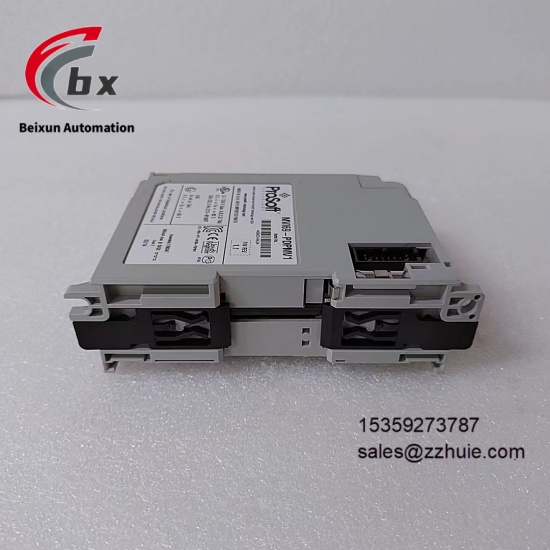

Physical Specification Standard 1769 Single-Slot Module

Physical Weight Approximately 0.25kg

Mounting Method 1769 Backplane Slot Mounting, Compatible with Rockwell Standard PLC Rack

Diagnostic Function Equipped with LED Indicators for Power, Module Status, Network Communication, Master Token Holding, etc., Supports Software Diagnostic Tools, Fault Information Uploadable

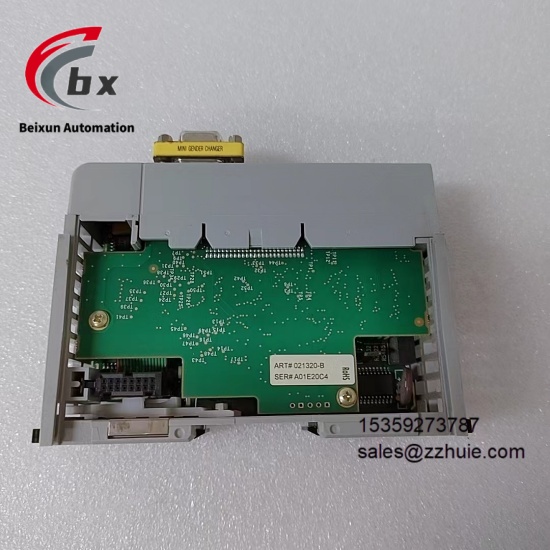

Product Material Industrial-Grade Reinforced Flame-Retardant Plastic Enclosure, High-Temperature Resistant Insulation Material, Built-in Optocoupler Isolation Components

Customizable No

Certification Standards Complies with CE, CSA, UL508, ATEX, DNV, GOST-R and Other Relevant Certification Standards

Warranty Period 36 Months (Prosoft Original Factory Warranty, Free Unlimited Technical Support Provided)

Product Performance

Prosoft MVI69-PDPMV1 is an original Prosoft device with extremely strong adaptability, specially designed for Rockwell CompactLogix and MicroLogix series PLCs, compatible with 1769 backplane, can be directly identified as a PLC input/output module, no additional adaptation components required, seamlessly integrated into Rockwell control systems, greatly reducing system integration complexity. The product has excellent communication performance, supports a maximum data transmission rate of 12Mbps, can realize real-time data interaction between PLC and PROFIBUS slave devices without obvious delay and packet loss, supports 125 slave management and 1536 bytes of input and output data transmission, meets the industrial control needs of multiple devices and multiple parameters, and supports DP-V1 acyclic communication to complete parameterization and diagnosis functions, compatible with various PROFIBUS DP slave devices. The product has outstanding reliability, adopts industrial-grade high-quality components and optical isolation design, has excellent anti-electromagnetic interference ability, can operate continuously and stably in a wide temperature environment of 0℃ to 60℃ and harsh working conditions such as dust and strong electromagnetic interference, has passed a number of international certifications, and the 3-year original factory warranty and free technical support further ensure the long-term reliable operation of the equipment. The modular slot design facilitates installation, maintenance and system expansion. Parameter setting, GSD file import and fault diagnosis can be quickly completed through special configuration software, with ladder logic sample files attached, reducing programming and operation and maintenance costs, and providing stable and efficient communication support for the efficient coordination of Rockwell PLC and PROFIBUS network.
