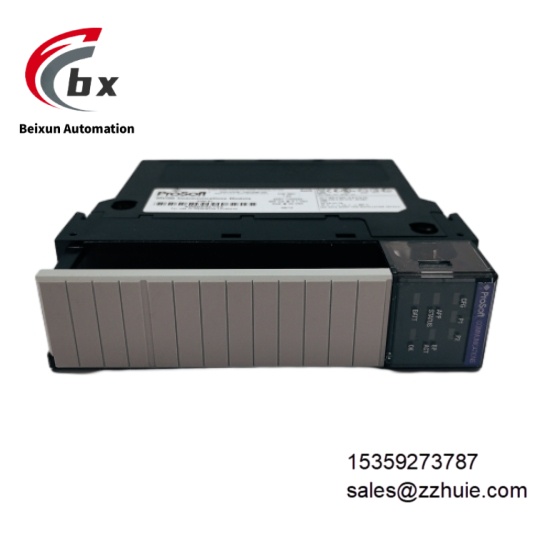

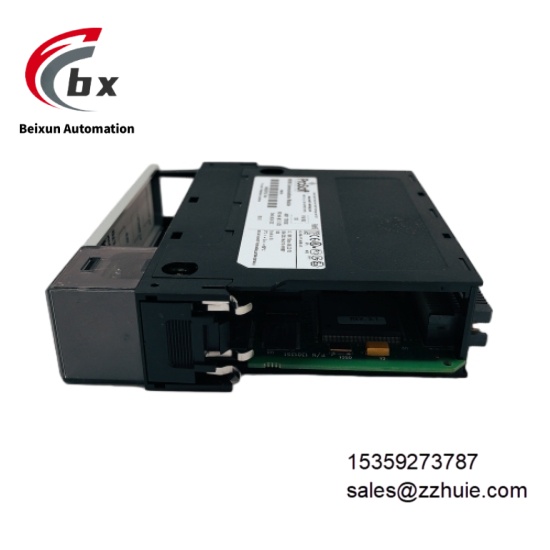

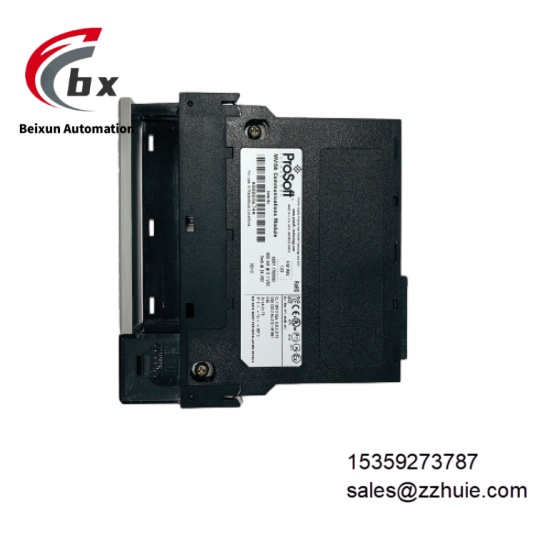

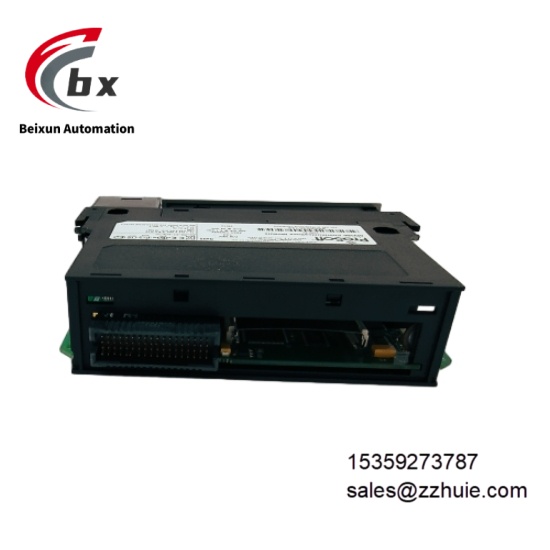

ProSoft MVI56-LTQ communication module

ProSoft MVI56-LTQ communication module

Specific Parameters

• Electrical ParametersCommunication Protocol: Natively supports Limitorque dedicated protocolCommunication Interfaces: RJ-45 Ethernet port, RS-232, RS-422, RS-485 serial portsBaud Rate: Adjustable from 110 bps to 115200 bpsData Bits: 5, 6, 7, 8 bits (selectable)Parity: None, odd, even (configurable)Stop Bits: 1 or 2 bits (selectable)Backplane Current Load: 800 mA @ 5 Vdc, 3 mA @ 24 VdcElectrical Isolation: 500 V isolation for serial ports, 1500 Vrms isolation for Ethernet port (50-60 Hz for 60 seconds)Data Interaction Mode: Supports asynchronous data transmission between ControlLogix processor and devices
• Environmental ParametersOperating Temperature: 0°C to 60°C (non-condensing environment)Storage Temperature: -40°C to 85°CRelative Humidity: 5% to 95% (non-condensing)Vibration Resistance: 5 g acceleration in 10 Hz to 150 Hz frequency range (complies with IEC 60068-2-6 standard)Shock Resistance: 30 g acceleration (operational), 50 g acceleration (non-operational)Certification Standards: Complies with safety and EMC standards for industrial communication equipment
• Mechanical ParametersDimensions: Compatible with ControlLogix single-slot module, approximately 94mm (L) × 94mm (W) × 69mm (H)Weight: Approximately 0.45 kgMounting Method: Single-slot mounting, compatible with ControlLogix 1756 series backplaneIndicators: Module status, backplane transmission status, communication activity status, fault alarm indicatorsConfiguration Interface: Supports online configuration and debugging via RS-232 port or Ethernet port

Product Performance

Accurate protocol adaptability: Natively supports Limitorque protocol, can directly establish communication with Limitorque valve actuators without a protocol conversion middle layer, with command response delay < 10 ms. Efficient data transmission: Adopts asynchronous transmission mechanism to realize asynchronous operation between ControlLogix processor and devices, without occupying the core computing power of the controller; a single module can stably manage up to 32 compatible devices.

Strong system integration: Seamlessly compatible with Rockwell Automation ControlLogix system, supports RSLogix 5000 software configuration, provides ladder logic samples and Add-On Instructions (AOI), enabling rapid deployment without modifying existing control system programs. Excellent environmental adaptability: Wide-temperature design, enhanced anti-vibration and anti-shock structure, combined with electrical isolation technology, enables continuous operation in dusty, humid and electromagnetic interference environments, with Mean Time Between Failures (MTBF) ≥ 1.0×10⁶ hours.

Comprehensive diagnostic capability: Multi-status indicators feed back module operation, communication and fault status in real time; built-in error code storage function enables quick location of port faults or protocol anomalies.
