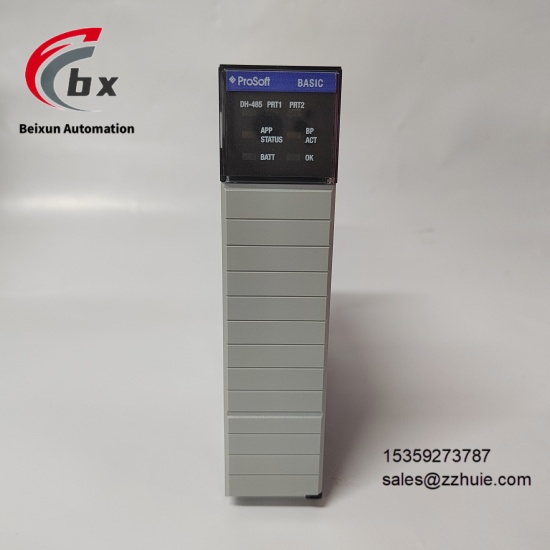

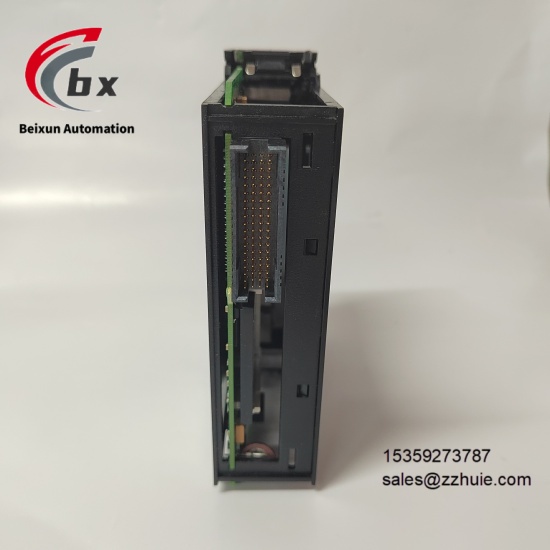

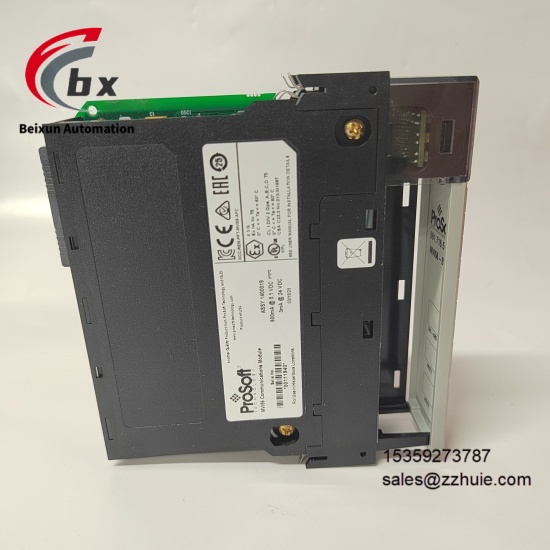

Prosoft MVI56-BAS Specialized communication module

Prosoft MVI56-BAS Specialized communication module

Specific Parameters​

Core and Function Parameters​

Module Type Industrial-grade dedicated communication module​

Series Prosoft MVI56 Series​

Compatible Platform ControlLogix System​

Installation Type Single-slot module (ControlLogix backplane integration)​

Core Functions Traditional BASIC program migration, multi-protocol conversion, data transmission​

Supported Protocols Bacnet MS/TP, Modbus RTU, Modbus ASCII, DF1, EtherNet/IP, Modbus TCP/IP​

Processor Model 68HC11​

Storage Capacity 24064 bytes RAM​

Local Log Capacity 10,000 Bacnet events​

Program Storage Supports CF card for BASIC program storage​

Data Transmission Method Ladder logic data transmission​

Certification Standard BTL (Bacnet Testing Laboratories) certification​

Electrical and Interface Parameters​

Power Supply Voltage 24VDC​

Communication Interfaces DH-485 interface, PRT1 port, PRT2 port, RS-232 serial port, RS-485 interface, ASCII interface​

Number of Serial Ports 2 RS-232 serial ports​

Data Transmission Latency Less than 50ms​

Status Indication 4 LED status indicators (module operation, backplane transmission, application, serial activity)​

Configuration Method PCB software-based configuration, web-based remote configuration​

Environmental and Physical Parameters​

Operating Temperature Range 0°C to 60°C​

Storage Temperature Range -40°C to 85°C​

Relative Humidity 5% to 95% (non-condensing)​

Overall Dimensions 4.88cm×14.73cm×14.48cm​

Weight Approximately 200 grams​

Product Performance​

Strong protocol compatibility, dual-protocol support covering multi-brand devices eliminating protocol mismatch issues​

Low migration cost, direct compatibility with traditional BASIC programs without custom driver development​

Low transmission latency, backplane direct connection design ensuring real-time data interaction with fast response speed​

High integration flexibility, single module replacing multiple devices saving rack space and hardware costs​

High data security, local log storage function ensuring no data loss during communication interruptions​

Convenient configuration and maintenance, supporting remote configuration and diagnosis with sample ladder logic files provided​

Strong environmental adaptability, wide temperature operating range and high humidity tolerance adapting to harsh industrial scenarios​

Excellent system compatibility, seamlessly connecting with ControlLogix platform and multi-brand automation equipment​
