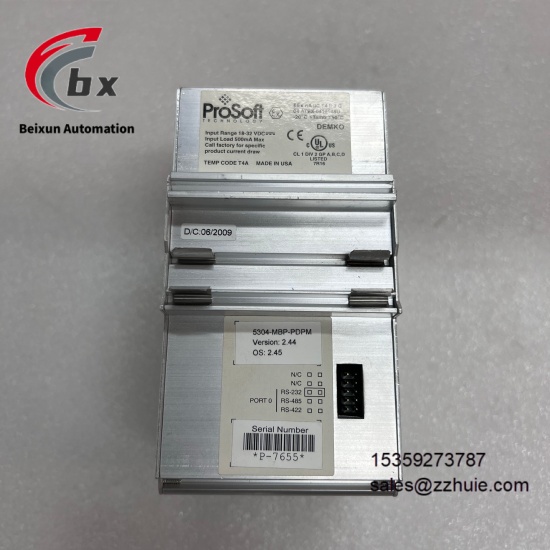

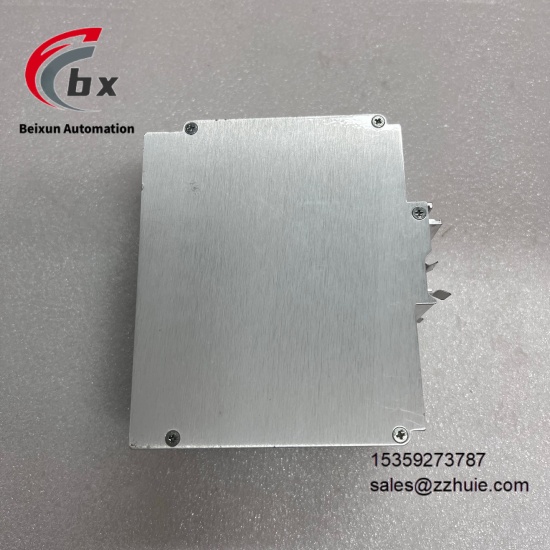

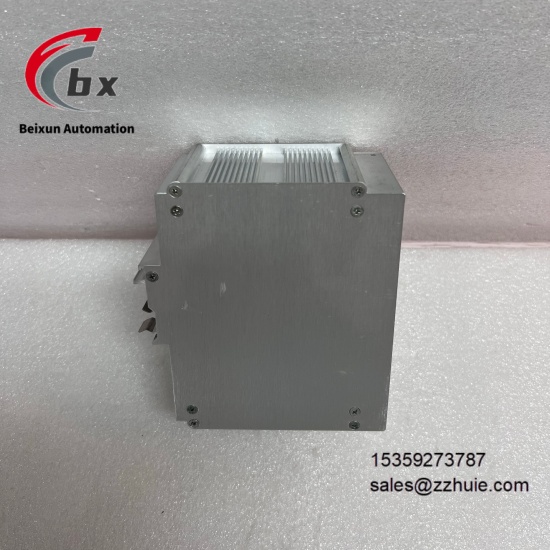

Prosoft 5304-MBP-PDPM gateway module
Specific Parameters
Brand Prosoft (Prosoft Technology Inc.), Product Series Prosoft Prolinx Series
Product Type Industrial-Grade Protocol Gateway Module, Communication Conversion Module, Industrial Control Communication Component, Prosoft Original Spare Part
Model Prosoft 5304-MBP-PDPM
Country of Origin The United States (Produced by Prosoft original factory)
Compatible Devices Modicon Processors, AB ControlLogix PLC, PROFIBUS DP Slave Devices, Modbus Plus Network Devices, Industrial Sensors, Actuators, Distributed Control Systems (DCS), Automated Production Line Equipment
Core Functions Modbus Plus and PROFIBUS DP Protocol Conversion, Data Interaction and Transmission, Modbus Plus Master-Slave Mode Switching, PROFIBUS DP Master Control, Network Diagnosis, Data Caching
Communication Protocols Supports Modbus Plus Protocol, PROFIBUS DP Protocol

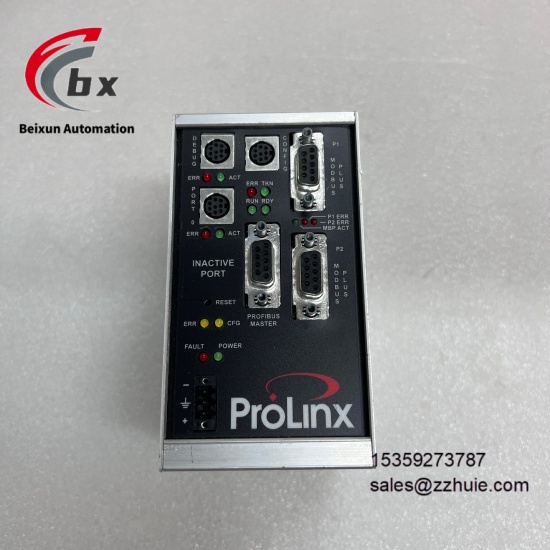

Communication Interfaces 1 Configurable Modbus Plus DB9F Port, 1 Configurable PROFIBUS DP Master DB9F Port
Data Transmission Rate Up to 12Mbps
Modbus Function Codes Supports Code 3 (Read Multiple Data Registers), Code 16 (Write Multiple Data Registers)
Address Scope 1 to 64
Master Command List Up to 200 Configurable Commands, Flexible Setting of Function, Slave Address, Register Address and Word Length
Processor 32-bit PowerPC Processor
Memory 128MB RAM, 256MB Flash
Power Supply Voltage 12VDC~24VDC, Rated Power Supply Voltage 24VDC
Power Consumption ≤5VA Under Rated Load
Operating Temperature Range -40℃ to 85℃
Storage Temperature Range -40℃ to 85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Class IP20 (Needs to Be Installed in the Cabinet)
Physical Dimensions 110mm×80mm×35mm
Physical Weight Approximately 0.3kg
Mounting Method Standard DIN Rail Mounting, Compatible with Standard Industrial Control Cabinets
Configuration Method Supports Configuration, Debugging and Diagnosis via Prosoft Configuration Builder (PCB) Software
Diagnostic Function Supports Network Communication Status Monitoring and Fault Self-Test, Diagnostic Data Can Be Viewed via Configuration Software
Product Material Industrial-Grade Reinforced Extruded Aluminum Enclosure, High-Temperature Resistant Insulation Material
Customizable No
Certification Standards Complies with IEC 61158, EMC Relevant Certification Standards
Warranty Period 36 Months (Prosoft Original Factory Warranty)
Product Performance
Prosoft 5304-MBP-PDPM is an original Prosoft device with extremely strong adaptability, which can seamlessly connect two mainstream industrial networks: Modbus Plus and PROFIBUS DP, compatible with industrial equipment of multiple brands such as Modicon and AB. It can realize heterogeneous network integration without replacing existing network equipment, greatly reducing system upgrade and integration costs. The product has excellent communication performance, with a maximum data transmission rate of 12Mbps, which can realize real-time data interaction without obvious delay and packet loss. It supports 200 configurable master commands, which can meet the data acquisition and control needs of multiple devices and multiple parameters. The protocol conversion is accurate and free of distortion, ensuring the consistency of data between the two networks. The product has outstanding reliability, adopts industrial-grade high-quality components and extruded aluminum enclosure, has excellent anti-electromagnetic interference and anti-vibration capabilities, and can operate continuously and stably in an extremely wide temperature environment of -40℃ to 85℃ and harsh working conditions such as dust and strong electromagnetic interference. The three-year warranty period further ensures the long-term reliable operation of the equipment. The modular stand-alone design facilitates installation, maintenance and system expansion. The standard DIN rail mounting method saves control cabinet space. Parameter setting and fault diagnosis can be quickly completed through special configuration software, greatly improving operation and maintenance efficiency, and providing stable and efficient support for heterogeneous network communication in industrial automation systems.
