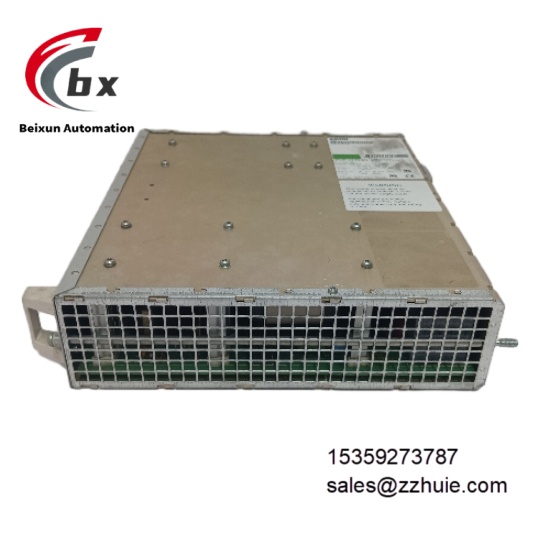

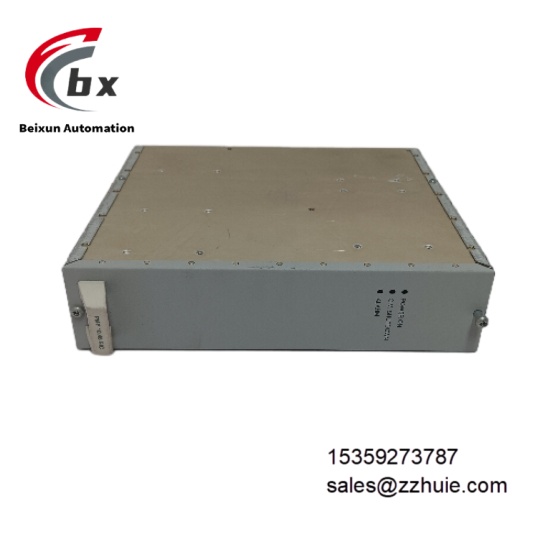

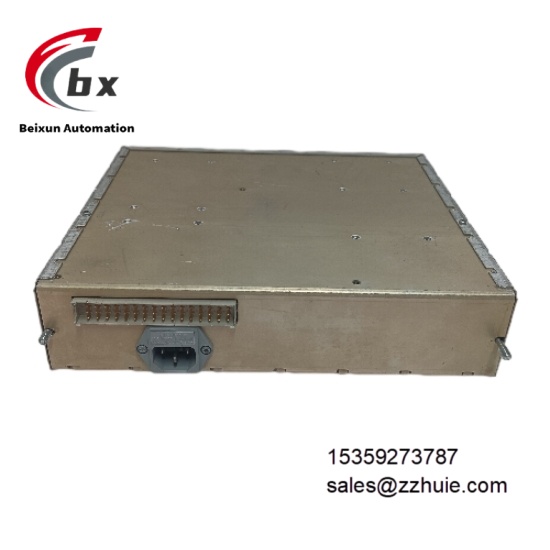

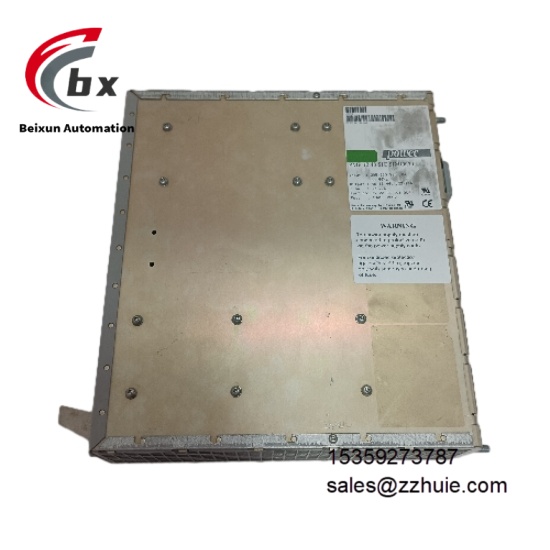

POWEC PMP10.48 SIC power module

POWEC PMP10.48 SIC power module

Specific Parameters

• Electrical ParametersInput Voltage: DC 36V to 75VOutput Voltage: Configurable DC 5V, 12V, 24V (single channel output)Rated Power: 10WConversion Efficiency: ≥90%Voltage Regulation: ±1% (within load and input voltage fluctuation range)Ripple and Noise: ≤150mVp-pProtection Functions: Overvoltage protection, overcurrent protection, short-circuit protection, overheating protectionElectrical Isolation: 1500Vrms isolation between input and output (complies with IEC standards)Certification Standards: CE certified
• Environmental ParametersOperating Temperature: -40℃ to 85℃ (non-condensing environment)Storage Temperature: -40℃ to 105℃Relative Humidity: 5% to 95% (non-condensing)Protection Rating: IP20 (module itself)Vibration Resistance: Complies with IEC 60068-2-6 standard, 1.5g acceleration in 10-500Hz frequency range
• Mechanical ParametersOverall Dimensions: 22.5mm (W) × 90mm (H) × 100mm (D) (DIN rail mounting specification)Housing Material: Metal alloy with anti-corrosion surface treatmentWeight: ≤150gMounting Method: Standard DIN rail mountingTerminal Type: Plug-in terminals, supporting wire diameter 0.5-1.5mm²Indicators: LED indicators for power, operation and fault status

Product Performance

Excellent energy conversion efficiency: Based on the low-loss characteristics of SiC power devices, the conversion efficiency is ≥90% under rated conditions, significantly reducing system energy consumption and heat dissipation burden. Stable voltage output: Voltage regulation ±1%, ripple and noise ≤150mVp-p, ensuring the operation accuracy of precision electronic equipment.

Extremely strong environmental adaptability: The wide temperature operating range of -40℃ to 85℃ covers extreme climates and industrial high-temperature scenarios; optimized thermal design can avoid high-temperature derating and ensure stable continuous output power. Comprehensive protection mechanisms: Real-time monitoring of abnormal states such as overvoltage and short circuit, triggering protection actions within 10ms and cutting off the output circuit to protect the safety of modules and load equipment.

Outstanding reliability: Adopting long-life components and high-temperature stability design of SiC devices, the Mean Time Between Failures (MTBF) is ≥1×10⁵ hours, reducing maintenance cycles and replacement costs. Wide system compatibility: Multi-gear output voltage can be adapted to different loads through configuration, and can be connected to the equipment power supply circuit without additional conversion modules.
