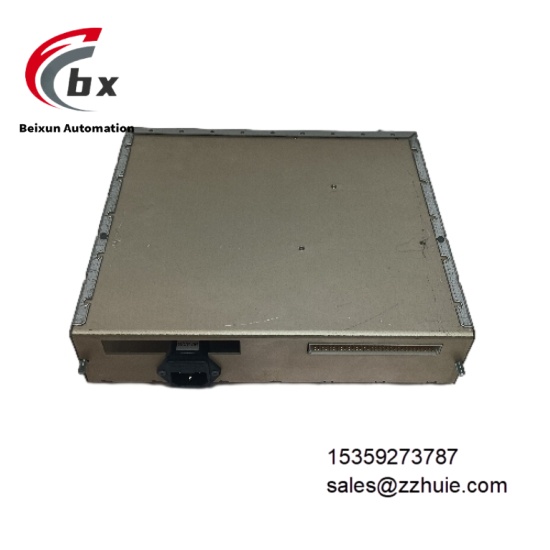

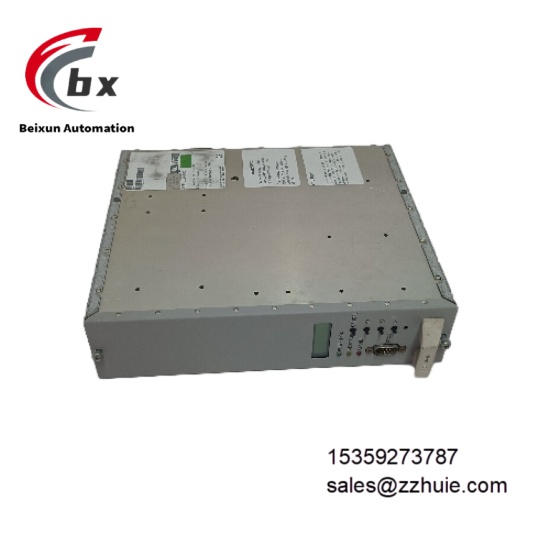

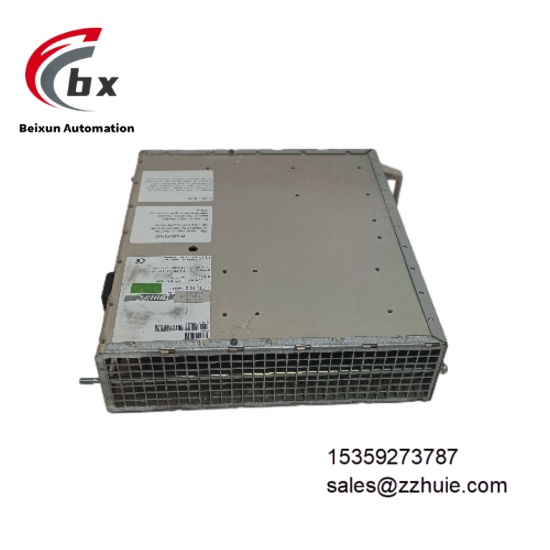

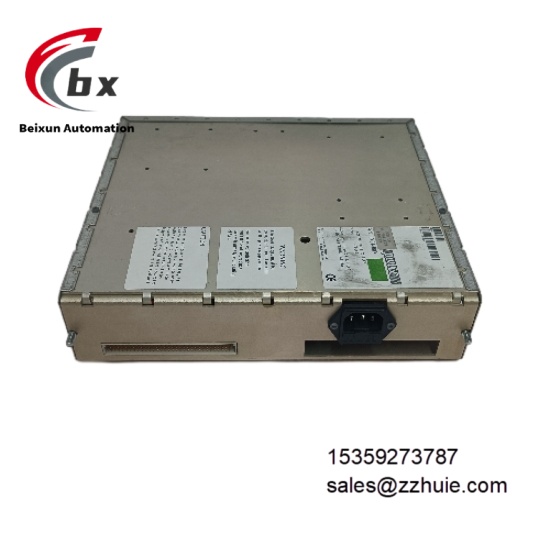

POWEC PCU10.24-48D Redundant power conversion module

POWEC PCU10.24-48D Redundant power conversion module

Specific Parameters

• Electrical ParametersInput Voltage: AC 85-264V, 47-63Hz; compatible with DC 120-370VOutput Voltage: Dual output of DC 24V and DC 48VRated Power: 10WVoltage Regulation: ±1% (within line loss and load variation range)Ripple and Noise: ≤150mVp-pConversion Efficiency: ≥90%Protection Functions: Overvoltage protection, overcurrent protection, short-circuit protection, overheating protectionElectrical Isolation: 1500Vrms isolation between input and output (complies with IEC standards)Communication Interface: Signal interface supporting linkage with power monitoring modules
• Environmental ParametersOperating Temperature: -40℃ to 85℃Storage Temperature: -40℃ to 105℃Relative Humidity: 5% to 95% (non-condensing)Protection Rating: IP20 (module itself)Vibration Resistance: Complies with IEC 60068-2-6 standard, 1.5g acceleration in 10-500Hz frequency rangeCertification Standards: CE certified
• Mechanical ParametersOverall Dimensions: 22.5mm (W) × 90mm (H) × 100mm (D) (DIN rail mounting specification)Housing Material: Metal alloy with anti-corrosion surface treatmentWeight: ≤150gMounting Method: Standard DIN rail mountingIndicators: LED indicators for power, operation and fault statusTerminal Type: Plug-in terminals, supporting wire diameter 0.5-1.5mm²

Product Performance

High power conversion efficiency: Conversion efficiency ≥90% under rated conditions, effectively reducing energy loss and heat dissipation requirements. Excellent voltage stability: Voltage regulation ±1%, ripple noise ≤150mVp-p, ensuring operation accuracy of load equipment.

Outstanding redundant reliability: Modular redundant architecture supports parallel connection of multiple modules, realizing uninterrupted switching power supply when single point failure occurs, ensuring power supply continuity of critical systems. Comprehensive protection mechanisms: Real-time monitoring of abnormal states such as overvoltage and overcurrent, triggering protection actions within 10ms to avoid damage to modules and loads.

Strong environmental adaptability: -40℃ to 85℃ wide temperature operating range combined with anti-vibration design, adapting to multiple scenarios such as industrial control rooms and communication machine rooms. Wide system compatibility: Can be directly connected to POWEC power monitoring modules and third-party DCS systems without additional adaptation equipment, reducing debugging cycle by more than 30%. Mean Time Between Failures (MTBF) ≥1×10⁵ hours, meeting long-cycle operation requirements.
