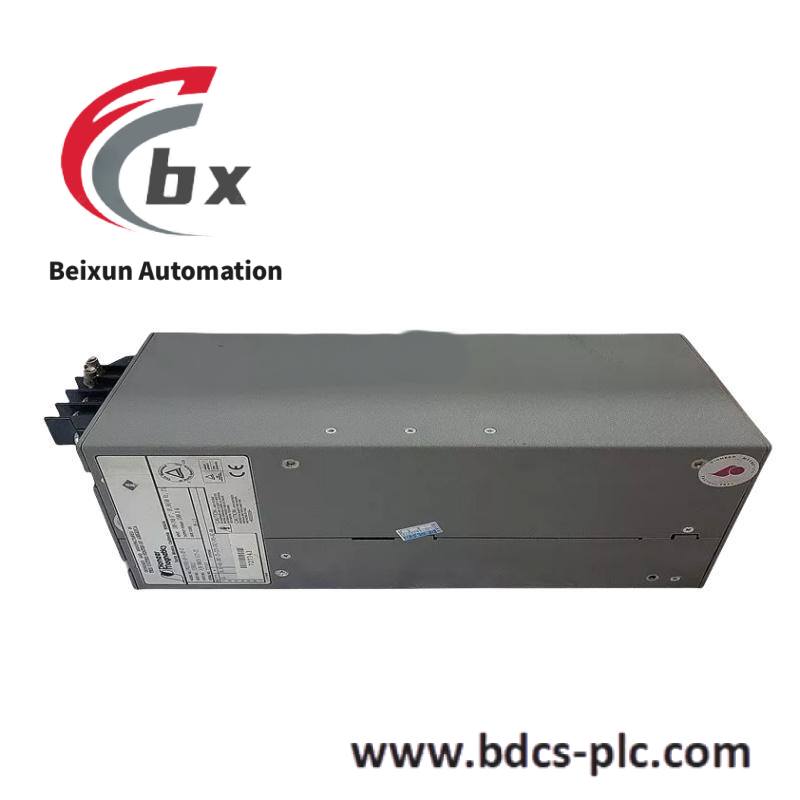

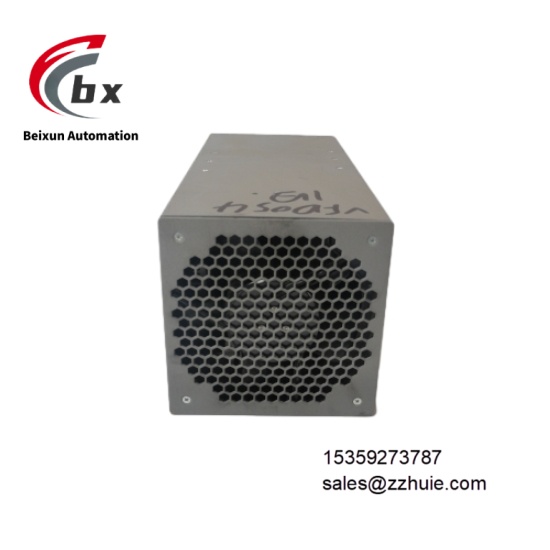

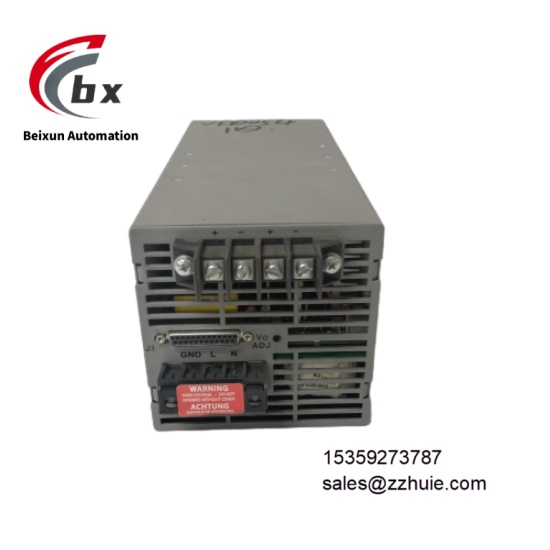

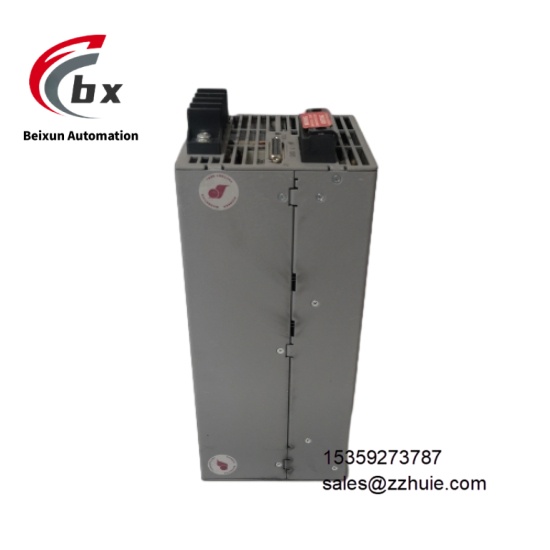

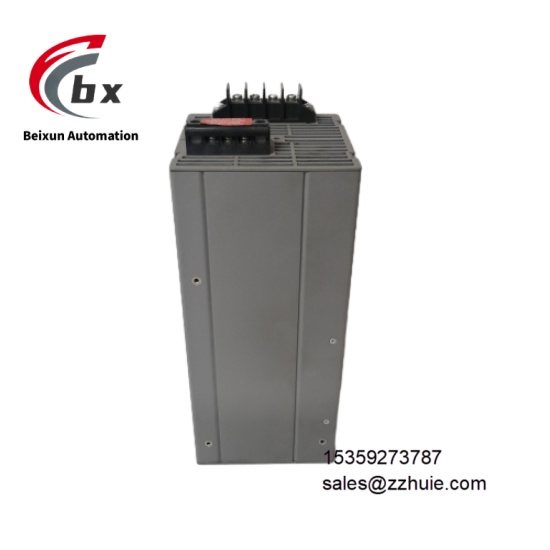

PIONEER MAGNETICS PM3398B-6-1-3-E 80026-172-24 Industrial power module
Specific Parameters
Electrical Parameters
Input Voltage Range: 100-240VAC 50/60Hz or 36-72VDCOutput Voltage: 56VDCOutput Current: 26.8AOutput Power: 1500.8WControl Mode: PWM (Pulse Width Modulation)Operating Frequency: 100kHzProtection Features: Overvoltage protection, overcurrent protection, overtemperature protection, thermal shutdown protectionCommunication Ports: Redundant Ethernet communication portsInsulation Resistance: ≥100MΩ between channels and between channels and power supply (measured at 500V DC, normal temperature and state)Voltage Withstand Strength: ≥2500V AC (1 minute no breakdown, leakage current ≤1mA)Certification Standards: Compliant with UL, CE, RoHS standards
Mechanical Parameters
Overall Dimensions: 140mm×100mm×60mmWeight: Approximately 1.2kgMounting Method: Rack-mounted, compatible with standard industrial cabinet deploymentHousing Material: High-strength industrial-grade material, anti-electromagnetic interferenceConnection Method: Plug-in terminal blocks, compatible with shielded twisted-pair cablesCooling Method: Internal forced air cooling + integrated heat sinkProtection Rating: IP20, suitable for industrial control cabinet environmentsStatus Indication: Power (green), operation (yellow), fault (red) LED indicators
Environmental Parameters
Operating Temperature: 0℃ to 50℃, full power operation without deratingStorage Temperature: -40℃ to 85℃, meeting extreme storage and transportation requirementsRelative Humidity: 5% to 95% (non-condensing), suitable for high-humidity industrial scenariosVibration Resistance: 3g acceleration at 3Hz-57Hz frequency range, 5g acceleration at 57Hz-500Hz frequency range (sine wave)Shock Resistance: 15g acceleration (half-sine wave, duration 11ms), withstanding installation and transportation shocksEMC Compliance: Meets international EMC standards
Product Performance
Excellent power density: 1500W output power integrated in a compact size, with power density up to 25.8 watts per cubic inchHigh conversion efficiency: Advanced PWM control technology ensures low energy loss and stable power supply efficiency under complex working conditionsStrong output stability: Precise voltage and current regulation, maintaining stable power supply even with load fluctuationsComprehensive protection mechanism: Multiple electrical protection functions prevent equipment damage due to abnormal working conditionsFlexible expansion: Supports parallel configuration, allowing total power supply to be expanded according to requirementsWide adaptability: Compatible with global voltage standards, meeting power supply needs of industrial equipment in different regionsHigh operational reliability: Industrial-grade materials and forced air cooling design, Mean Time Between Failures (MTBF) ≥300,000 hours
