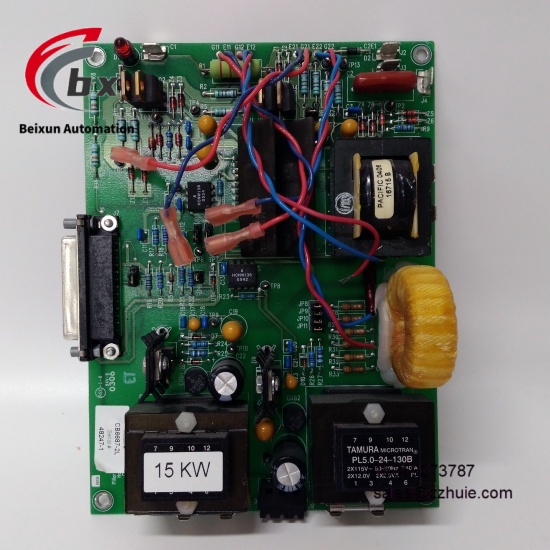

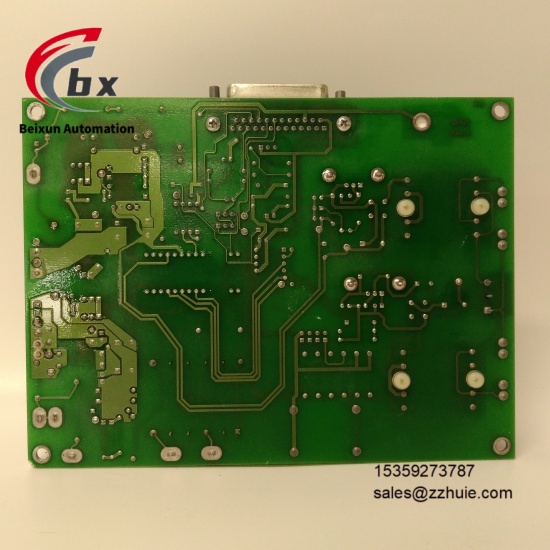

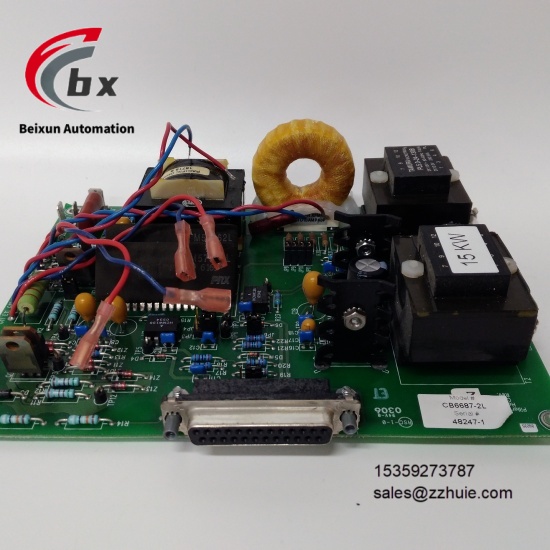

PILLAR CB6687-2L Single phase AC power module
Specific Parameters
Brand PILLAR (PILLAR POWER SYSTEMS)
Product Series CB Series
Product Type Single-Phase AC Power Supply Module, Industrial-Grade Power Supply Module

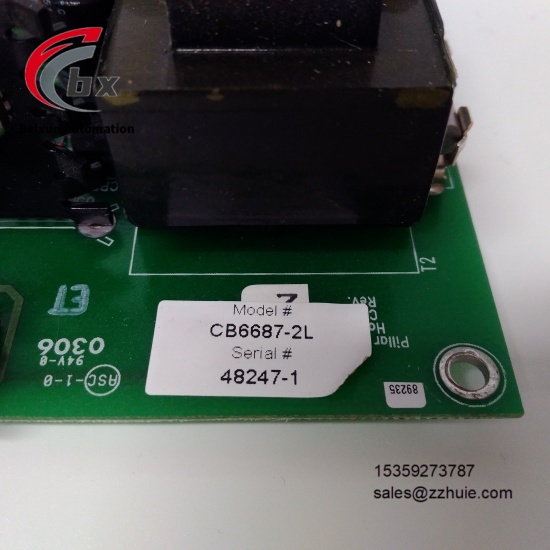

Model CB6687-2L
Country of Origin USA
Rated Power 2000W
Input Voltage 230VAC
Output Voltage 24VDC
Output Current 83.3A
Efficiency >90%
Mean Time Between Failures (MTBF) >100,000 Hours
Physical Dimensions 305mm×165mm×76mm
Physical Weight 5.4kg
Operating Temperature Range -20℃ to +50℃
Storage Temperature Range -40℃ to +85℃
Relative Humidity 5% to 95%, Non-Condensing
Protection Level IP65
Mounting Method DIN Rail Mounting, Screw Mounting
Core Functions Single-Phase AC to DC Power Supply, Stable Power Supply for Industrial Equipment
Certification Standards CE, RoHS, FCC
Warranty Period 12 Months
Product Performance
Manufactured with high-quality industrial-grade components, it has stable and reliable performance, with a mean time between failures of more than 100,000 hours, which can operate continuously for a long time without faults and greatly reduce equipment maintenance costs.
The conversion efficiency is as high as 90% or more, with low power loss, which meets the energy saving and consumption reduction needs of industrial equipment and improves the energy utilization rate of the overall power supply system.
The input voltage is 230VAC single-phase AC, which stably outputs 24VDC DC voltage and 83.3A current, with high power supply accuracy, and can directly provide stable power for various industrial control terminals, sensors and actuators.
The operating temperature range covers -20℃ to +50℃, and the storage temperature range reaches -40℃ to +85℃. It can operate stably for a long time in harsh industrial environments such as high and low temperatures and humidity without performance degradation.
With a protection level of IP65, it has good dustproof and waterproof performance, which can effectively resist the erosion of dust and water vapor in industrial fields, protect the internal components of the module, and extend the service life.
It supports both DIN rail mounting and screw mounting, which is convenient and flexible to install. It can be flexibly selected according to the installation space of the industrial site and adapts to different equipment installation scenarios.
It has excellent anti-electromagnetic interference performance, complies with industrial EMC standards, can resist the interference of complex electromagnetic environments in industrial fields, avoid power supply fluctuations, and ensure the normal operation of terminal equipment.
The output voltage is stable without obvious fluctuations, which can effectively protect the connected industrial equipment, avoid equipment damage caused by unstable voltage, and improve the overall stability of the industrial control system.
Certified by CE, RoHS and FCC, the product quality and safety performance meet global industrial power supply standards, and can be directly applied to various industrial scenarios without additional safety testing.
It has a reasonable structural design, compact size, occupies little installation space, and is easy to integrate into various industrial equipment and control systems, improving the convenience of system integration.
